Imagine a sudden power cut while you are running critical servers. The loss can shut down your business, corrupt data, and cost you time. The Eaton 5SC2200IRTBS 2.2 kVA Line-Interactive UPS, 1980 W, Sine Output is built to keep your equipment alive during those moments. It delivers clean, stable power and gives you enough run-time to save work and shut down safely.

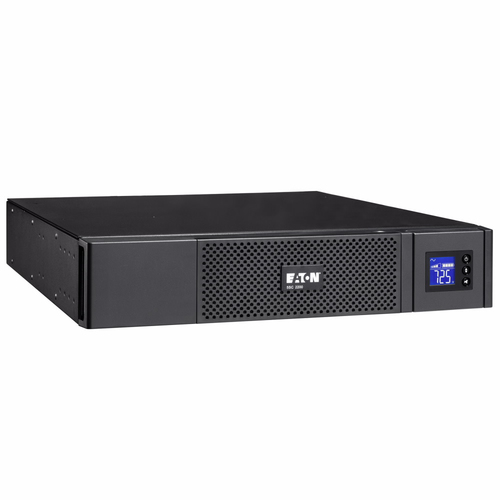

Eaton 5SC2200IRTBS 2.2 kVA Line-Interactive UPS, 1980 W, Sine Output
Power fluctuations, brownouts, and total outages are a daily risk for any network or edge device. When voltage drops or spikes, hardware can overheat, batteries can fail, and data can be lost. This UPS solves the problem by providing line-interactive regulation, a pure sine wave output, and automatic battery backup. It lets you keep servers, routers, and storage running long enough to avoid damage and keep customers happy.
Benefits
- Clean sine wave power protects sensitive electronics from distortion.
- Fast 2-minute full-load backup gives you time to shut down safely.
- High 97% efficiency reduces electricity cost while delivering 1980 W of power.
- Quiet 40 dB operation lets the unit sit in office spaces without distraction.
- LCD display and remote USB/RS-232 ports let you monitor status from anywhere.
Usages
The unit fits in a rack or can stand as a tower, making it ideal for server rooms, small data centers, and remote office closets. Use it to protect network switches, firewalls, storage arrays, and workstations. It also works well for point-of-sale systems, medical imaging equipment, and any critical device that cannot afford an unexpected shutdown.
Key Features
- 2.2 kVA (1980 W) line-interactive capacity.
- Pure sine wave output for sensitive loads.
- Input voltage range 184-276 V, output 220-240 V.
- Automatic battery test and 9 Ah sealed lead-acid battery.
- Supports up to four external batteries for extended runtime.
- One RS-232 serial port and one USB Type-A port for remote management.
- Nine AC outlets (C13 and C19 couplers) for flexible connections.
- LCD interface shows load, battery, and alarm status.
- Compact rackmount/tower design, 86.2 mm height, 26.9 kg weight.
- CE, UL, IEC certifications ensure safety and compliance.
Specifications
| Features |
| Power protection features |
Overdischarge |
| Noise level |
40 dB |
| Output power factor |
0.9 |
| Power factor |
0.9 |
| Efficiency |
97% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
45/65 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
184 V |
| Waveform |
Sine |
| Output power |
1980 W |
| Output power capacity |
2.2 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port type |
USB Type-A |
| USB port |
Yes |
| AC outlets quantity |
9 AC outlet(s) |
| Power plug |
C20 coupler |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Battery capacity |
9 Ah |
| Automatic battery test |
Yes |
| Typical backup time at full load |
2 min |
| Number of batteries supported |
4 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Cable length |
1.8 m |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 90% |
| Certificates |
| Certification |
TUV IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC cTUVus |
| Compliance certificates |
CE |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Weight & dimensions |
| Weight |
26.9 kg |
| Height |
86.2 mm |
| Depth |
441 mm |
| Width |
522 mm |
