Power cuts can shut down your computer, server or medical equipment in an instant. When that happens you lose work, risk data loss and may even endanger patients. The Eaton 5SC3000IRTBS 3kVA Line-Interactive UPS gives you clean, reliable power that keeps your devices running long enough to save your work and shut down safely. It is built for small businesses, home offices and critical labs that cannot afford unexpected downtime.

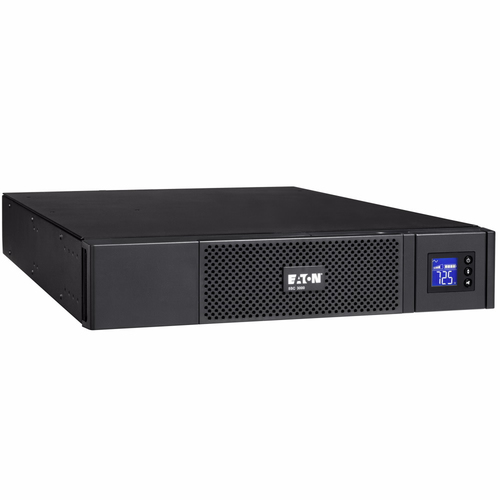

Eaton 5SC3000IRTBS 3kVA Line-Interactive UPS, 2700W Sine, Rack/Tower
The main problem is unstable electricity that can cause surges, brownouts or total loss. This matters because every interruption can corrupt files, damage hardware or halt important processes. The UPS solves the issue by providing a steady sine-wave output, automatic voltage regulation and battery backup that steps in the moment the grid fails, giving you time to protect your data and keep operations running.
Usages of Eaton
You can mount the unit in a server rack or place it on a desk, so it fits both data-center and office layouts. It powers desktop computers, network switches, small servers, POS terminals and medical imaging workstations. The nine AC outlets let you protect multiple devices at once, while the USB and RS-232 ports make remote monitoring easy. It is also suitable for video editing rigs that need clean power for sensitive graphics cards.
Benefits
- Stops data loss by giving you minutes of safe shutdown time.
- Reduces hardware wear with low-noise, 40 dB operation.
- Improves power quality thanks to 97 % efficiency and sine-wave output.
- Easy to install with a 2U rack kit or tower stand.
- Provides clear status through an LCD display and LED indicators.
Key Features
- 3 kVA / 2700 W capacity for demanding loads.
- Line-interactive topology with automatic voltage regulation.
- Pure sine-wave output for sensitive electronics.
- Hot-swap battery design supports up to six batteries.
- Built-in USB Type-B and RS-232 ports for remote management.
- 9 Ah sealed lead-acid battery gives about 2 minutes at full load.
- 9 AC outlets (C13 and C19) plus a C20 input plug.
- LCD screen shows load, battery status and runtime.
- 40 dB noise level keeps the workspace quiet.
- 97 % efficiency reduces energy cost.
- Compact 2U rack size, 86 mm height, 35.7 kg weight.
- CE, UL and TUV certifications confirm safety and reliability.
Specifications
| Features |
| Power protection features |
Overdischarge |
| Noise level |
40 dB |
| Output power factor |
0.9 |
| Power factor |
0.9 |
| Efficiency |
97% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
45/65 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
184 V |
| Waveform |
Sine |
| Output power |
2700 W |
| Output power capacity |
3 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB port type |
USB Type-B |
| USB port |
Yes |
| AC outlets quantity |
9 AC outlet(s) |
| Power plug |
C20 coupler |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Battery capacity |
9 Ah |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Typical backup time at full load |
2 min |
| Number of batteries supported |
6 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Cable length |
1.8 m |
| Rack capacity |
2U |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 90% |
| Operating relative humidity (H-H) |
0 - 90% |
| Certificates |
| Certification |
TUV IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC cTUVus |
| Compliance certificates |
CE |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Weight & dimensions |
| Weight |
35.7 kg |
| Height |
86.2 mm |
| Depth |
441 mm |
| Width |
647 mm |
