Imagine a sudden power drop that shuts down your servers and costs you data loss. The Eaton 9PX 5000i RT3U Netpack G2 UPS is a high-performance backup system that protects critical equipment. It delivers clean, continuous power so you never lose work or risk hardware damage. Designed for small to medium data centers, it keeps your network alive when the grid fails.

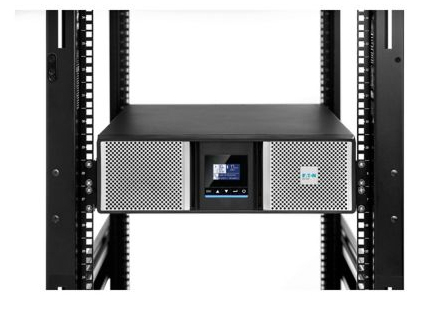

Eaton 9PX 5000i RT3U Netpack G2 UPS, 5 kVA, 5000 W, Rack/Tower
Power outages and voltage spikes can crash servers, corrupt files, and halt business operations. This problem matters because every minute of downtime can mean lost revenue and damaged reputation. The Eaton UPS solves the issue by providing double-conversion online power that filters noise, corrects voltage, and supplies up to 5 kW instantly. With built-in monitoring and a quiet design, it gives you reliable protection without disrupting the work environment.
Benefits
- Delivers up to 5 kW of clean power to keep equipment running.
- Runs at 99 % efficiency in ECO mode, lowering electricity costs.
- Quiet operation at 40 dB, suitable for office or lab settings.
- LCD display and network card let you monitor status remotely.
- Fits both rack and tower installations for flexible placement.
Usages
The UPS is ideal for server rooms that host critical applications, protecting racks of blade servers and storage arrays. It works well in telecom closets where routers and switches need uninterrupted power. Small medical offices can rely on it for imaging equipment and patient data systems. Remote branch offices and industrial control panels also benefit from its robust battery backup and easy monitoring.
Key Features
- 5000 VA / 5000 W double-conversion (online) topology.
- Hardwired input range 100-276 V, 40-70 Hz, single phase.
- Six C13 and six C39 outlets plus hardwired output options.
- Gigabit network card included for remote management.
- LCD display with LED indicators for quick status checks.
- 5 Ah sealed lead-acid battery with automatic testing.
- 99 % efficiency in ECO mode, 96.7 % in normal mode.
- Low noise level of 40 dB for quiet environments.
- 3U rack-mountable design that also functions as a tower.
- Weight 43.1 kg; dimensions 440 684 130 mm for easy installation.
Specifications
| Features |
| Noise level |
40 dB |
| Input power factor |
0.99 |
| Efficiency (ECO mode) |
99% |
| Efficiency |
96.7% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Heat dissipation |
563 BTU/h |
| Power consumption (average operating) |
165 W |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
5000 W |
| Output power capacity |
5 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Network card slot |
Yes |
| RS-232 ports |
1 |
| USB port |
Yes |
| Battery |
| Battery capacity |
5 Ah |
| Automatic battery test |
Yes |
| Typical backup time at half load |
9.4 min |
| Battery voltage |
12 V |
| Battery capacity |
5 Ah |
| Battery capacity |
5 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Cable length |
1.8 m |
| Rack capacity |
3U |
| Product colour |
Black, Silver |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 |
| Compliance certificates |
CB, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RCM, REACH, RoHS, UKCA, WEEE, cULus |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
43.1 kg |
| Height |
130 mm |
| Depth |
684 mm |
| Width |
440 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
