Imagine a sudden power drop that shuts down your servers, loses data, and stops your business in its tracks. The Eaton 9PX 8000i RT4U HotSwap UPS 8kVA Online Double-Conversion is built to keep critical equipment running when the grid fails. It supplies clean, uninterrupted power to protect computers, networking gear, and industrial controls. If you cannot afford downtime, this UPS gives you the safety net you need.

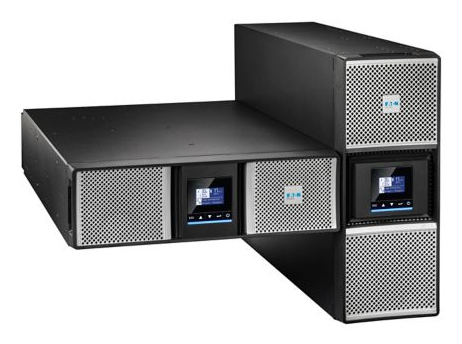

Eaton 9PX 8000i RT4U HotSwap UPS 8kVA Online Double-Conversion
Power fluctuations and short outages are common in many facilities, and they can corrupt data or damage hardware. For a data center or a manufacturing floor, even a few seconds of loss can mean costly repairs and lost productivity. This UPS uses online double-conversion technology to isolate your load from the utility, delivering a constant sine-wave output. The hot-swap battery design lets you replace batteries without shutting down, so protection never stops.
Benefits
- Keeps servers and workstations running during outages, preventing data loss.
- Delivers a pure sine-wave output that protects sensitive electronics from distortion.
- Hot-swap battery modules let you change batteries without power interruption.
- High efficiency (up to 99.5% in ECO mode) reduces electricity costs.
- Built-in LCD and LED indicators give clear status at a glance.
Usages
The UPS fits in a standard 4U rack, making it ideal for server rooms, telecom closets, and small industrial control panels. It can also be installed as a tower in offices that need reliable backup for critical PCs, POS systems, or medical devices. Anywhere you need continuous power for essential equipment, the 8 kVA capacity provides ample headroom.
Key Features
- 8000 VA / 8000 W capacity for heavy loads.
- Online double-conversion topology for seamless power.
- Hot-swap battery system for zero-downtime maintenance.
- Four C19/C13 outlets and hard-wired options.
- Gigabit network card included for remote monitoring.
- 99.5 % efficiency in ECO mode, 97.3 % normal.
- LCD display with LED status lights.
- Input range 100-276 V, output 200-240 V.
- Rack-mount kit and 4U height for space saving.
- Complies with IEC/EN 62040 standards and ENERGY STAR.
Specifications
| Features |
| Noise level |
37 dB |
| Input power factor |
0.99 |
| Efficiency (ECO mode) |
99.5% |
| Efficiency |
97.3% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Heat dissipation |
728 BTU/h |
| Power consumption (average operating) |
214 W |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
8000 W |
| Output power capacity |
8 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| RS-232 ports |
1 |
| USB port |
Yes |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Battery capacity |
9 Ah |
| Automatic battery test |
Yes |
| Typical backup time at half load |
15.2 min |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Cable length |
1.8 m |
| Rack capacity |
4U |
| Product colour |
Black, Silver |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 |
| Compliance certificates |
BSMI, CE, Electromagnetic Compatibility (EMC), KCC, Low Voltage Directive (LVD), RCM, REACH, RoHS, UKCA, WEEE, cULus |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
Output power cable, USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
83.4 kg |
| Height |
174 mm |
| Depth |
725 mm |
| Width |
440 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
