Imagine losing your work because the power flickered for a second. That single moment can shut down a computer, a server, or a medical device and cause costly downtime. The Eaton 9PX1000IRT2UBS is a double-conversion (online) UPS that keeps your equipment running even when the grid fails. It gives you clean, stable power and protects against spikes, brownouts, and total loss, so you never have to worry about data loss or equipment damage.
Eaton 9PX1000IRT2UBS, Double-conversion (Online) UPS 1000 W, Sine
Many small businesses and home offices suffer from unreliable electricity. A sudden outage can halt production, interrupt client calls, or corrupt files. This problem matters because every minute of downtime can mean lost revenue and damaged reputation. The Eaton UPS solves the issue by converting incoming AC to DC and back to AC, delivering a pure sine wave with less than 3% distortion. Its ECO mode saves energy while still providing 97.5% efficiency, and the built-in battery gives you up to six minutes of full-load backup to shut down safely.
Benefits
- Instant power protection prevents data loss during outages.
- Pure sine wave output keeps sensitive electronics running smoothly.
- Energy-saving ECO mode reduces electricity bills.
- Quiet operation at 35 dB creates a comfortable work environment.
- LCD display gives clear status information at a glance.
Usages
The UPS is ideal for a small server room, protecting routers, switches, and storage devices. It works well in a home office to keep a desktop, monitor, and Wi-Fi hub online during brief outages. Creative professionals can connect workstations, drawing tablets, and lighting rigs to avoid interruptions while rendering or recording. It also fits in a medical clinic to keep diagnostic equipment running safely.
Key Features
- 1000 W (1 kVA) continuous output power.
- Double-conversion online topology for zero-transfer time.
- Input voltage range 100 V-276 V, output 200 V-240 V.

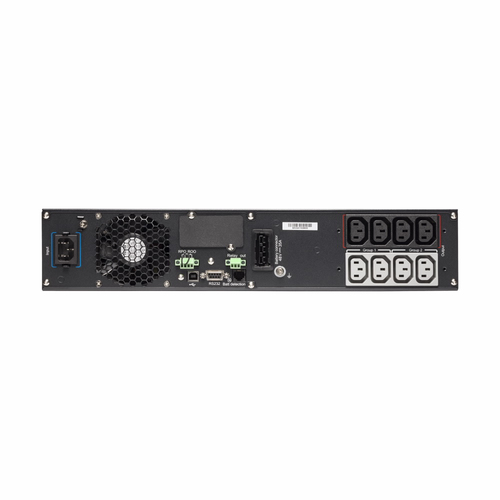

- Eight C13 AC outlets for easy device connection.
- One RS-232 serial port and one USB Type-B for monitoring.
- Four-battery expansion capability, each 12 V 7 Ah sealed lead-acid.
- High efficiency: 91.5% normal, 97.5% in ECO mode.
- Power factor of 1 on both input and output.
- Low total harmonic distortion (3 %).

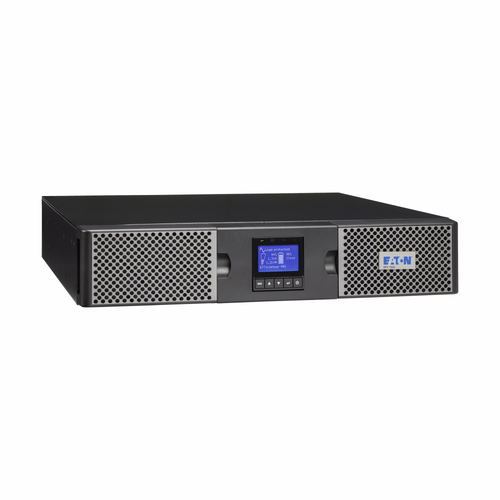

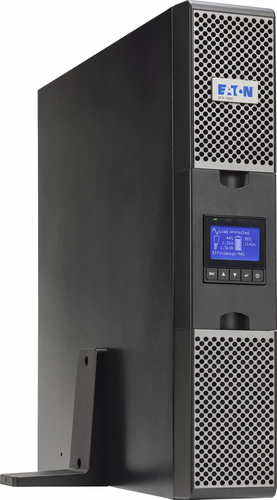

- Rackmount or tower form factor with included mounting kit.
- Operating temperature 0-40 C, altitude up to 3000 m.
- Certified to IEC/EN 62040-1, UL 1778, ENERGY STAR.
Specifications
| Features |
| Power protection features |
Overdischarge |
| Noise level |
35 dB |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| ECO mode |
Yes |
| Output power factor |
1 |
| Input power factor |
0.99 |
| Power factor |
1 |
| Efficiency (ECO mode) |
97.5% |
| Efficiency |
91.5% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
1000 W |
| Output power capacity |
1 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port type |
USB Type-B |
| USB port |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Battery capacity |
7 Ah |
| Automatic battery test |
Yes |
| Typical backup time at full load |
6 min |
| Number of batteries supported |
4 |
| Battery voltage |
12 V |
| Battery capacity |
7 Ah |
| Battery capacity |
7 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Product colour |
Black, Silver |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 96% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus EAC TUV CSA 22.2 FCC 15 / B CISPR22 B |
| Compliance certificates |
CE |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
37.5 kg |
| Height |
500 mm |
| Depth |
570 mm |
| Width |
320 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
