Tired of losing work when the power flickers? The Eaton 9PX2200IRT2UBS Online UPS 2.2 kVA 2200 W Sine Black gives you clean, uninterrupted power for computers, servers, and networking gear. It stops damage caused by sudden outages and protects data that you cannot afford to lose. With double-conversion technology it delivers a pure sine wave, so sensitive equipment runs safely. The unit also runs quietly at 40 dB, so it will not disturb a quiet office. It includes built-in monitoring that can alert you by email or SNMP, and it meets ENERGY STAR standards for green performance.

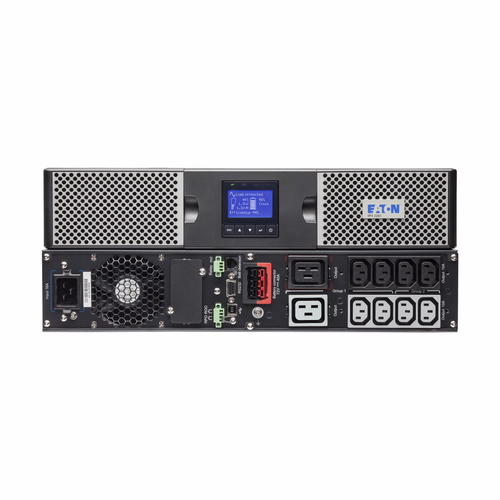

Eaton 9PX2200IRT2UBS Online UPS 2.2 kVA 2200 W Sine Black
Power outages and voltage spikes can shut down computers, corrupt files, and damage hardware. This matters to you because lost data and equipment repair cost can be far higher than the price of a UPS. The Eaton online UPS solves the problem by providing continuous, clean sine-wave power, automatic battery backup, and real-time monitoring, keeping your devices running smoothly even when the grid fails.
Benefits
The following benefits show why this UPS is a smart choice for any critical setup.
- Keeps your computers running even during short blackouts.
- Provides a pure sine wave that protects delicate electronics.
- Runs at only 40 dB, so it stays quiet in the workspace.
- ECO mode saves energy and reduces electricity bills.
- Hot-swap battery lets you replace the battery without shutting down.
Usages

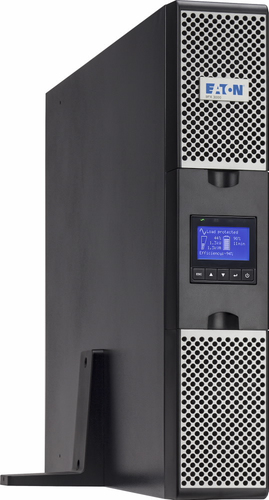

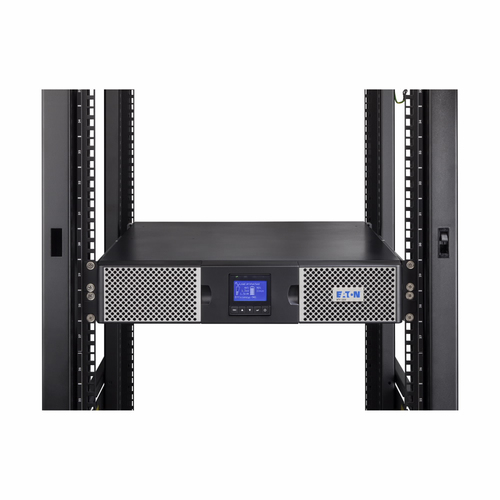

You can install this UPS in a small office, a server rack, or a home workspace. It supplies power to desktop PCs, workstations, network switches, and storage devices. If you run a point-of-sale system, the UPS will keep the register and barcode scanner alive during a power dip. In a lab or workshop, it protects measurement tools that need a stable voltage. The rack-mountable 2U design fits standard 19-inch racks, while the tower option lets you place it on a desk. Ten outlet sockets give you flexibility to connect multiple devices at once. The UPS also works well for small video editing rigs that need steady power for rendering tasks.
Key Features
- 2.2 kVA (2200 W) continuous output for demanding equipment.
- Double-conversion online topology provides zero transfer time protection.
- Input voltage range 100 V-276 V and frequency 40-70 Hz.
- Output voltage 200-240 V with 50/60 Hz selectable frequency.
- Power factor of 1 on output and 0.99 on input for efficiency.
- 98 % efficiency in ECO mode and 93.5 % normal efficiency.

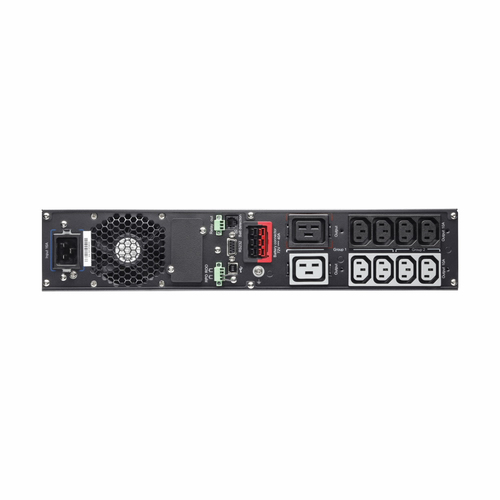

- 10 AC outlets (C13 and C19) plus a C20 power plug.

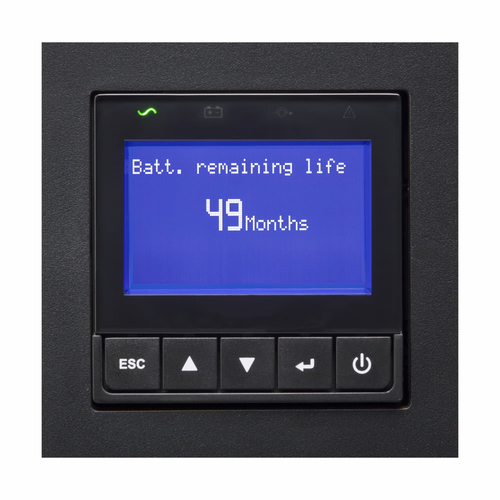

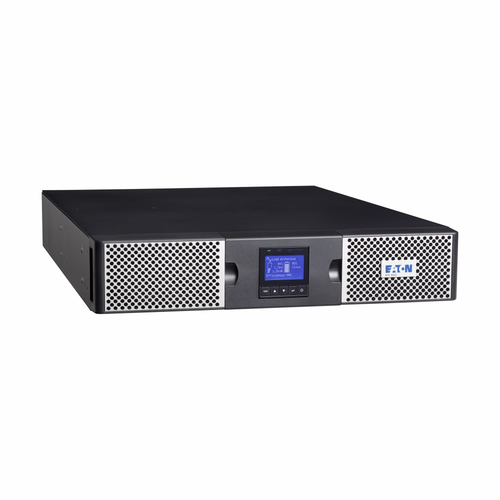

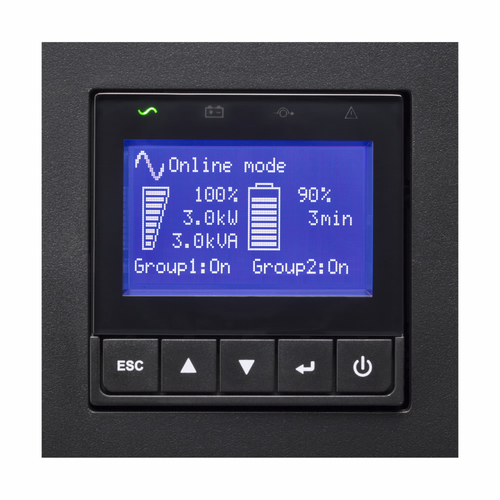

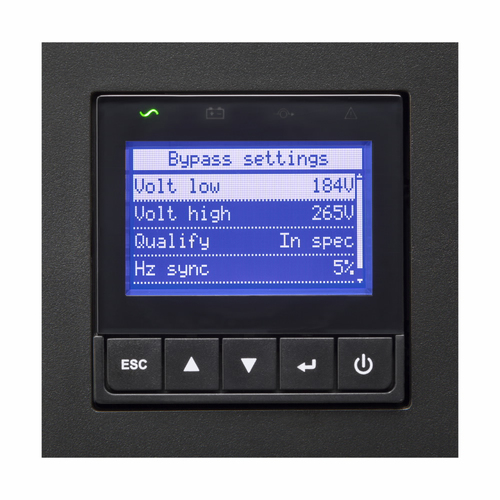

- LCD display and LED indicators show status at a glance.
- One RS-232 serial port and USB Type-B for management.
- Hot-swap battery system supports up to six 7 Ah batteries.
Specifications
| Features |
| Power protection features |
Overdischarge |
| Noise level |
40 dB |
| ECO mode |
Yes |
| Output power factor |
1 |
| Input power factor |
0.99 |
| Power factor |
1 |
| Efficiency (ECO mode) |
98% |
| Efficiency |
93.5% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
2200 W |
| Output power capacity |
2.2 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB port type |
USB Type-B |
| USB port |
Yes |
| AC outlets quantity |
10 AC outlet(s) |
| Power plug |
C20 coupler |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Battery capacity |
7 Ah |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Typical backup time at full load |
3 min |
| Number of batteries supported |
6 |
| Battery voltage |
12 V |
| Battery capacity |
7 Ah |
| Battery capacity |
7 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Cable length |
1.8 m |
| Rack capacity |
2U |
| Product colour |
Black |
| Form factor |

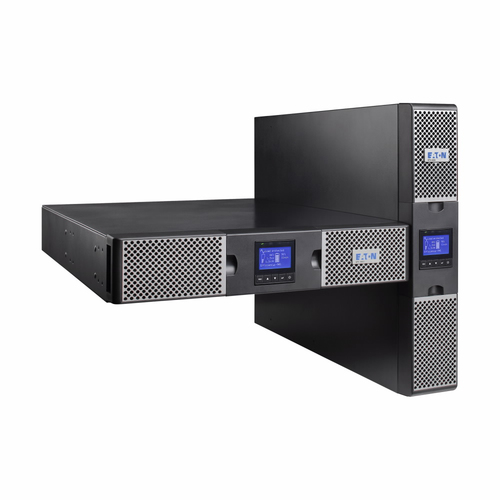

Rackmount/Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 96% |
| Operating relative humidity (H-H) |
0 - 96% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
TUV cULus CSA 22.2 FCC 15 /B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC |
| Compliance certificates |
CE |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
19.3 kg |
| Height |
240 mm |
| Depth |
580 mm |
| Width |
550 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
