Power cuts and voltage spikes can shut down servers, damage data and halt work. When a business loses power, productivity drops and repair costs rise. You need a device that keeps your equipment running cleanly and protects it from bad power. The Eaton 9PX2200IRT3UBS 2200W Double Conversion Online UPS 2.2kVA gives you steady, clean electricity and enough backup time to save your work and shut down safely.
Eaton 9PX2200IRT3UBS 2200W Double Conversion Online UPS 2.2kVA with Eaton
Imagine a silent guardian that never lets a sudden outage surprise you. This UPS is a double-conversion online unit that filters every watt before it reaches your gear. It is built for small and medium data centres, IT rooms and any place where computers cannot afford to stop. If you have servers, networking switches or critical workstations, you need this Eaton UPS to keep them alive and safe during a blackout.
Usages
You can mount the unit in a rack or place it on a floor as a tower. It works well in server rooms that host virtual machines, in office closets that hold routers and switches, and in small data centres that run backup software. It also protects point-of-sale terminals, medical imaging workstations, and any lab equipment that needs clean power.
Benefits
- Continuous power lets you finish tasks and shut down safely, avoiding data loss.
- Energy-efficient design cuts electricity bills while still delivering strong protection.
- Low noise (40 dB) keeps the server room quiet for staff and nearby offices.
- Eight outlets give you flexibility to connect many devices without extra strips.

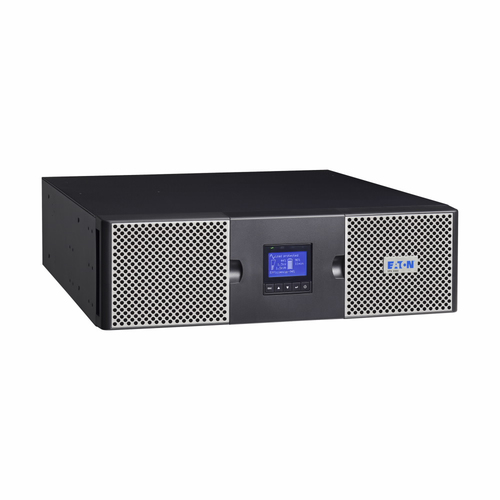

- Easy LCD display shows status, battery life and alerts so you can act quickly.
Key Features
- Double-conversion online topology provides clean sine wave output.
- 2200 W (2.2 kVA) capacity supports servers, storage and networking gear.
- 98 % efficiency in ECO mode reduces power consumption.
- Input range 100-276 V and output range 200-240 V handles unstable grids.
- Three-minute full-load backup gives you time to save work and shut down.

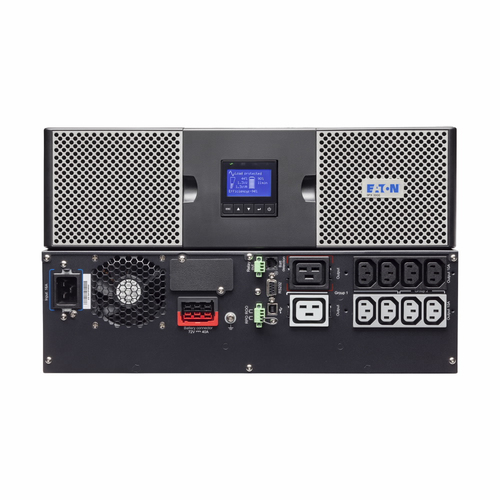

- Eight C13 outlets and one C20 input plug for versatile connections.
- LCD interface with battery test, serial (RS-232) and USB 2.0 ports for monitoring.
- Supports up to six 12 V sealed lead-acid batteries for extended runtime.

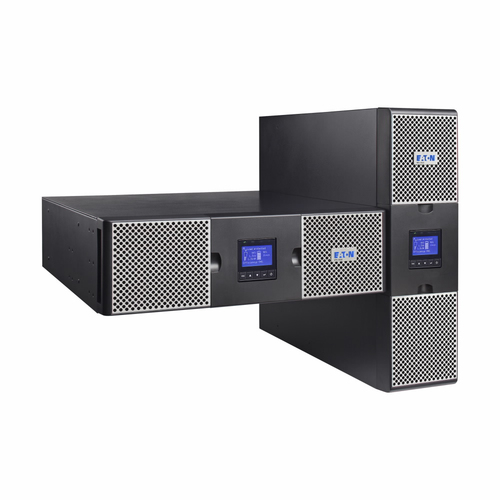

- Compact rack-mount or tower form factor fits most installation spaces.
- Certified to IEC/EN 62040-1, UL 1778 and ENERGY STAR for safety and sustainability.
Specifications
| Features |
| Power protection features |
Overdischarge |
| Noise level |
40 dB |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Output power factor |
1 |
| Input power factor |
0.99 |
| Power factor |
1 |
| Efficiency (ECO mode) |
98% |
| Efficiency |
93.5% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
2200 W |
| Output power capacity |
2.2 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| Power plug |
C20 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Battery capacity |
7 Ah |
| Automatic battery test |
Yes |
| Typical backup time at full load |
3 min |
| Number of batteries supported |
6 |
| Battery voltage |
12 V |
| Battery capacity |
7 Ah |
| Battery capacity |
7 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Cable length |
1.8 m |
| Product colour |
Black, Silver |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 96% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus EAC |
| Compliance certificates |
CE |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
25.5 kg |
| Height |
230 mm |
| Depth |
770 mm |
| Width |
580 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
