Power outages can shut down your servers in seconds, costing you data and money. The Eaton 9PX3000IRT3UBS 3kVA Online Rackmount UPS 3000W is a high-efficiency backup system that keeps your equipment running when the grid fails. It is built for small to medium data centres, IT rooms, and critical infrastructure. If you need reliable power without huge energy bills, this UPS is the answer.
Eaton 9PX3000IRT3UBS 3kVA Online Rackmount UPS 3000W
Businesses lose productivity when power spikes or blackouts hit their servers. That problem matters because a single minute of downtime can mean lost sales, damaged hardware, and frustrated customers. This UPS solves the issue by providing double-conversion online protection, delivering clean sine-wave power and instant backup for up to three minutes at full load. It also reduces energy use by up to 40 % compared with older models.
Usages of Eaton
The 9PX3000IRT3UBS fits neatly into a standard 19-inch rack, making it ideal for server rooms that need a compact footprint. Use it to protect network switches, storage arrays, and virtualization hosts. It also works well for small office IT closets, point-of-sale systems, and medical imaging equipment that cannot tolerate power loss. Anywhere you run critical computers, this UPS can keep them alive.
Benefits
- Keeps your servers running instantly when the grid fails, avoiding data loss.
- Cuts electricity costs with up to 40 % lower energy consumption in ECO mode.
- Provides clean sine-wave output, protecting sensitive hardware from voltage spikes.
- Offers up to three minutes of full-load backup, enough time to shut down safely.
- Quiet operation at 40 dB, so it does not disturb office environments.
Key Features
- Double-conversion (online) topology for uninterrupted clean power.
- 3000 W (3 kVA) output capacity to run multiple servers.
- 98 % efficiency in ECO mode, saving energy costs.
- 40 dB low noise level for quiet rack environments.
- LCD display shows status, load, and battery health.
- Ten universal AC outlets with C13 and C19 connectors.

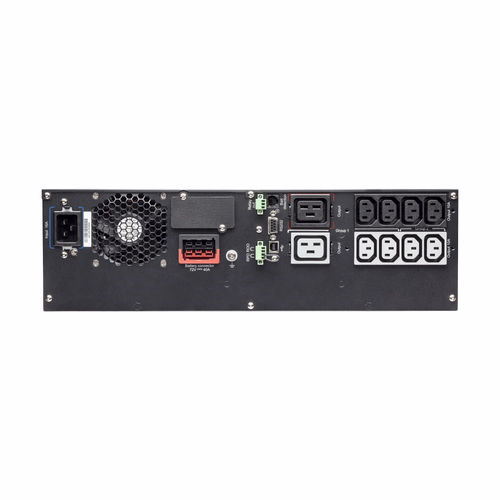

- Built-in USB and RS-232 ports for easy monitoring.
- 9 Ah sealed-lead-acid battery, up to three minutes at full load.
- Supports up to six external batteries for extended runtime.
- ENERGY STAR certified and meets IEC/EN 62040 standards.
Specifications
| Features |
| Power protection features |
Overdischarge |
| Noise level |
40 dB |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Output power factor |
1 |
| Input power factor |
0.99 |
| Power factor |
1 |
| Efficiency (ECO mode) |
98% |
| Efficiency |
94% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
3000 W |
| Output power capacity |
3 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| AC outlets quantity |
10 AC outlet(s) |
| Power plug |
C20 coupler |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Battery capacity |
9 Ah |
| Automatic battery test |
Yes |
| Typical backup time at full load |
3 min |
| Number of batteries supported |
6 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Cable length |
1.8 m |
| Product colour |
Black, Silver |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 96% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus Listed EAC |
| Compliance certificates |
CE |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
28 kg |
| Height |
240 mm |
| Depth |
780 mm |
| Width |
570 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
