Imagine a power cut hitting your data centre just as a critical backup finishes. Your servers could shut down, data could be lost, and downtime would cost you thousands. The Eaton 9PX3000IRTBPBS Online UPS 3kVA 3000W Sine, Energy Efficient is built to stop that from happening. It gives you clean, uninterrupted power so your equipment stays on and your business stays running.
Eaton 9PX3000IRTBPBS Online UPS 3kVA 3000W Sine, Energy Efficient
Power spikes, brownouts, and total outages are a daily risk for small and medium data centres. When the supply falters, servers can reboot, applications can crash, and you lose productivity. This UPS solves the problem by converting incoming AC to stable DC and back to clean AC, delivering a pure sine wave at all times. The result is reliable protection, lower energy bills, and peace of mind for IT managers who cannot afford interruptions.
Benefits
- Runs at 98% efficiency in ECO mode, saving electricity costs.
- Provides up to three minutes of backup at full load, enough to finish critical tasks.
- Quiet operation at 40 dB, so the rack stays cool and silent.
- Hot-swap batteries let you replace power cells without shutting down.
- LCD display gives clear status and alerts at a glance.
Usages
The UPS fits perfectly in a small server room that needs 3 kVA of clean power. It can protect network switches, storage arrays, and virtualization hosts. It also works well for office IT closets where workstations and PBX systems require constant power. Because it can be mounted as a tower or in a rack, you can place it wherever space is limited. The built-in USB and RS-232 ports let you monitor the unit from your management software.
Key Features
- Double-conversion online topology for continuous power.
- Pure sine-wave output for sensitive equipment.
- Input voltage range 100 V to 276 V, suitable for many regions.
- Output voltage range 200 V to 240 V, auto-adjusting to load.

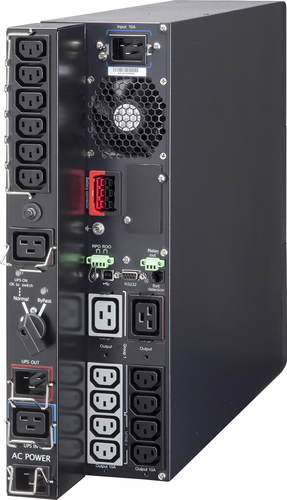

- Seven C13/C19 AC outlets for flexible connections.
- One RS-232 serial port and one USB port for remote monitoring.
- Supports up to six hot-swap batteries for extended runtime.
- Energy Star certified for lower environmental impact.
- Compact rackmount/tower design, 27.9 kg weight.
- LCD panel shows load, battery status, and alarms.
Specifications
| Features |
| Power protection features |
Overdischarge |
| Noise level |
40 dB |
| Output power factor |
1 |
| Input power factor |
0.99 |
| Power factor |
1 |
| Efficiency (ECO mode) |
98% |
| Efficiency |
94% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
3000 W |
| Output power capacity |
3 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB port |
Yes |
| AC outlets quantity |
7 AC outlet(s) |
| Power plug |
C20 coupler |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Battery capacity |
9 Ah |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Typical backup time at full load |
3 min |
| Number of batteries supported |
6 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Cable length |
1.8 m |
| Product colour |
Black, Silver |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 96% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus EAC |
| Compliance certificates |
CE |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
27.9 kg |
| Height |
290 mm |
| Depth |
770 mm |
| Width |
580 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
