Imagine a sudden power drop while your servers are running critical tasks. The loss can corrupt data, halt production, and cost you time and money. The Eaton 9PX6KIRTNG2 6kVA 6000W Online UPS Rack Tower 3U is built to stop that from happening. It gives clean, uninterrupted power to keep your equipment alive and your business running.

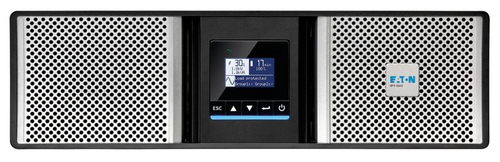

Eaton 9PX6KIRTNG2 6kVA 6000W Online UPS Rack Tower 3U
Power loss is a real risk for any IT or industrial setup. When voltage drops or spikes, sensitive devices can shut down or be damaged. This problem matters because downtime hurts revenue and reputation. The Eaton online UPS uses double-conversion technology to filter every watt, delivering a stable 230 V output even when the grid falters. It protects servers, networking gear, and critical loads with up to 6000 W of clean power.
Usages of Eaton
You can mount this unit in a server rack or use it as a free-standing tower. It fits data centers that need high density backup, small office server rooms that cannot afford outages, and industrial control panels that run 24/7. The built-in network card lets you monitor power status from any computer, making it ideal for remote management.
Benefits
- Zero downtime for servers and network devices.
- Energy-star rating lowers electricity costs.
- Quiet 40 dB operation keeps the rack environment comfortable.

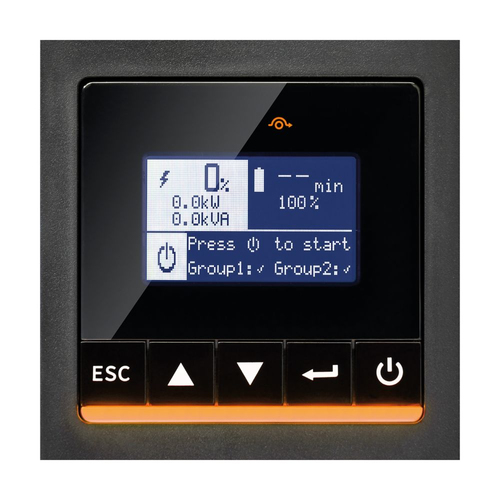

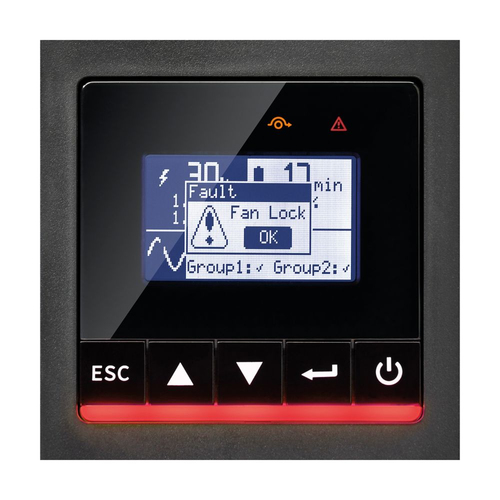

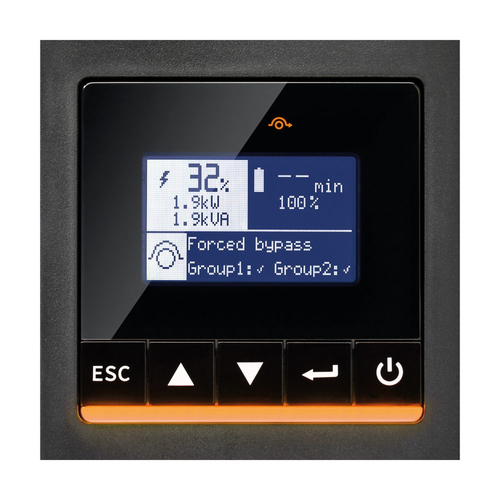

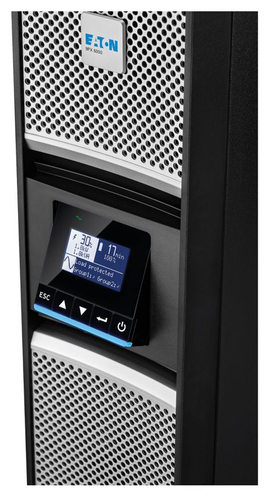

- LCD display and LED indicators give instant status at a glance.
- Automatic battery test ensures readiness when you need it.
Key Features
- 6 kVA / 6000 W pure sine-wave output.
- Double-conversion (online) topology for constant power.
- Three-unit (3U) rack-mountable design.
- Six C13 and six C39 outlets plus hard-wired terminals.
- Gigabit network card included for remote monitoring.
- RS-232 and USB ports for local management.
- Power factor of 0.99 and efficiency of 96.5 %.
- Battery: 5 Ah sealed lead-acid, auto-test enabled.
- Operating range 200-240 V output, 176-276 V input.
- Noise level 40 dB, suitable for quiet server rooms.
- Compliant with IEC/EN 62040 standards and ENERGY STAR.
- Rack-mount kit and tower option included.
Specifications
| Features |
| Noise level |
40 dB |
| Power factor |
0.99 |
| Efficiency |
0.965% |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
176 V |
| Waveform |
Pure sine |
| Output power |
6000 W |
| Output power capacity |
6 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| RS-232 ports |
1 |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Power plug |
Terminal |
| AC outlet types |
C13 coupler, Terminal |
| Battery |
| Battery capacity |
5 Ah |
| Automatic battery test |
Yes |
| Battery voltage |
12 V |
| Battery capacity |
5 Ah |
| Battery capacity |
5 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Control type |
Buttons |
| Rack capacity |
3U |
| Product colour |
Black, Silver |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ENERGY STAR certified, CE, cULus, UKCA, Cm, Ukr, RCM |
| Compliance certificates |
CE, UKCA, cULus |
| Packaging content |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
43.1 kg |
| Height |
130 mm |
| Depth |
684 mm |
| Width |
440 mm |
| Packaging data |
| Bundled software |
Eaton Brlightlayer Software suite |
| Management card included |
Yes |
| Other features |
| Nominal input voltage |
400 V |
| Nominal output voltage |
230 V |
| Operating temperature (T-T) |
0 - 40 °C |
