When the power grid falters, computers, servers and networking gear can shut down in seconds. That loss can mean missed deadlines, corrupted data, or costly downtime for a business. You need a device that keeps critical equipment running without interruption, even during voltage spikes or blackouts. The Eaton 9PX8KIRTNG2 8 kVA Online UPS Rackmount Tower, Pure Sine, 8000 W delivers clean, uninterrupted power so you stay productive and protected.

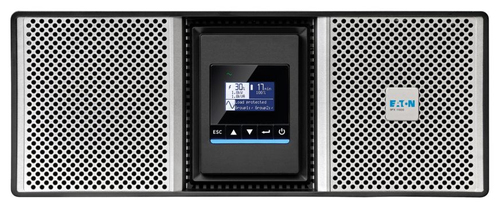

Eaton 9PX8KIRTNG2 8 kVA Online UPS Rackmount Tower, Pure Sine, 8000 W with Eaton
This is a high-performance online UPS that converts incoming AC to pure sine wave AC, shielding your devices from all power problems. It is built for data centers, server rooms, and any place that cannot afford a power outage. If you have servers, storage arrays, or medical equipment that must stay on, this UPS gives you the confidence that the power will never drop below safe levels. Eatons reputation for reliability backs every component.
Usages
The UPS fits in a 4U rack or can stand as a tower, so it works in tight server closets or larger data halls. Use it to protect network switches, virtualization hosts, and critical workstations. It also powers medical imaging devices, industrial control panels, and broadcast equipment that need clean sine wave power. The built-in network card lets you monitor performance from any computer, making remote management easy.
Benefits
- Zero downtime - the double-conversion design supplies power instantly, even during a blackout.
- Pure sine wave output protects sensitive electronics and extends their life.
- High efficiency (97.3%) reduces electricity costs and heat output.
- Quiet operation at 37 dB keeps the server room environment comfortable.
- Easy remote monitoring via the included Gigabit network card.
Key Features
- 8000 VA / 8000 W continuous power capacity.
- Online double-conversion topology for seamless power transfer.
- Pure sine wave output for maximum equipment compatibility.

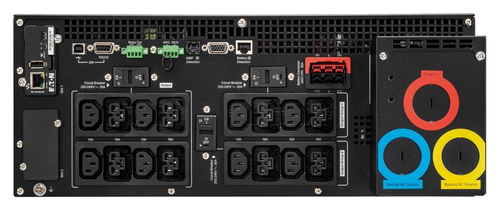

- Six C13 and six C39 outlets plus hard-wired connections.
- Built-in 1 Gb Ethernet management card.
- LCD display with LED indicators for quick status checks.

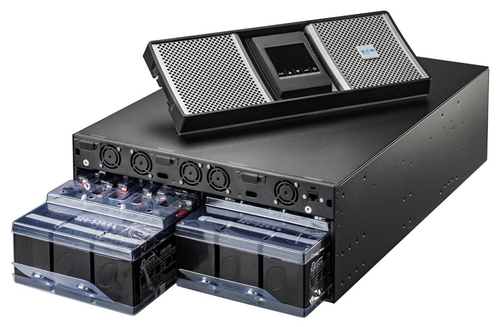

- Battery auto-test and 9 Ah sealed lead-acid battery.
- Input range 176-276 V, output range 200-240 V.
- Power factor of 0.99 for stable load handling.

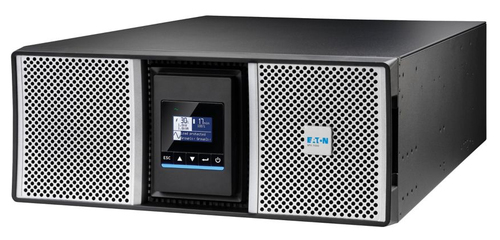

- Comes with rack-mount kit for 4U installation.
Specifications
| Features |
| Noise level |
37 dB |
| Power factor |
0.99 |
| Efficiency |
0.973% |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
176 V |
| Waveform |
Pure sine |
| Output power |
8000 W |
| Output power capacity |
8 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| RS-232 ports |
1 |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Power plug |
Terminal |
| AC outlet types |
C13 coupler, Terminal |
| Battery |
| Battery capacity |
9 Ah |
| Automatic battery test |
Yes |
| Hot-swap battery |
No |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Control type |
Buttons |
| Rack capacity |
4U |
| Product colour |
Black, Silver |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ENERGY STAR certified, CE, cULus, UKCA, Cm, Ukr, RCM |
| Compliance certificates |
CE, UKCA, cULus |
| Packaging content |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
78.8 kg |
| Height |
174 mm |
| Depth |
724 mm |
| Width |
440 mm |
| Packaging data |
| Bundled software |
Eaton Brlightlayer Software suite |
| Management card included |
Yes |
| Other features |
| Nominal input voltage |
230 V |
| Nominal output voltage |
230 V |
| Operating temperature (T-T) |
0 - 40 °C |
