Power outages and voltage spikes can shut down servers, damage equipment, and cause data loss. When a business loses power, productivity drops and recovery costs rise. The Eaton 9SX 11000i RT4U G2 11kVA Online Rackmount UPS gives you clean, uninterrupted power so your critical devices stay on and your data stays safe. It works as a bridge between the grid and your hardware, smoothing out fluctuations and providing backup time to shut down safely.

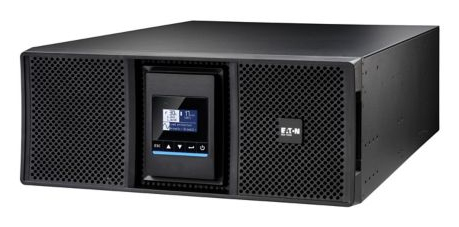

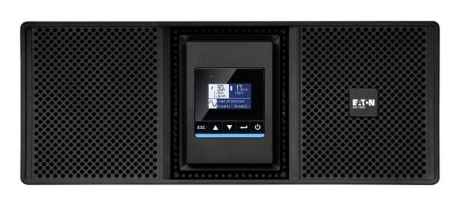

Eaton 9SX 11000i RT4U G2 11kVA Online Rackmount UPS with Eaton
You need a power solution that never lets your servers blink. This Eaton UPS is a double-conversion, online unit that delivers a pure sine wave to every outlet. It is built for rackmount or tower use and can handle up to 11 kVA of load. If the grid fails, the unit switches to battery in milliseconds, keeping your network, storage, and workstations alive.
Usages

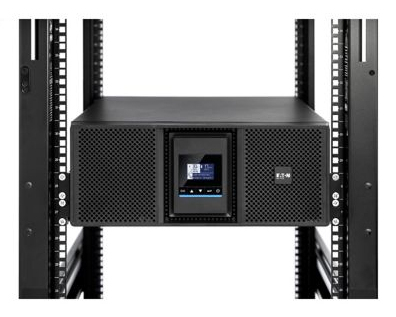

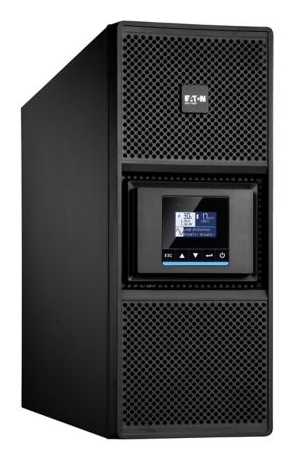

The UPS fits in a standard 4U rack, so data centers can stack it with other equipment. It also works as a standalone tower for small server rooms or office closets. Use it to protect servers, network switches, storage arrays, and critical POS systems. It is ideal for telecom closets, medical imaging rooms, and any place where a power loss could halt operations.
Benefits
- Keeps your equipment running during outages, preventing downtime and lost revenue.
- Provides clean sine-wave power that protects sensitive electronics from spikes.
- Offers up to 10 minutes of backup at half load, enough to save work and shut down safely.
- Runs at 99.5% efficiency in ECO mode, lowering electricity costs.
- Quiet operation at 37 dB lets it sit in office environments without distraction.
Key Features
- 11 kVA / 11 kW capacity for large loads.
- Double-conversion online topology for continuous power conditioning.
- 4U rack-mount design with included rack kit.

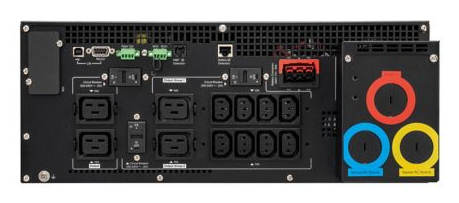

- Eight C13 and four C19 outlets plus hard-wired options.
- LCD display with LED indicators for real-time status.
- USB and RS-232 ports for remote monitoring.
- Battery: 7 Ah sealed lead-acid, auto-test, 10.6 min backup at half load.
- 99.5 % efficiency in ECO mode, 97 % normal efficiency.
- Input range 100-276 V, output range 200-240 V, 50/60 Hz.
- ENERGY STAR certified for lower environmental impact.
Specifications
| Features |
| Noise level |
37 dB |
| Efficiency (ECO mode) |
99.5% |
| Efficiency |
97% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Heat dissipation |
1050 BTU/h |
| Power consumption (average operating) |
308 W |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
11000 W |
| Output power capacity |
11 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| RS-232 ports |
1 |
| USB port |
Yes |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Battery capacity |
7 Ah |
| Automatic battery test |
Yes |
| Typical backup time at half load |
10.6 min |
| Battery voltage |
12 V |
| Battery capacity |
7 Ah |
| Battery capacity |
7 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Cable length |
1.8 m |
| Rack capacity |
4U |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 |
| Compliance certificates |
BSMI, CE, Electromagnetic Compatibility (EMC), KCC, Low Voltage Directive (LVD), RCM, REACH, RoHS, UKCA, WEEE, cULus |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
Output power cable, USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
78.8 kg |
| Height |
174 mm |
| Depth |
725 mm |
| Width |
440 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
