Imagine a power outage that shuts down your servers in seconds. The Eaton 9SX 8000i G2 8kVA Online UPS Rack Tower 4U protects your equipment by delivering clean, uninterrupted power. It is a high-performance UPS designed for data centers, server rooms, and critical IT gear. If you have ever lost work or faced costly downtime, this UPS is the safety net you need.

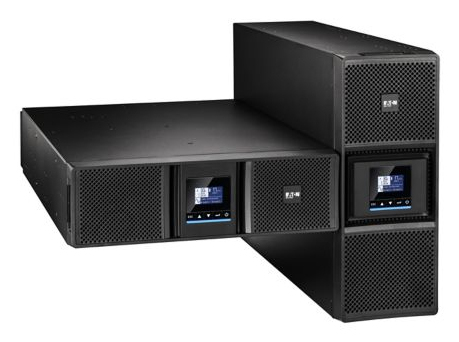

Eaton 9SX 8000i G2 8kVA Online UPS Rack Tower 4U
Power fluctuations and sudden blackouts can damage hardware and halt business operations. The problem matters because every minute of downtime can mean lost revenue and unhappy customers. This Eaton UPS solves the issue with double-conversion technology that isolates your load from bad input power. It delivers a steady sine wave, maintains voltage within tight limits, and gives you enough backup time to shut down safely or switch to another power source.
Usages of Eaton
The 9SX 8000i fits in a 4U rack and can also be used as a tower, making it flexible for tight spaces. It is ideal for server farms that need 8 kVA of reliable power. It works well in network closets where multiple C13 and C19 outlets power switches, routers, and storage devices. Small to medium businesses can install it to protect point-of-sale systems and office PCs. Even remote sites with hard-wired input can benefit from its robust online design.
Benefits
- Instant power protection keeps servers running without interruption.
- High efficiency (up to 99.5% in ECO mode) lowers electricity costs.
- Quiet operation at 37 dB creates a comfortable work environment.
- LCD display and LED indicators give clear status at a glance.
- Built-in battery test ensures the backup battery is always ready.
Key Features
- 8000 VA / 8000 W continuous power capacity.
- Double-conversion online topology for pure sine-wave output.
- Four-U rackmount form factor with optional tower use.
- Eight C13 and four C19 outlets plus hard-wire options.
- Network card slot, USB and RS-232 ports for remote management.
- Input range 100-276 V, output range 200-240 V, frequency 50/60 Hz.
- Battery: 7 Ah sealed lead-acid, 10.6 min backup at half load.
- Energy-Star certified for sustainable operation.
- Power factor 0.99 and low heat dissipation (728 BTU/h).
- Operating temperature 0-40 C, altitude up to 3000 m.
Specifications
| Features |
| Noise level |
37 dB |
| Input power factor |
0.99 |
| Efficiency (ECO mode) |
99.5% |
| Efficiency |
97.3% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Heat dissipation |
728 BTU/h |
| Power consumption (average operating) |
214 W |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
8000 W |
| Output power capacity |
8 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Network card slot |
Yes |
| RS-232 ports |
1 |
| USB port |
Yes |
| AC outlet types |
C13 coupler, C19 coupler, Hardwire |
| Battery |
| Battery capacity |
7 Ah |
| Automatic battery test |
Yes |
| Typical backup time at half load |
10.6 min |
| Battery voltage |
12 V |
| Battery capacity |
7 Ah |
| Battery capacity |
7 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Cable length |
1.8 m |
| Rack capacity |
4U |
| Product colour |
Black, Silver |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 |
| Compliance certificates |
CB, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RCM, REACH, RoHS, UKCA, WEEE, cULus |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
78.8 kg |
| Height |
174 mm |
| Depth |
724 mm |
| Width |
440 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
