Power cuts and voltage spikes can shut down a computer, erase work, or damage sensitive equipment. When a device loses power, you may lose hours of unsaved data and face costly repairs. The Eaton 9SX1500IBS 0.7 kVA Online Double Conversion UPS 630W gives you clean, uninterrupted power so your machines stay on and your data stays safe. It also reduces downtime and protects your warranty.
Eaton 9SX1500IBS 0.7 kVA Online Double Conversion UPS 630W with Eaton
Imagine a silent guard that never sleeps. This UPS from Eaton converts incoming AC to DC and back to AC in real time, eliminating any dip or surge. It is built for small offices, workstations, and critical networking gear that cannot afford a sudden shutdown. If you need reliable power, this unit is the answer. The unit runs at 40 dB, so it will not disturb a quiet office.
Usages
Use it on a home office desk to protect your laptop, monitor and router during brief outages. Place it in a small server room to keep a file server running long enough for a graceful shutdown. It works well with point-of-sale terminals, medical monitoring devices, and any 120-240 V equipment that requires steady sine-wave power. The six C13 outlets let you plug several devices at once. Its built-in battery test ensures the backup is ready whenever you need it.
Benefits
- Keeps work running when the grid fails.
- Protects equipment from voltage spikes.
- Provides clean sine-wave power for sensitive electronics.
- Low noise level (40 dB) lets it sit in quiet spaces.
- Easy monitoring through LCD and USB/RS-232 connections.
Key Features
- Online double-conversion topology for zero transfer time.
- 630 W continuous output power (0.7 kVA).
- High efficiency up to 93 % in ECO mode.

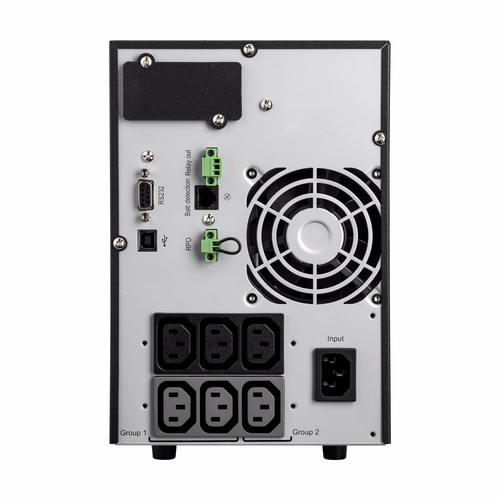

- 6 C13 AC outlets with C14 input plug.

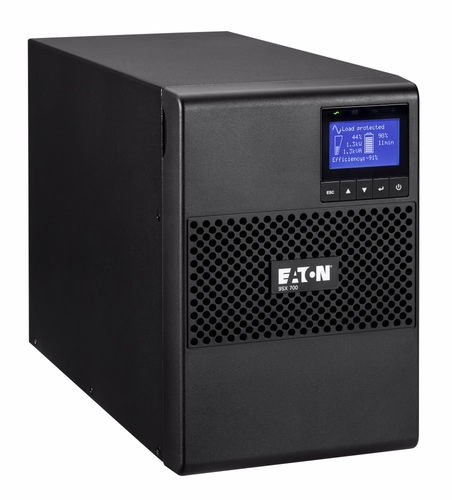

- LCD display shows load, battery, and alerts.
- Hot-swap 9 Ah sealed lead-acid battery.
- 40 dB operating noise for a quiet environment.
- Input voltage range 120-276 V, output 200-240 V.
- RS-232 and USB Type-B ports for remote management.
- Compact tower design, only 11.9 kg weight.
Specifications
| Features |
| Noise level |
40 dB |
| Output power factor |
0.9 |
| Input power factor |
0.99 |
| Efficiency (ECO mode) |
93% |
| Efficiency |
87.4% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
120 V |
| Waveform |
Sine |
| Output power |
630 W |
| Output power capacity |
0.7 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB port type |
USB Type-B |
| USB port |
Yes |
| AC outlets quantity |
6 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Battery capacity |
9 Ah |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Product colour |
Black |
| Form factor |
Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 96% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus Listed EAC |
| Compliance certificates |
CE |
| Packaging content |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
No |
| Sustainability |
| Sustainability compliance |
Yes |
| Weight & dimensions |
| Weight |
11.9 kg |
| Height |
377 mm |
| Depth |
570 mm |
| Width |
296 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
