Power outages and voltage spikes can shut down computers, damage medical devices, and stop production lines. When the power drops you lose data, face costly repairs, and waste valuable time. The Eaton 9SX1500IBS Online Double Conversion UPS gives you clean, uninterrupted power so your equipment stays on and safe. It works even when the grid is unstable and protects against over-discharge and noise.

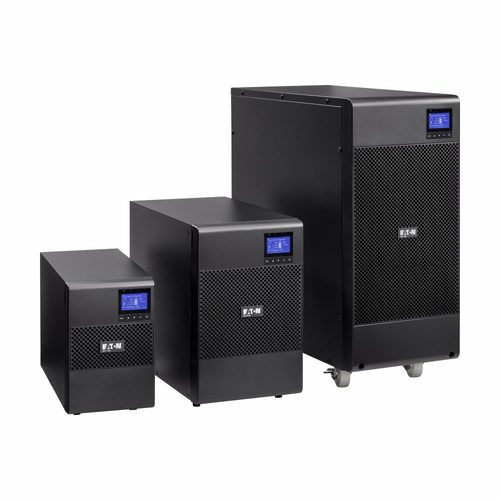

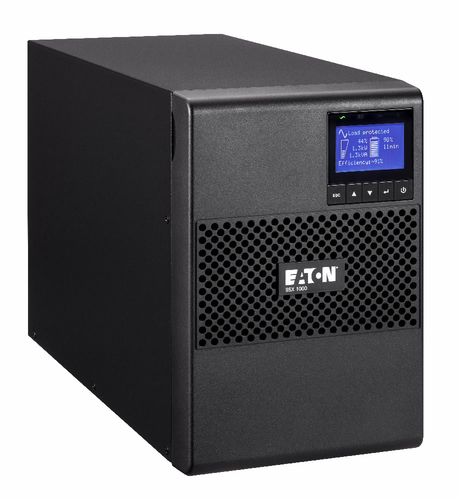

Eaton 9SX1500IBS Online Double Conversion UPS 1kVA 900W 120V with Eaton
Never lose a single file again. This unit is a 1 kVA, 900 W online double-conversion UPS built for critical equipment. It converts incoming AC to DC and back to AC, removing all disturbances before they reach your devices. If you run servers, lab instruments, or point-of-sale systems, a sudden power loss can mean lost revenue or patient risk. Eaton delivers the protection you need, keeping power steady and clean.
Usages
The UPS fits in a small office, a data-center rack, or a medical lab. Use it to protect desktop computers, network switches, storage arrays, and imaging equipment. It works well for small manufacturing controllers, point-of-sale terminals, and any device that cannot tolerate a power glitch. The tower form factor also allows placement on a workbench for field technicians.
Benefits
- Continuous power prevents data loss and downtime.
- Clean sine-wave output protects sensitive electronics.
- Eco mode lowers energy use and reduces electricity bills.
- Quiet operation (41 dB) keeps the workspace comfortable.

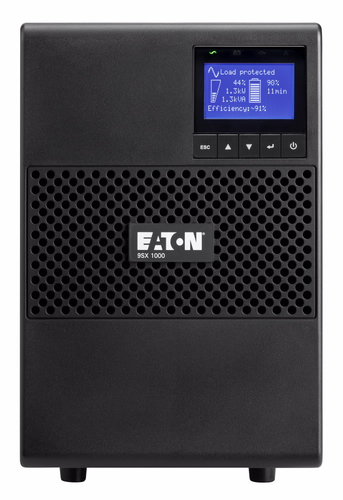

- LCD display shows status, making monitoring simple.
Key Features
- Online double-conversion topology for full isolation.
- 1 kVA / 900 W capacity supports medium-size loads.
- Six C13 AC outlets for easy device connection.

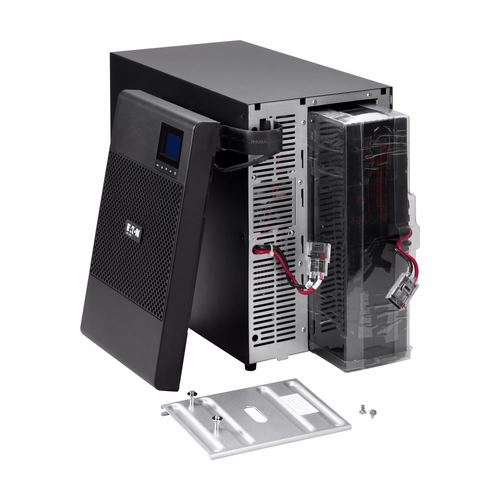

- Built-in battery test and 9 Ah sealed lead-acid batteries.

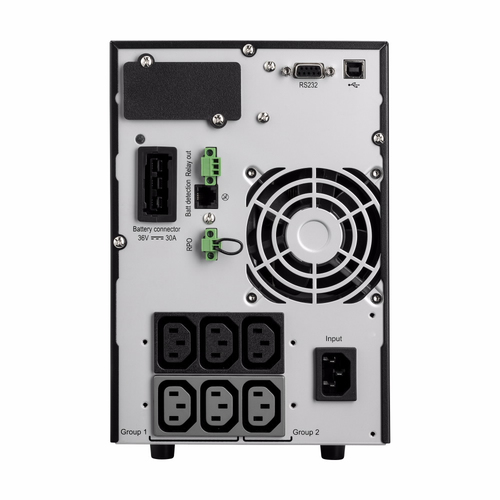

- USB Type-B and RS-232 ports for remote management.
- 41 dB noise level for quiet operation.
- 94 % efficiency in Eco mode, 89 % normal efficiency.
- Input range 120-276 V, output range 200-240 V.
- Power factor 0.9 (output) and 0.99 (input) for stable performance.
- Compliance with UL, CE, FCC and other safety standards.
Specifications
| Features |
| Power protection features |
Overdischarge |
| Noise level |
41 dB |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| ECO mode |
Yes |
| Output power factor |
0.9 |
| Input power factor |
0.99 |
| Power factor |
0.9 |
| Efficiency (ECO mode) |
94% |
| Efficiency |
89% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
120 V |
| Waveform |
Sine |
| Output power |
900 W |
| Output power capacity |
1 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port type |
USB Type-B |
| USB port |
Yes |
| AC outlets quantity |
6 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Battery capacity |
9 Ah |
| Automatic battery test |
Yes |
| Typical backup time at full load |
6 min |
| Number of batteries supported |
3 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Product colour |
Black |
| Form factor |
Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 96% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
TUV cULus CSA 22.2 FCC 15 / B CISPR22 / B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 |
| Compliance certificates |
CE |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
No |
| Sustainability |
| Sustainability compliance |
Yes |
| Weight & dimensions |
| Weight |
15.2 kg |
| Height |
377 mm |
| Depth |
570 mm |
| Width |
296 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
