Power outages and voltage spikes can shut down computers, servers, and medical devices, causing data loss, downtime, and costly repairs. When your equipment stops, you lose productivity and may risk patient safety. The Eaton 9SX3000IBS UPS provides clean, uninterrupted power so your devices keep running even when the grid fails. Its online double-conversion design filters noise and stabilises voltage, giving you a reliable backup that protects data and equipment.

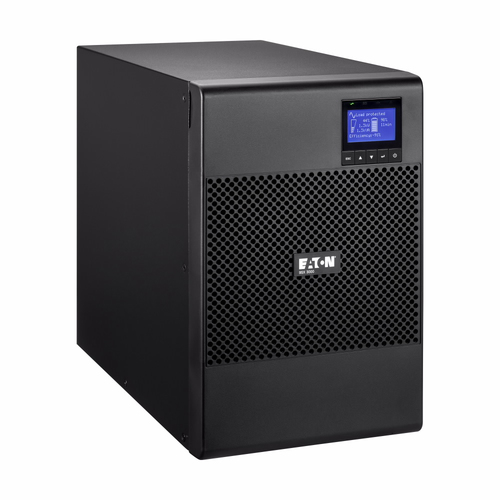

Eaton 9SX3000IBS UPS, 3 kVA Online Double-Conversion, 2700 W Sine with Eaton
Never lose a single file again. The Eaton 9SX3000IBS is a 3 kVA, 2700 W online double-conversion UPS built for critical IT, networking, and medical gear. It supplies a pure sine wave output and instantly switches to battery power the moment the mains falters. If you run servers, storage arrays, or life-support equipment, you need a UPS that never lets the power quality slip, and Eaton delivers that peace of mind.
Usages
Use this UPS in a server room to keep virtual machines online during a blackout. It works well in a medical clinic to protect imaging equipment and patient monitors. Small businesses can connect networking switches and routers for continuous internet access. Home offices with multiple computers and NAS devices benefit from the clean power and short backup time. The tower form factor also fits well in workshops that run CNC machines or 3-D printers.
Benefits
- Instant power transfer prevents any interruption to your critical devices.
- Pure sine wave output protects sensitive electronics from distortion.
- Energy-saving ECO mode lowers electricity costs during normal operation.
- Quiet 45 dB operation keeps the workspace comfortable.
- Compact tower design saves floor space while delivering 3 kVA capacity.
Key Features
- Online double-conversion topology for continuous clean power.
- 2700 W (3 kVA) output capacity.
- Pure sine wave waveform with 3 % THD.
- 45 dB low noise level.
- ECO mode efficiency up to 97.4 %.
- 9 Ah sealed lead-acid battery with automatic test.
- Six minutes backup at full load.

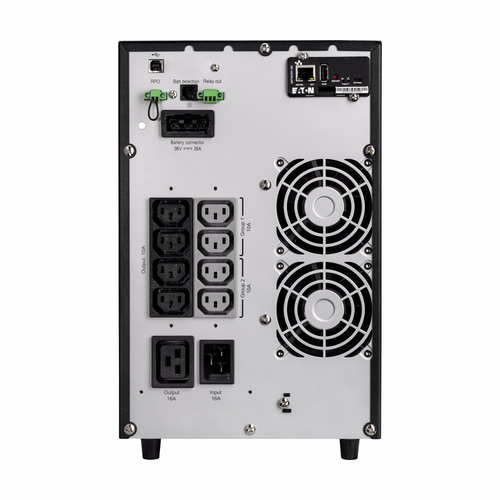

- One RS-232 serial port and one USB Type-B port for monitoring.

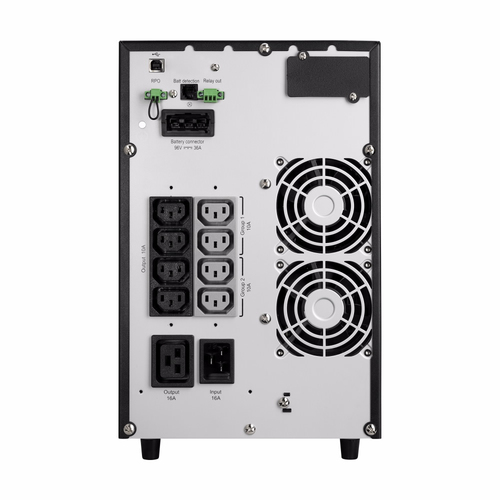

- Nine AC outlets (C13 and C19 couplers) for flexible connections.
- Input range 140-276 V, output range 200-240 V, 50/60 Hz.
Specifications
| Features |
| Power protection features |
Overdischarge |
| Noise level |
45 dB |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| ECO mode |
Yes |
| Output power factor |
0.9 |
| Input power factor |
0.99 |
| Power factor |
0.9 |
| Efficiency (ECO mode) |
97.4% |
| Efficiency |
92.4% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
140 V |
| Waveform |
Sine |
| Output power |
2700 W |
| Output power capacity |
3 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port type |
USB Type-B |
| USB port |
Yes |
| AC outlets quantity |
9 AC outlet(s) |
| Power plug |
C20 coupler |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Battery capacity |
9 Ah |
| Automatic battery test |
Yes |
| Typical backup time at full load |
6 min |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Cable length |
1.8 m |
| Product colour |
Black |
| Form factor |
Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 96% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
TUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC |
| Compliance certificates |
CE |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
No |
| Sustainability |
| Sustainability compliance |
Yes |
| Weight & dimensions |
| Weight |
33.8 kg |
| Height |
490 mm |
| Depth |
575 mm |
| Width |
320 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
