Imagine losing your critical data the moment the power flickers. That fear is real for anyone who runs servers, medical equipment, or a busy office. The Eaton 9SX3000IRBS Online UPS 3 kVA, 2700 W, Sine Output is built to keep your devices running without interruption. It gives you clean, reliable power so you never have to worry about a sudden shutdown.
Eaton 9SX3000IRBS Online UPS 3 kVA, 2700 W, Sine Output
Power spikes, brownouts, and total outages can damage sensitive electronics and cause costly downtime. This problem matters because every minute of lost operation can mean lost revenue, lost patients, or lost data. The Eaton online UPS uses double-conversion technology to filter the power completely, delivering a pure sine wave that protects your equipment. It also offers an ECO mode that saves energy while still providing full protection.
Benefits
- Instant backup power keeps workstations and servers online during outages.
- Pure sine wave output prevents overheating and extends the life of connected devices.
- High efficiency in ECO mode lowers electricity bills without sacrificing safety.
- LCD display and simple controls let you monitor status at a glance.
- Compact rack-mount or tower design fits any data centre or office space.
Usages
The UPS is ideal for small to medium server rooms that need continuous uptime. It works well with medical imaging devices that require stable power for accurate results. IT closets, networking gear, and storage arrays all benefit from the clean output. Even a busy office with many computers and printers can use the nine AC outlets to protect daily work.
Key Features
- 3 kVA / 2700 W continuous power rating.
- Online double-conversion topology for full isolation.
- Output THD 3 % for low distortion sine wave.
- Input voltage range 140 V - 276 V, output 200 V - 240 V.
- 45 dB noise level for quiet operation.
- 97.5 % efficiency in ECO mode, 92 % normal efficiency.

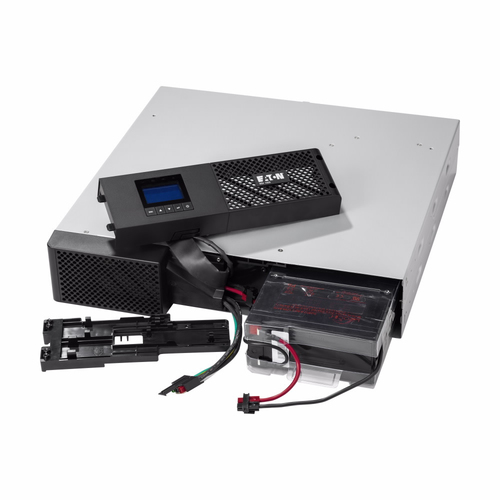

- 9 Ah sealed lead-acid battery with automatic test.
- Three-minute backup at full load, expandable to six batteries.
- LCD interface with one serial (RS-232) and one USB-type B port.

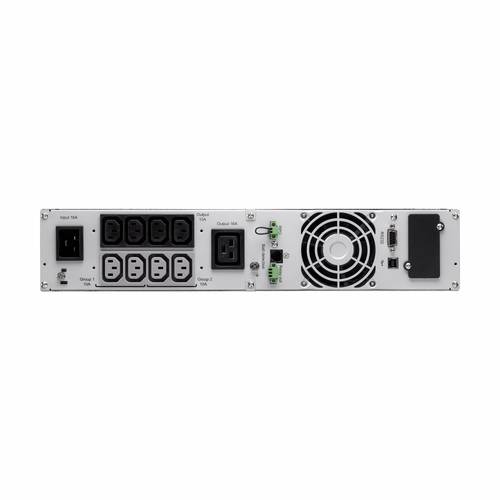

- Nine AC outlets (C13 and C19 couplers) for flexible connections.

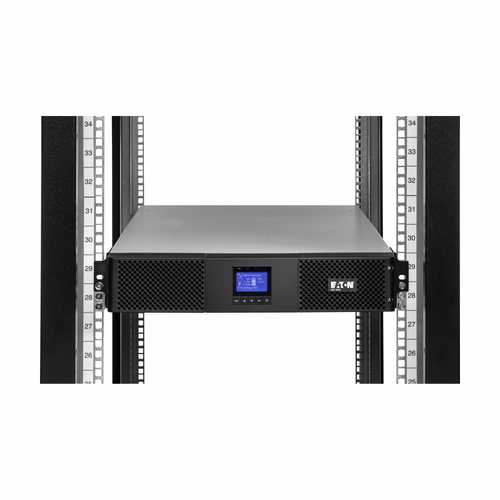

- Rackmount kit included; can also be used as a tower.
- Certified to TUV, UL, CE and other international standards.
Specifications
| Features |
| Power protection features |
Overdischarge |
| Noise level |
45 dB |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| ECO mode |
Yes |
| Output power factor |
0.9 |
| Input power factor |
0.99 |
| Power factor |
0.9 |
| Efficiency (ECO mode) |
97.5% |
| Efficiency |
92% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
140 V |
| Waveform |
Sine |
| Output power |
2700 W |
| Output power capacity |
3 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port type |
USB Type-B |
| USB port |
Yes |
| AC outlets quantity |
9 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Battery capacity |
9 Ah |
| Automatic battery test |
Yes |
| Typical backup time at full load |
3.5 min |
| Number of batteries supported |
6 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Cable length |
1.8 m |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 96% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
TUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC |
| Compliance certificates |
CE |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Weight & dimensions |
| Weight |
34 kg |
| Height |
34.6 mm |
| Depth |
412 mm |
| Width |
214 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
