Power cuts and voltage spikes can shut down computers, damage servers, and cause costly data loss. When a business loses power, work stops and customers lose trust. The Eaton 9SX5KiRT 5kVA 4500W Online Double Conversion UPS stops those problems. It gives clean, uninterrupted electricity so your equipment stays on and safe.

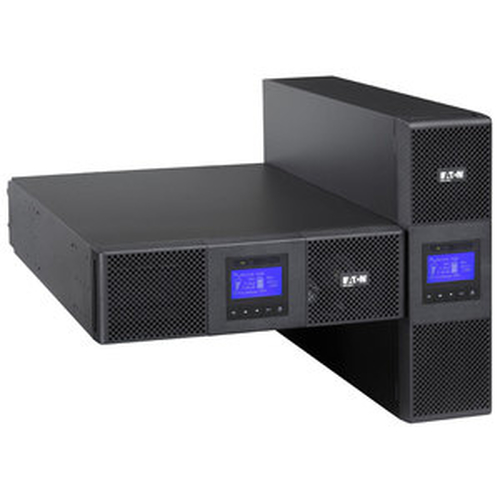

Eaton 9SX5KiRT 5kVA 4500W Online Double Conversion UPS with Eaton
Never lose data again. This UPS is a high-power battery backup that converts incoming AC to DC and back to AC in real time. It is built for servers, storage arrays, medical devices, and networking gear that cannot tolerate any power dip. If your power supply falters, the Eaton unit steps in instantly, keeping every connected device running without a glitch.
Usages
The UPS fits in a data-center rack to protect rows of servers, or it can sit on a floor as a tower for a small office. It is ideal for hospital imaging machines that need stable power, for factory control panels that run 24/7, and for telecom cabinets that keep phone and internet lines alive during outages. Anywhere a computer or electronic system must stay on, this unit works.
Benefits
- Zero interruption - your equipment never sees a power drop.
- Pure sine-wave output protects sensitive electronics and extends their life.
- 98% efficiency reduces electricity costs and heat buildup.
- Quiet operation at 45 dB keeps the workspace comfortable.
- LCD screen and USB port let you monitor status and manage settings easily.
Key Features
- 5 kVA / 4500 W power capacity for heavy loads.
- Online double-conversion design delivers continuous clean power.
- High efficiency of 98 % saves energy.
- Noise level only 45 dB for a quiet environment.
- 10 AC outlets - eight C13 and two C19 connectors.
- LCD display shows voltage, load, battery status.
- RS-232 and USB 2.0 ports for remote monitoring.
- Input voltage range 200-276 V, output 200-240 V.
- Output THD 2 % for low distortion power.
- Operating temperature 0-40 C for most indoor sites.
- Rackmount or tower form factor fits any installation.
- Weight 48 kg, dimensions 440 mm 130 mm 685 mm.
Specifications
| Features |
| Noise level |
45 dB |
| Input current Total Harmonic Distortion (THD) |
5% |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Crest factor |
3:1 |
| Efficiency |
98% |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
176 V |
| Output power |
4500 W |
| Output power capacity |
5 kVA |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
0 |
| RS-232 ports |
1 |
| USB 2.0 ports quantity |
1 |
| AC outlets quantity |
10 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Design |
| Display type |
LCD |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 CE, CB (TUV), UL |
| Safety regulation & standards |
| Safety |
IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Weight & dimensions |
| Weight |
48 kg |
| Height |
440 mm |
| Depth |
685 mm |
| Width |
130 mm |
| Other features |
| Nominal input voltage |
200-240 V |
| Nominal output voltage |
200-240 V |
| Operating temperature (T-T) |
0 - 40 °C |
| Output connections |
8 x IEC-320-C13 & 2 x IEC-320-C19 |
