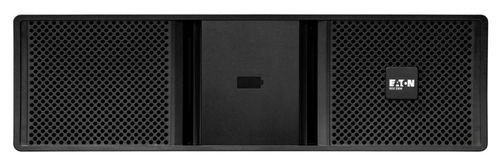

Eaton 9SXEBM180RT3UG2 180V Rackmount/Tower Battery Module

Imagine a data center that loses power for just a few seconds. Without a reliable backup, servers shut down, data can be lost, and downtime costs rise. The Eaton 9SXEBM180RT3UG2 180V Rackmount/Tower Battery Module is built to keep your equipment running when the grid fails. It plugs into an Eaton UPS and supplies clean, uninterrupted power so you never have to worry about sudden outages.

Eaton 9SXEBM180RT3UG2 180V Rackmount/Tower Battery Module

Many users find that their existing battery packs do not hold enough charge to bridge the gap between a power loss and generator start-up. When that gap grows, critical systems can crash and data may be corrupted. This problem matters because every minute of downtime can cost thousands of dollars and damage reputation. The Eaton UPS module adds 180 V of sealed-lead-acid capacity in a compact 3U form. It works with double-conversion UPS units to deliver pure sine wave power, giving you a clear, reliable bridge until full power returns.

Usages of Eaton

The battery module fits neatly into standard 19-inch racks or can stand as a tower in small closets. It is ideal for data centers that need continuous uptime, telecom rooms that power switching gear, industrial control panels that run machinery, medical imaging suites that cannot afford interruptions, and office networks that must stay online during storms. In each case the module supplies the extra minutes needed for generators or alternate sources to kick in.

Benefits

• Provides up to several minutes of clean power, protecting equipment from sudden loss.
• Works with existing Eaton UPS systems, so no extra wiring is required.
• Compact 3U size saves rack space while delivering high voltage capacity.
• Sealed lead-acid design needs little maintenance and lasts for many years.
• Included rack-mount kit makes installation fast and secure.

Key Features

• 180 V output voltage for high-power UPS units.
• Pure sine wave waveform ensures safe power for sensitive devices.
• Double-conversion (online) UPS topology compatibility.
• Sealed Lead Acid (VRLA) battery technology for durability.
• Terminal power plug and C19 coupler for flexible connections.
• 3U rack capacity with a sturdy black enclosure.
• Comes with a complete rack-mounting kit.
• IEC/EN 62040-1, -2, -3, CE, cULus, UKCA certifications for global compliance.
• Weight 65.7 kg, height 130 mm, depth 636 mm, width 440 mm.
• Quick installation guide included to speed up setup.
