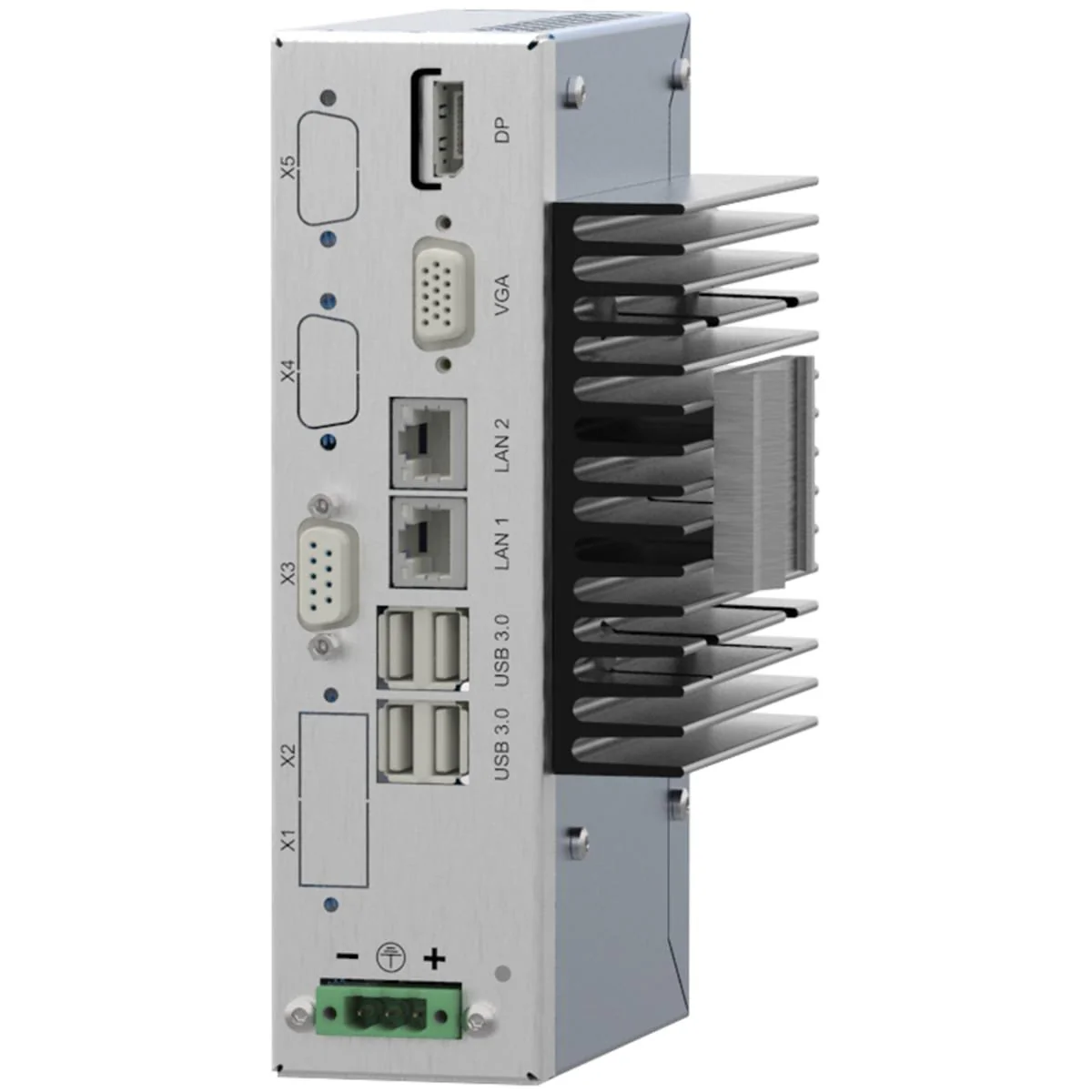

Elma ProSys-5102 is a compact, fanless industrial embedded computing platform
ProSys-5102 is a compact Fanless industrial PC ready platform with a powerful CPU for various industrial uses, as process control, security, digital signage, IoT edge points and more. The large amount of I/Os enables connectivity for most applications.
Features:
- CPU Intel® ULT
- Up to 16 GB RAM
- Fanless design
- Rich I/O combination
- Industrial power Input 16 - 36 VDC
- Optional DIN rail mounting on side or rear
- Ready for use in industrial environments
Benefits:
- 2x GbE ports
- Excellent interaction with other components of the ProSys product family
- Compact profile design
- Various mounting options
- Adjustible heat sink fin
Specifications:
| CPU |
Intel® Core™ i5-7300U Dual-Core 2.6, Intel® Core™ i7-7600U Dual-Core 2.8, 3.5 GHz (15 W) |
| Memory |
1x DDR4 up to 16 GB |
| Graphics |
Intel® HD Graphics GT Series, OpenGL 5.0, Direct X 12, OpenCL 2.1 |
| Video Outputs |
1x VGA (resolution up to 1920 x 1200 @ 60 Hz),
1x LVDS/eDP (dual channel 48-bit, resolution up to 1920 x 1200 @ 60 Hz),
1x DP++ (resolution up to 4096 x 2304 @ 60 Hz)
|
| Storage |
Up to 512 GB M.2 2242 key B (SATA or NVMe), 1x SATA 3.0 (up to 6 Gb/s), 1x SATA Power |
| I/O Connection |
|
| Front panel |
4x USB 3.0, 1x VGA, 1x DP++, 2x GbE LAN |
| Internal |
1x RS-232/422/485, 2x USB 2.0, 1x LVDS, 1x LCD/Inverter Power, 1x Audio (Line-out / MIC-in),
1x 8-bit DIO, 1x SMBus, 1x mPCIe (Full-size) (USB/PCIe) with SIM slot (option),
1x M.2 2242 Key B (PCIe/USB 2.0/SATA 3.0), 1x M.2 2230 Key E (USB/PCIe)
|
| Audio |
Realtek ALC888S |
| Power |
16 - 36 VDC Input via Würth Connector WR-TBL 3175 |
| Physical |
186 mm x 109.4 mm x 74 mm (heatsink included) |
| Environmental |
|
| Operating Temperature |
Intel® Core™ i5-7300U: 0° C to +60 °C (with 100 mm heatsink),
Intel® Core™ i7-7600U: 0 °C to +60 °C (with 100 mm heatsink)
|
| Storage Temperature |
-40 °C to +85 °C |
| Humidity |
5 to 90 % RH, non-condensing |
| Operating Systems |
Windows 10, Windows IoT, Linux |
| Certifications |
EN55022 class B |
| Ordering number |
063-502 Intel® Core™ i5-7300U, 063-519 Intel® Core™ i7-7600U |
