Imagine a factory floor where data stops at the sensor and never reaches the cloud. That gap can cause missed alerts, wasted energy, and lost profit. The Factbird EDGE IIoT Gateway AI Ready Industrial Edge Device LTE WiFi 6E closes that gap. It collects, processes, and sends data in real time, giving you control over machines, safety systems, and production lines. If you need reliable edge computing that works in harsh environments, this device is the answer.

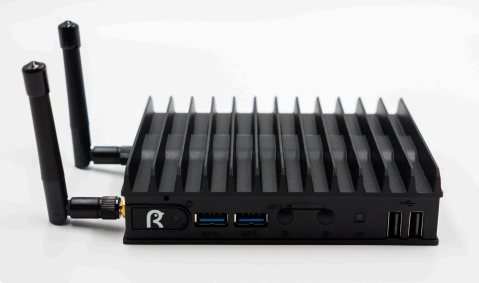

Factbird EDGE IIoT Gateway AI Ready Industrial Edge Device LTE WiFi 6E
Many industrial sites struggle with slow, unreliable connections and limited processing power at the edge. When data cannot be acted on quickly, downtime rises and maintenance costs grow. Factbird solves this problem by offering a compact, fanless gateway that runs AI models locally, supports LTE and Wi-Fi 6E, and provides dual Gigabit Ethernet with PoE. The result is fast, secure communication and intelligent decisions made right where the data is generated.
Usages of Factbird
The gateway fits into any setting that needs edge intelligence. In a manufacturing line it can monitor motor temperature and shut down a machine before it fails. In a smart building it aggregates sensor data to optimize HVAC and lighting. Remote oil rigs can use the LTE link to send critical alerts without a wired network. Even agricultural farms can connect soil sensors and run predictive irrigation models on the device.
Benefits
- Instant local AI processing reduces latency and avoids cloud bottlenecks.
- Built-in LTE and Wi-Fi 6E keep you connected even in remote locations.
- Fanless design and MIL-STD-810G durability survive dust, vibration, and temperature swings.
- Power over Ethernet options simplify wiring and lower installation costs.
- Easy VESA or DIN-rail mounting lets you place the device wherever space is limited.
Key Features
- Dimensions 132.8 100 34.8 mm, weight about 420 g.
- Input voltage 9 V to 42 V DC with locking power jack.
- Passive cooling, no fan, silent operation.
- IP20 rating for indoor protection.
- LTE Cat 1 bis with global SIM for cellular backup.
- Wi-Fi 6E (802.11ax) for high-speed wireless.
- Bluetooth 5.2 for short-range device pairing.
- Two Gigabit Ethernet ports plus two PoE-enabled GbE LAN ports.
- Four USB 2.0 and two USB 3.1 Type-A ports for peripherals.
- HDMI 1.4b up to 3840 2160 @ 30 Hz and Mini DisplayPort 1.2 up to 4096 2160 @ 60 Hz.
Specifications
| Category |
Specification |
Details |
| Physical Characteristics |
Dimensions (LxWxH) |
132.8 x 100 x 34.8 mm |
| |
Weight |
~ 420 gr. |
| |
Cooling |
Fanless, passive cooling |
| |
IP Rating |
IP20 |
| |
Mounting |
VESA/DIN Rail mount options |
| Power |
Input Voltage |
9V – 42V DC |
| |
Connector |
5.5 mm power jack with locking |
| |
Power Supply |
Universal AC wall mount power supply included |
| Operating Environment |
Operating Temperature |
0°C to 45°C |
| |
Humidity |
5% – 95% non-condensing |
| |
Compliance |
MIL-STD-810G |
| Connectivity |
Cellular |
LTE Cat 1 bis with global SIM card |
| |
Wi-Fi |
Wi-Fi 6E (802.11ax) |
| |
Bluetooth |
BT 5.2 |
| |
Ethernet |
2× Gigabit Ethernet ports (RJ45) |
| |
Optional Ethernet |
2× GbE LAN with PoE PSE (Power Sourcing Equipment) |
| |
USB Ports |
4× USB 2.0 (Type A), 2× USB 3.1 (Type A) |
| External Interfaces |
Display Output (HDMI) |
HDMI 1.4b (up to 3840 × 2160 @ 30Hz) |
| |
Display Output (mDP) |
Mini DisplayPort 1.2 (up to 4096 × 2160 @ 60Hz) |
