Many factories and building managers struggle with connecting several machines to a single control system. When the wiring is messy or the ports do not match, downtime rises and maintenance costs climb. This matters because every minute of lost production hurts the bottom line. The FlexEdge Automation Controller 3Sled with RS-232 and Dual RS-485 Ports gives you a clean, reliable link between devices, so you can keep operations running smoothly.

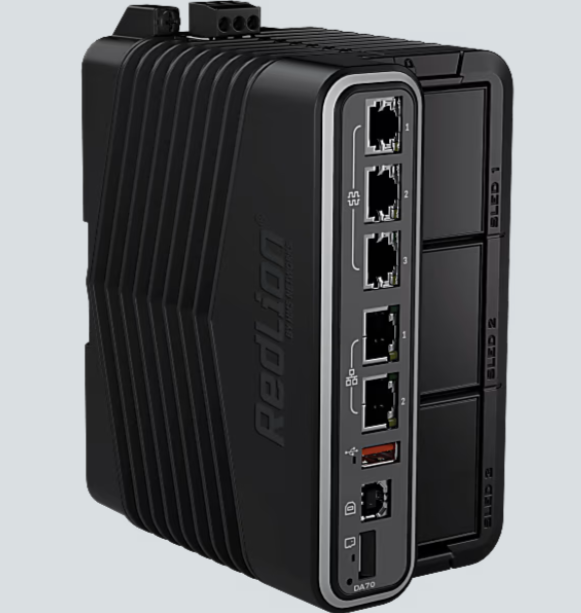

Red Lion FlexEdge Automation Controller 3Sled with RS-232 and Dual RS-485 Ports with FlexEdge
Imagine a small box that talks to every piece of equipment on your shop floor. This controller is that box. It supports one RS-232 port and two RS-485 ports, letting you link legacy PLCs, sensors, and modern HMI panels without extra adapters. If you have a tangled network of serial devices, you need a single point that can manage the traffic and keep data accurate. FlexEdge does exactly that, turning a chaotic wiring mess into a tidy, dependable system.
Usages
The controller fits in a DIN rail and works in harsh industrial environments. Use it to connect conveyor belt drives, temperature sensors, and remote I/O modules in a manufacturing line. It also serves building automation, linking HVAC controllers and lighting panels. Because it runs on 12-24 VDC, it can be powered from existing panels. The built-in USB ports let you update firmware or load configuration files quickly. Whether you are automating a small workshop or a large plant, this device scales to your needs.
Benefits
- Reduces wiring complexity and saves installation time.
- Improves reliability with protected IP30 housing.
- Allows easy firmware updates via USB flash drive.
- Operates in extreme temperatures from -40 C to 75 C.
- Comes with a 3-year warranty for peace of mind.
Key Features
- 1 RS-232, 2 RS-422/485 ports for versatile connectivity.
- DIN-rail mounting with included bracket.
- 12-24 VDC input, Class 2 source, wide voltage tolerance.
- IP30 protection class for dust-resistant operation.
- USB Type-A and Type-B ports for configuration and diagnostics.
- Supports ATEX II 3 G Ex ec IIC T4 Gc and UL certification.
- Built-in 3 V lithium coin cell battery with 5-year life.
- Compliant with CE, UKCA, RoHS, and EN standards.
- Rugged housing of plastic and metal for vibration resistance.
Specifications
| Category |
Parameter |
Value |
| CRITICAL SPECS |
Brand |
RED LION |
| |
Item Number |
DA70A0GNNNNNN040 |
| |
Input Voltage (V) |
12 to 24 VDC +/- 15%, Class 2 Source |
| |
Connectors / I/O |
1x RS232, 2x RS422/485, 1x USB type A, 1x USB type B |
| |
Operating Temp |
-40 °C to 75 °C |
| |
Mounting |
DIN rail mount (bracket included) |
| FUNCTIONAL |
Protection Class IP |
IP30 |
| |
Flash Drive |
Yes |
| |
Battery Description |
3 V Lithium coin cell (5yr life); Replace with Red Lion CRA000 BT3V0 00000 |
| |
Housing Materials |
Plastic, Metal Housing |
| |
Warranty (years) |
3 |
| COMPLIANCE |
ATEX / UL |
Yes (ATEX: II 3 G Ex ec IIC T4 Gc / UL: E317425) |
| |
CE / UKCA / RoHS |
Yes |
| |
Environment |
EN 60664-1, EN 61326-1 |
| |
Vibration and Shock |
IEC 60068-2-27 (15 g); IEC 60068-2-6 (2 g) |
| |
Humidity / Altitude |
0-85% RH; 2000 meters max |
| LOGISTICS |
HS Code |
8517620000 |
| |
Country of Origin |
United States of America |
| |
ECCN / Dual Use |
EAR99 / No |
| |
Net Weight (g) |
0.01 g |
| |
Packed Dimensions |
254 x 133.35 x 304.8 mm |
| |
Packaging Material |
Cardboard |
