| Description |

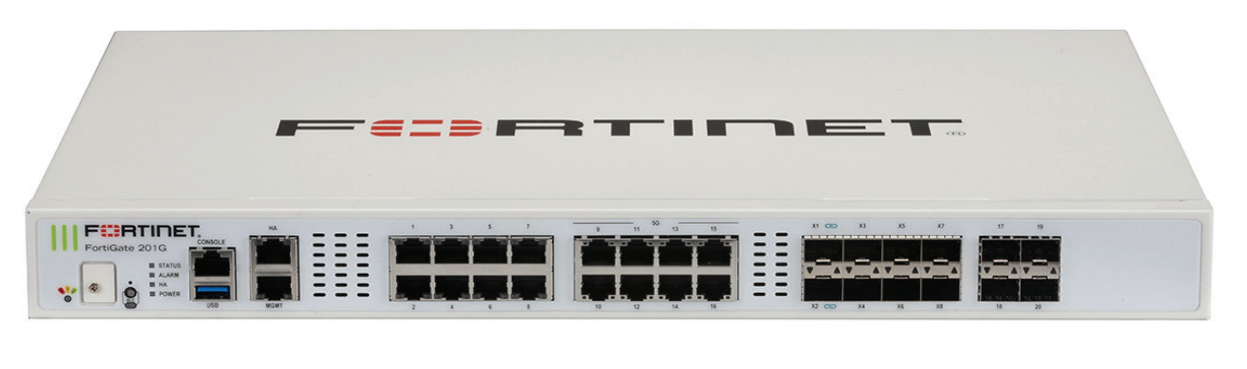

10x GE RJ45 (including 1x MGMT port, 1x HA port, 8x switch ports),
4x GE SFP slots, 8x 5GE RJ45, 8x 10GE SFP+ slots, NP7Lite and
CP10 hardware accelerated.
|
| Interfaces and Modules |
|
| GE RJ45 Ports |
8 |
| GE RJ45 Management / HA |
1 / 1 |
| 5/2.5/GE RJ45 Ports |
8 |
| GE SFP Slots |
4 |
| 10/GE SFP/+ FortiLink Slots (default) |
8 |
| USB Port |
1 |
| Console Port |
1 |
| Onboard Storage |
0 |
| Trusted Platform Module (TPM) |
supported |
| Bluetooth Low Energy (BLE) |
supported |
| Signed Firmware Hardware |
supported |
| Included Transceivers |
0 |
| System Performance — Enterprise Traffic Mix |
|
| IPS Throughput 2 |
9 Gbps |
| NGFW Throughput 2, 4 |
7 Gbps |
| Threat Protection Throughput 2, 5 |
6 Gbps |
| System Performance and Capacity |
|
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
39 / 39 / 26.5 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
39 / 39 / 26.5 Gbps |
| Firewall Latency (64 byte, UDP) |
4.36 μs |
| Firewall Throughput (Packet per Second) |
39.75 Mpps |
| Concurrent Sessions (TCP) |
11 Million |
| New Sessions/Second (TCP) |
400 000 |
| Firewall Policies |
10 000 |
| IPsec VPN Throughput (512 byte) 1 |
36 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
2000 |
| Client-to-Gateway IPsec VPN Tunnels |
16 000 |
| SSL-VPN Throughput6 |
3 Gbps |
|
Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel Mode)
|
500 |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 |
7 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 |
7100 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 |
900 000 |
| Application Control Throughput (HTTP 64K) 2 |
27.8 Gbps |
| CAPWAP Throughput (HTTP 64K) |
37.5 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 25 |
| Maximum Number of FortiSwitches Supported |
64 |
| Maximum Number of FortiAPs (Total / Tunnel) |
256 / 128 |
| Maximum Number of FortiTokens |
5000 |
| High Availability Configurations |
Active-Active, Active-Passive, Clustering |
| Dimensions and Power |
|
| Height x Width x Length (inches) |
1.75 x 17.0 x 15.0 |
| Height x Width x Length (mm) |
44.45 x 432 x 380 |
| Weight |
14.11 lbs (6.4 kg) |
| Form Factor (supports EIA/non-EIA standards) |
Rack Mount, 1 RU |
| AC Power Consumption (Average / Maximum) |
145 W / 175 W |
| AC Power Input |
100–240V AC, 50/60Hz |
| AC Current (Maximum) |
2A @100VAC, 1.2A @240VAC |
| Heat Dissipation |
597.12 BTU/h |
| Power Supply Efficiency Rating |
80Plus Compliant |
| Redundant Power Supplies |
(Default dual non-swappable AC PSU for 1+1 Redundancy) |
| Operating Environment and Certifications |
|
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
-31°F to 158°F (-35°C to 70°C) |
| Humidity |
5% to 90% non-condensing |
| Noise Level |
LPA 48 dBA / LWA 55 dBA |
| Forced Airflow |
Side and Front to Back |
| Operating Altitude |
Up to 10 000 ft (3048 m) |
| Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certification |
USGv6/IPv6 |
