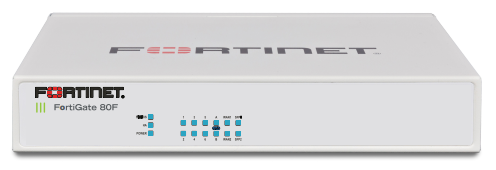

Fortinet FortiGate-80F Next-Generation Firewall 8xGE RJ45, 2xShared Media Ports
Fortinet FortiGate-80F Next-Generation Firewall 8xGE RJ45, 2xShared Media Ports

Fortinet FortiGate-80F Next-Generation Firewall 8xGE RJ45, 2xShared Media Ports

UK Free Shipping UK Free Shipping over £249


Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: MNHO-272

MPN #: FG-80F

Tired of network attacks slowing your business and causing costly downtime? The Fortinet FortiGate-80F gives you a powerful shield that stops threats before they reach your data. It is a next-generation firewall designed for small to midsize offices that need fast, reliable protection without a complex setup. If you are worried about ransomware, malicious traffic, or unsecured Wi-Fi, this device is the answer you have been looking for.



Fortinet FortiGate-80F Next-Generation Firewall 8xGE RJ45, 2xShared Media Ports

Many small businesses struggle with limited IT staff and budget, yet they still face the same cyber threats as large enterprises. Without a proper firewall, malicious traffic can slip through, data can be stolen, and productivity drops. The FortiGate-80F solves this problem by delivering enterprise-grade security in a compact, easy-to-manage box. It inspects traffic at high speed, blocks attacks, and lets you control applications, all from a single console. The result is a safer network that runs smoothly and costs far less than hiring a full-time security team.





Key Features
    • 8 GE RJ45 ports for wired connections.
    • 2 shared media RJ45/SFP ports for flexible WAN options.
    • 1 Gbps NGFW throughput for smooth traffic handling.
    • 1.4 Gbps IPS throughput to inspect and block threats.
    • Supports up to 1.5 million concurrent sessions.
    • Built-in SSL-VPN and IPsec-VPN for secure remote access.
    • USB 3.0 port for log storage or additional modules.
    • Fanless design with 0 dBA noise level.
    • Power input 12 V DC with optional dual-redundancy.
    • Supports up to 10 virtual domains for multi-tenant environments.
    • Compatible with FortiSwitches and FortiAPs for expanded networking.
    • Active-Active and Active-Passive high-availability clustering.



Specifications
Description

8 x GE RJ45 ports, 2 x RJ45/SFP shared media WAN ports.

Interfaces and Modules
GE RJ45/SFP Shared Media Pairs 2
GE RJ45 Internal Ports 6
GE RJ45 FortiLink Ports (Default) 2
USB Ports 3.0 1
Console (RJ45) 1
Trusted Platform Module (TPM) Supported
Bluetooth Low Energy (BLE) Supported
System Performance — Enterprise Traffic Mix
IPS Throughput 2 1.4 Gbps
NGFW Throughput 2, 4 1 Gbps
Threat Protection Throughput 2, 5 900 Mbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 10 / 10 / 7 Gbps
Firewall Latency (64 byte, UDP) 3.23 μs
Firewall Throughput (Packet per Second) 10.5 Mpps
Concurrent Sessions (TCP) 1.5 Million
New Sessions/Second (TCP) 45 000
Firewall Policies 5000
IPsec VPN Throughput (512 byte)1 6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 2500
SSL-VPN Throughput 950 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
SSL Inspection Throughput (IPS, avg HTTPS)3 715 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)3 700
SSL Inspection Concurrent Session (IPS, avg HTTPS)3 100 000
Application Control Throughput (HTTP 64K)2 1.8 Gbps
CAPWAP Throughput (HTTP 64K) 9 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 24
Maximum Number of FortiAPs (Total /Tunnel) 96 / 48
Maximum Number of FortiTokens 500
High Availability Configurations Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches) 1.6 x 8.5 x 7.0
Height x Width x Length (mm) 40 x 216 x 178
Weight 2.4 lbs (1.1 kg)
Form Factor (supports EIA/non-EIA standards) Desktop/ Wall Mount/ Rack Tray
Operating Environment and Certifications
Input Rating 12V DC, 3A (dual redundancy optional)12V DC, 3A (dual redundancy optional)
Power Required (Redundancy Optional)

Powered by up to 2 External DC Power Adapters (1 adapter included),

100–240V AC, 50/60 Hz

Maximum Current 115VAC/0.4A, 230VAC/0.2A
Power Consumption (Average / Maximum) 12.69 W / 15.51 W
Heat Dissipation 52.55 BTU/h
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Humidity 10% to 90% non-condensing
Noise Level Fanless 0 dBA
Operating Altitude Up to 7400 ft (2250 m)
Compliance FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications USGv6/IPv6
