When you need to measure tiny linear movements, a small error can ruin a whole project. In machining, assembly, or research, inaccurate readings cause waste, re-work, and lost time. The Fowler D-50S Pro Digital Display Dual Input Linear Error Correction Gauge Unit removes that risk by giving you true-to-scale numbers and correcting linear error automatically.

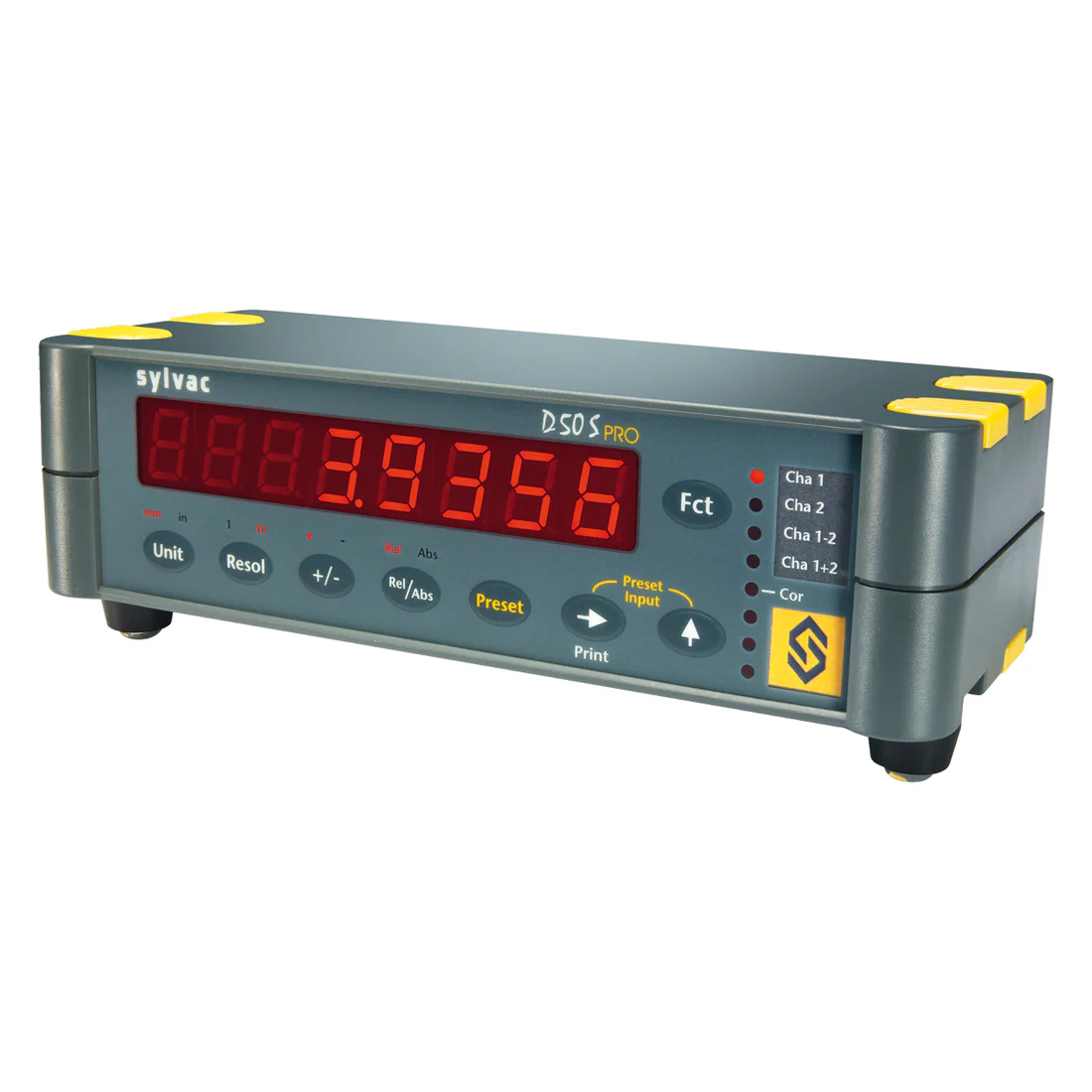

Fowler D-50S Pro Digital Display Dual Input Linear Error Correction Gauge Unit with Fowler
This gauge reads linear displacement with a resolution of 0.00001 inches or 0.0001 mm. It accepts two probe inputs, lets you switch between absolute and relative modes, and stores min, max, delta and tolerance values. If your work needs error correction, the PRO version does it for you, so you can trust every measurement without extra calculations. Fowler built this tool for engineers who cannot afford guesswork.
Key Features
- Digital LED/LCD display for clear reading.
- Resolution up to 0.00001 inches (0.0001 mm).
- Two simultaneous probe channels.
- Linear error correction (PRO version).
- Absolute and relative measurement modes.
- Reversible measuring direction.
- RS232C serial output for data logging.
- Optional foot pedal for hands-free operation.
- Industrial AC adapter power supply.
- IP40 protection rating for dusty environments.
Specifications:
| General Information |
|
| Model |
D-50S Pro Digital Display |
| Part Number |
546181420 |
| Manufacturer |
Fowler / Sylvac |
| Display & Measurement |
|
| Probe inputs |
2 channels |
| Measurement type |
Linear displacement display unit |
| Resolution |
Up to 0.00001" / 0.0001 mm |
| Functions |
Min / Max / Delta / Preset / Zero / Tolerance |
| Linear error correction |
Yes (PRO version feature) |
| Display type |
Digital LED/LCD (industrial display unit) |
| Measurement mode |
Absolute / Relative |
| Direction control |
Reversible measuring direction |
| Channels capability |
Up to 2 simultaneous probes |
| Interfaces & Connectivity |
|
| Data output |
RS232C serial output |
| Connectivity |
RS232C + probe interface |
| Foot pedal support |
Yes (optional) |
| Power |
|
| Power supply |
AC adapter |
| Environmental Conditions |
|
| Operating temperature |
+5°C to +40° |
| Storage temperature |
−20°C to +45°C |
| Protection rating |
IP40 |
| Physical Characteristics |
|
| Housing |
Industrial compact enclosure |
| Weight |
0.3 kg |
| Compatibility |
|
| Compatibility |
Sylvac inductive probes |
