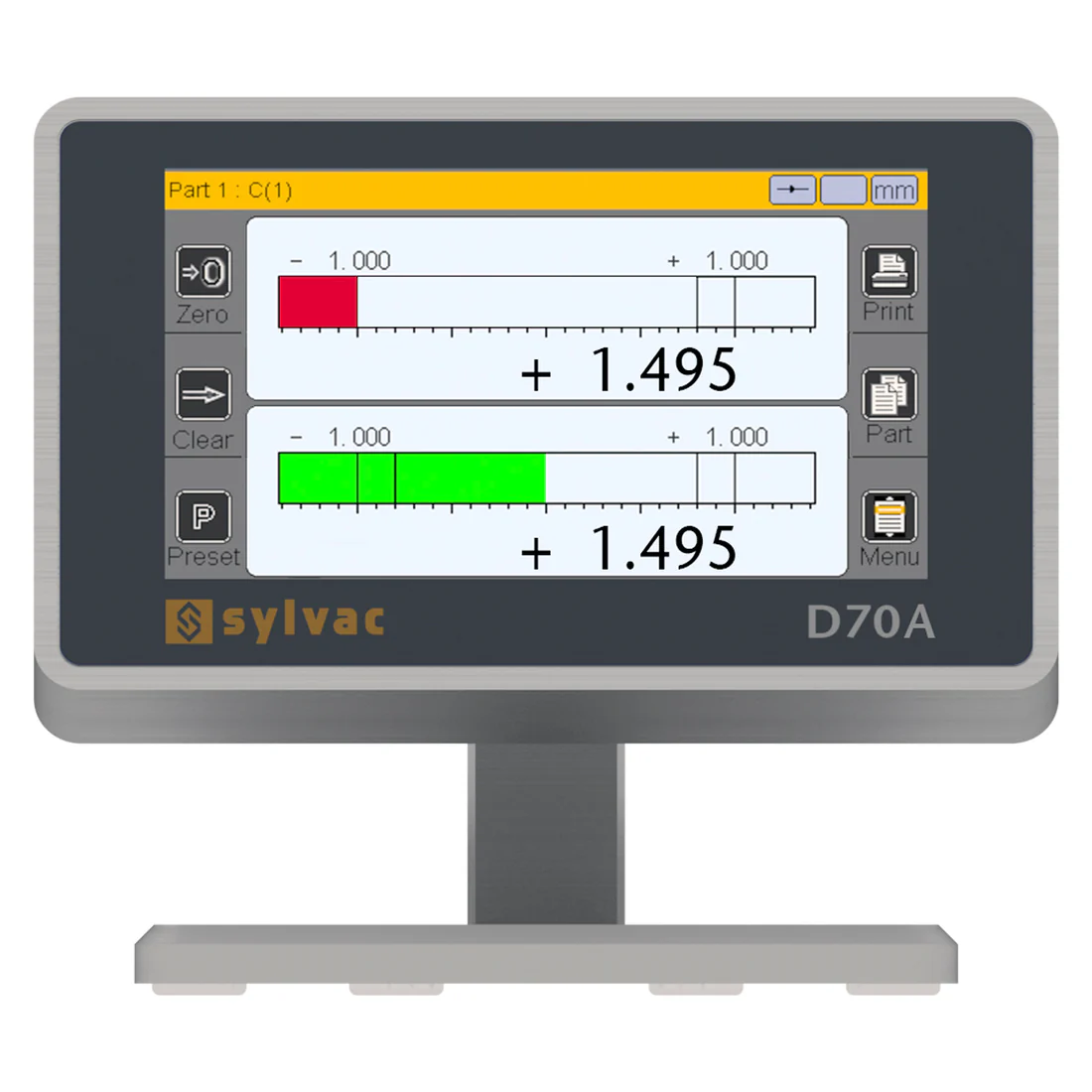

Fowler D70A Digital Display Two Input 4.3" Touchscreen Air & Plug Gauge Unit

Tired of guessing air pressure or plug gauge readings? The Fowler D70A Digital Display Two Input 4.3" Touchscreen Air & Plug Gauge Unit gives you instant, precise numbers on a clear screen. It connects two probes at once, so you can measure both air and plug gauges without swapping tools. If you need reliable data for quality checks, this unit removes the guesswork and saves you time.

Fowler D70A Digital Display Two Input 4.3" Touchscreen Air & Plug Gauge Unit

The main problem on the shop floor is inconsistent gauge readings that lead to scrap or rework. When a gauge shows a value that is off by even a small amount, the whole batch can be rejected. The D70A solves this by delivering direct, min, max and average values on a 4.3-inch color touchscreen. You also get analog bar-graph view, USB or RS232 export, and a QR-code calibration option, so the data stays accurate and easy to share.

Key Features

• 4.3-inch color touchscreen for easy reading.
• Two probe inputs for simultaneous measurements.
• Compatible with both air gauges and plug gauges.
• Resolution up to 0.00001 mm (0.01 m).
• Direct, Min, Max, Avg, Min-Max and calculation modes.
• Numeric display and analog bar-graph view.
• USB and RS232 communication ports.
• M-Bus support for MB-IO modules

.

Specifications
