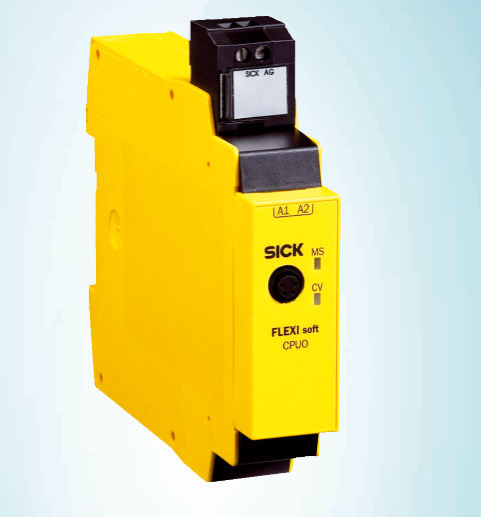

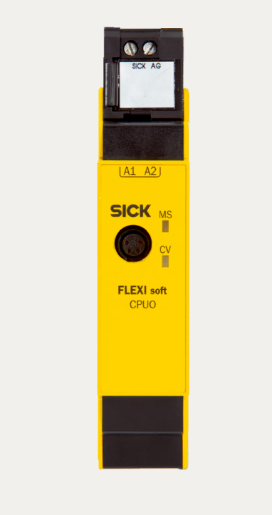

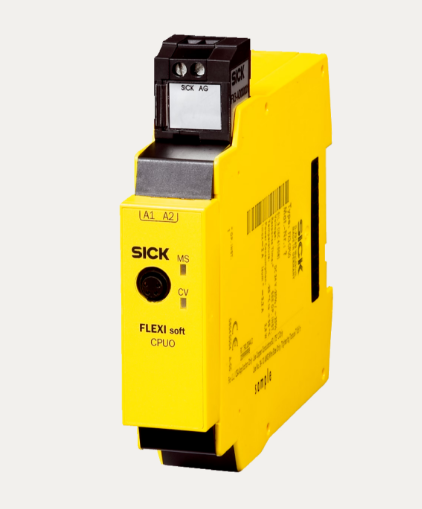

FX3-CPU000000 Safety Controller SIL3 PL e 24V DC Programmable

When a machine stops working because its safety system is not reliable, production slows down and workers are at risk. This problem hurts your bottom line and can lead to costly downtime or accidents. You need a controller that meets the highest safety standards while staying easy to program. The FX3-CPU000000 Safety Controller SIL3 PL e 24V DC Programmable gives you that clear, dependable solution.

FX3-CPU000000 Safety Controller SIL3 PL e 24V DC Programmable with Safety

Get the power to protect your equipment and people with a single, compact module. This controller is built for high-level Safety (SIL 3, PL e) and runs on 24 V DC, so you can trust it in demanding environments. If your line needs fast, reliable shutdowns and easy integration, this is the device that solves the problem.

Usages

The controller fits into many industrial settings. Use it on assembly robots that need instant emergency stop. Install it in conveyor systems where a fault must halt motion within milliseconds. Apply it to packaging machines that require continuous monitoring of safety gates. It also works for palletizers, pick-and-place cells, and any application that follows IEC 61508 or EN ISO 13849 safety standards.

Benefits

• Reduces downtime by providing fast, reliable safety shutdowns.
• Meets SIL 3 and PL e standards, keeping you compliant.
• Easy programming through Flexi Soft Designer saves engineering time.
• Low power consumption (< 2.5 W) lowers operating costs.
• Compact size frees up space in crowded control cabinets.

Key Features

• Safety integrity level SIL 3 (IEC 61508).
• Performance level PL e (EN ISO 13849).
• 24 V DC supply range 16.8 V - 30 V.
• System plug connection (plug-in spring terminals).
• RS-232 diagnostic port with M8 female connector.
• Protection class III for high voltage safety.
• IP20 enclosure rating for indoor use.
• Operating temperature -25 C to +55 C.
• Mission time rating of 20 years.
• Switch-on time 18 seconds.
• Complies with EU, UK, China RoHS and many other certifications.
• Data Act EU 2023/2854 compliance.

Specifications

Category	Parameter	Value
Module	Module Type	Main module
	Configuration method	Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer)
	Note	System plug ordered separately (see Accessories)
	Items supplied	Main module without system plug, Safety instruction, Operating instructions
Safety-related	Safety integrity level	SIL 3 (IEC 61508)
	Category	Category 4 (EN ISO 13849)
	Performance level	PL e (EN ISO 13849)
	PFH	1.07x 10^-9    (EN ISO 13849)
	TIME   (mission time)	20 years (EN ISO 13849)
Interfaces	System connection	System plug
	EFI interfaces	0
	Connection type	Plug-in spring terminals
	Config/Diagnostics	RS-232 (M8 female connector, 4-pin)
Electronics	Protection class	III (EN 61140)
	Type of voltage supply	PELV or SELV (Max 4 A limit)
	Supply voltage	24 V DC (16.8 V ... 30 V)
	Internal power consumption	≤ 2.5 W
	Overvoltage category	II (EN 61131-2)
	Switch-on time	≤ 18 s

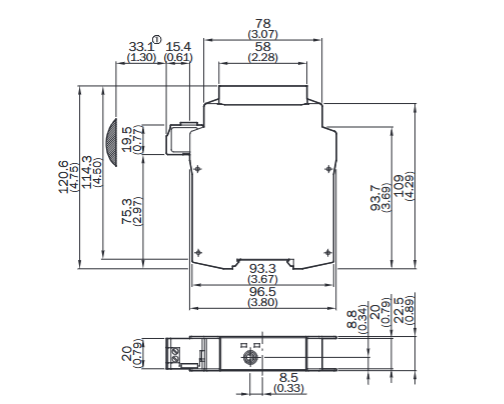

Mechanics	Dimensions (W x H x D)	22.5 mm x 96.5 mm x 120.6 mm
	Weight	111 g (± 5 %)
Ambient data	Enclosure rating	IP20 (EN 60529)
	Operating temperature	–25 °C ... +55 °C
	Storage temperature	–25 °C ... +70 °C
	Air humidity	≤ 95 %, Non-condensing
Certificates	Compliance	EU, UK, ACMA, China RoHS, CCC, UK-Type, cULus, KC Mark, cTUVus, S Mark, EC-Type
	Data Act	Regulation EU 2023/2854 compliant
Classifications	ECLASS (Multiple)	27243101 (Versions 5.1.4 through 12.0)
	ETIM (5.0 - 8.0)	EC001449
	UNSPSC 16.0901	321517
