Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Specifications
| Processor |
| Maximum internal memory supported by processor |
64 GB |
| Supported processor sockets |
Socket AM4 |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
AMD Ryzen 3000 Series |
| Processor socket |
Socket AM4 |
| Processor manufacturer |
AMD |
| Memory |
| Maximum internal memory |
64 GB |
| Supported memory clock speeds |
2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000 MHz |
| ECC сompatibility |
ECC & Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR4-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 10 |
| RAID support |
Yes |
| Supported storage drive interfaces |
M.2, PCI Express 3.0, SATA |
| Graphics |
| HDCP |
Yes |
| On-board graphics card |
No |
| Internal I/O |
| RGB LED pin header |
Yes |
| Number of chassis fan connectors |
2 |
| CPU fan connector |
Yes |
| Power fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Total number of SATA connectors |
3 |
| Number of SATA connectors |
0 |
| Number of SATA II connectors |
0 |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |

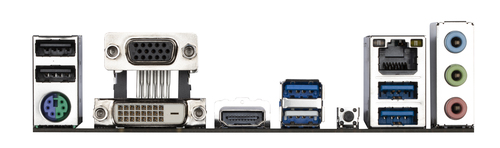

| Rear panel I/O ports |
| DVI-D ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Network |
| Wi-Fi |
No |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Product colour |
Black |
| Audio output channels |
7.1 channels |
| Motherboard chipset |
AMD A520 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| BIOS |
| Desktop Management Interface (DMI) version |
2.7 |
| System Management BIOS (SMBIOS) version |
2.7 |
| Clear CMOS button |
Yes |
| Clear CMOS jumper |
Yes |
| ACPI version |
5.0 |
| BIOS memory size |
128 Mbit |
| BIOS type |
UEFI AMI |
| Battery |
| Battery type |
CR2032 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells |
1 |
| Battery weight |
3 g |
| Lithium weight per battery |
0.07 g |
| Packaging data |
| Package weight |
740 g |
| Package height |
52 mm |
| Package depth |
235 mm |
| Package width |
265 mm |
| Weight & dimensions |
| Height |
35 mm |
| Depth |
205 mm |
| Width |
244 mm |
| Packaging content |
| Batteries included |
Yes |
| Other features |
| Maximum internal memory |
64 GB |
| mSATA ports quantity |
0 |
| Technical details |
| Warranty period |
3 year(s) |
