| General |
|
| Model |

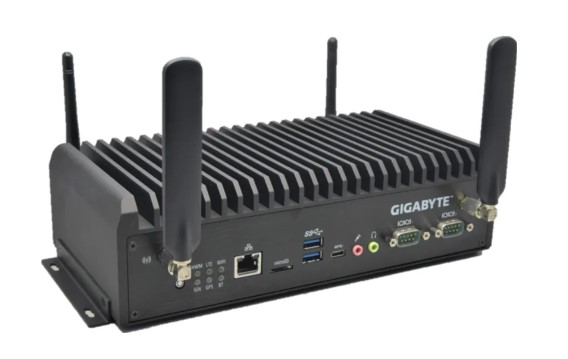

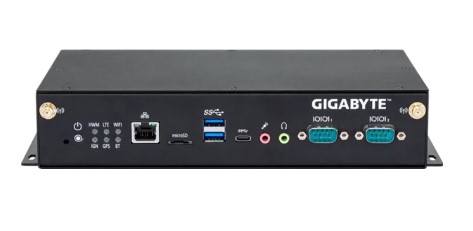

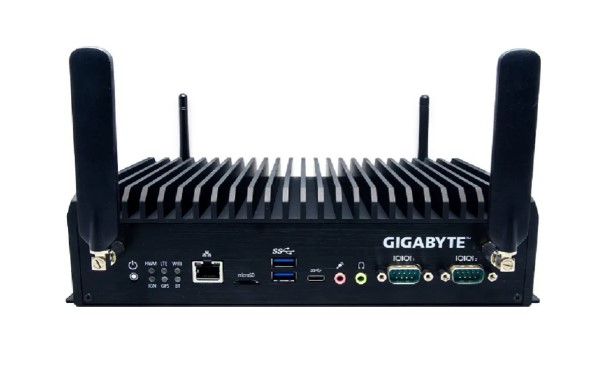

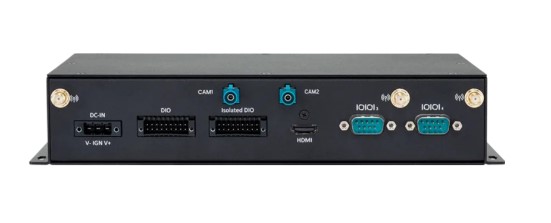

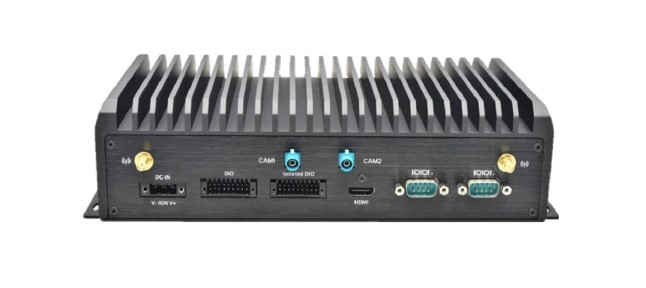

GB-TBOX-100-I |
| Operating System |
Linux Yocto |
| Optional Operating System |
Android (by request) |
| System Core |
|
| Processor |
NXP i.MX 8M Industrial |
| CPU |
Cortex®-A53 Quad-Core 1.3GHz |
| MCU |
Cortex®-M4 Single-Core 266MHz |
| Memory |
4GB LPDDR4-3200MT/s DRAM, 32-bit interface |
| NOR Flash |
32MB onboard |
| eMMC Storage |
32GB eMMC 5.0 |
| Micro SD |
1 × Micro SD socket |
| Graphics & Video |
|
| GPU |
GC7000L |
| Graphics API Support |
OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.2, Vulkan |
| Video Decoder |
4Kp60 HEVC/H.265 Main & Main10 |
| Video Decoder |
4Kp60 VP9 |
| Video Decoder |
4Kp30 AVC/H.264 |
| Video Decoder |
1080p60 MPEG-2, MPEG-4p2, VC-1, VP8, RV9, AVS, MJPEG, H.263 |
| Display |
|
| HDMI |
1 × HDMI 2.0a, up to 4096 × 2160 @60Hz |
| LVDS |
1 × Dual Channel LVDS, up to 1920 × 1080 @60Hz |
| MIPI-DSI |
1 × 4-lane MIPI-DSI, up to 1920 × 1080 @60Hz (Optional) |
| Sensors |
|
| IMU |
1 × 6-axis sensor |
| E-Compass |
1 × E-Compass sensor |
| Pressure Sensor |
1 |
| Proximity / Ambient Light Sensor |
1 |
| Temperature Sensor |
2 |
| Camera |
|
| CVBS/AHD Camera Support |
Up to 2 × CVBS/A-FHD cameras via M8 connector (Optional) |
| GMSL2 Camera Support |
Up to 2 × GMSL2 cameras via FAKRA connector (Optional) |
| Wireless Connectivity |
|
| Wi-Fi |
Wi-Fi 5 (IEEE 802.11a/b/g/n/ac), MIMO 2T2R |
| Bluetooth |
Bluetooth 5.0 with Bluetooth 2.1 + EDR compatibility |
| GNSS |
|
| GNSS Support |
GPS/QZSS, GLONASS, BeiDou, Galileo |
| Dead Reckoning |
GYRO sensor fusion dead reckoning |
| Cellular |
|
| LTE Module |
Optional 4G LTE |
| Cellular Standards |
GSM, TD-SCDMA, CDMA, WCDMA, TDD-LTE, FDD-LTE |
| Networking & Interfaces |
|
| Ethernet |
1 × RJ45 10/100/1000BASE-T (TSN support) |
| Audio Output |
1 × Line-out jack |
| Microphone Input |
1 × MIC jack |
| USB |
2 × USB 3.0 Type-A |
| USB Type-C |
1 × USB 3.0 Type-C with OTG |
| SD Card |
1 × Micro SD slot |
| CAN |
2 × CAN FD (5Mbps) |
| Serial Ports |
2 × RS232/422/485 (software selectable), 1 × RS232 (4-wire) |
| LIN |
2 × LIN (20Kbps) |
| Infrared Remote |
1 × IR |
| GPIO |
8-bit GPIO |
| Isolated Digital Input |
4-bit GPI |
| Isolated Digital Output |
4-bit GPO |
| M8 Connector |
2 × M8 (Optional, CVBS/AHD camera) |
| FAKRA Connector |
2 × FAKRA (Optional, GMSL/FPD-Link camera) |
| Expansion |
|
| Mini PCIe |
2 × Full-size Mini PCIe slots |
| SIM Slots |
2 × Nano SIM |
| Antenna Ports |
5 (Wi-Fi ×2, GPS ×1, LTE ×2) |
| Operating Environment |
|
| Operating Temperature |
-20°C to +65°C (-4°F to 149°F) |
| Operating Humidity |
10%–90%, non-condensing |
| Vibration |
IEC 60068-2-64, 3Grms, 5–500Hz, 1hr/axis |
| Storage Shock |
MIL-STD-810G Method 516.6, Procedure I, 20G half-sine, 15–23ms |
| Operating Shock |
IEC 60068-2-27, 50G half-sine, 11ms |
| Power |
|
| Input Voltage |
9–36V DC |
| Power Consumption |
TBD |
| Mechanical |
|
| Dimensions |
259mm (W) × 128mm (D) × 48.5mm (H) |
| Weight |
1.7kg |
| Mounting |
Wall mounting kit |
| VESA Mount |
100 × 100mm |
| Certifications |
|
| Compliance |
CE/FCC Class A |
