Finding a small computer that can run modern apps without lag can be frustrating. Many tiny PCs lack the power to handle multitasking, video editing, or gaming, so users end up buying a big tower or dealing with slow performance. The GMKtec NucBox M5 Ultra solves this by packing an AMD Ryzen 7 7730U into a pocket-size box, giving you desktop-class speed in a portable form.

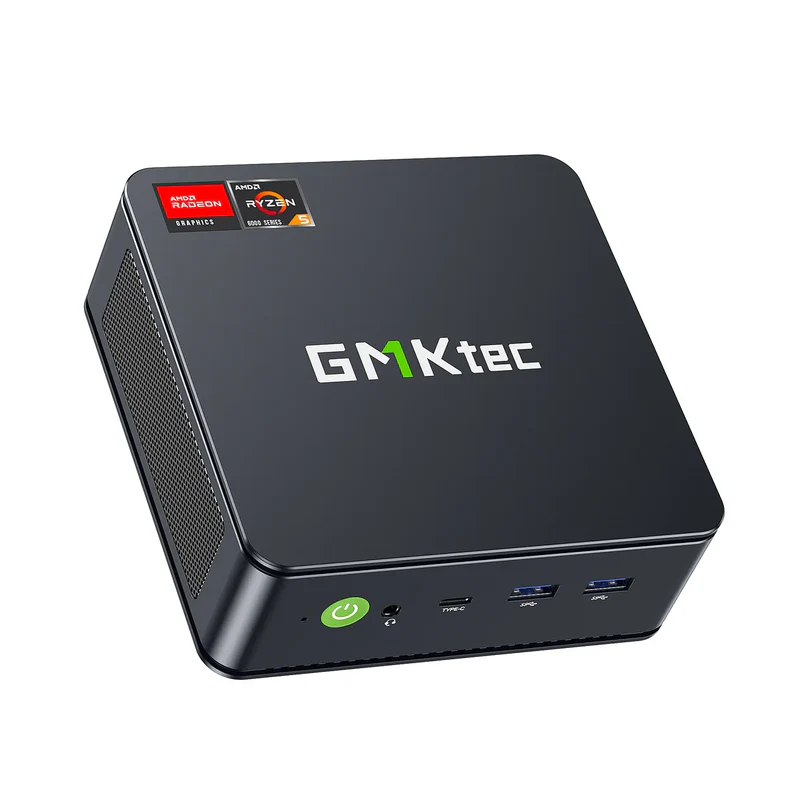

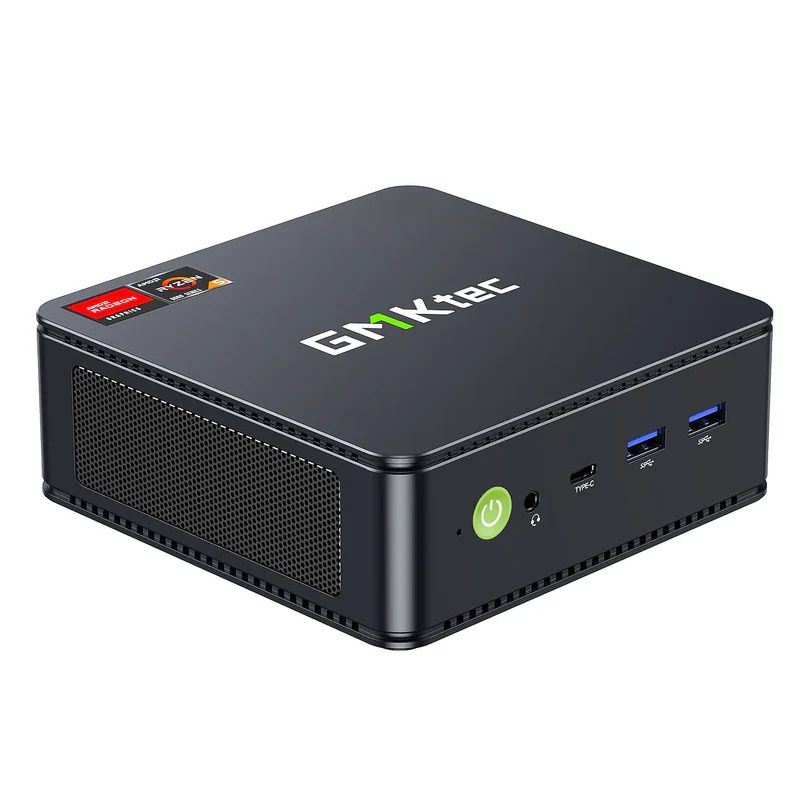

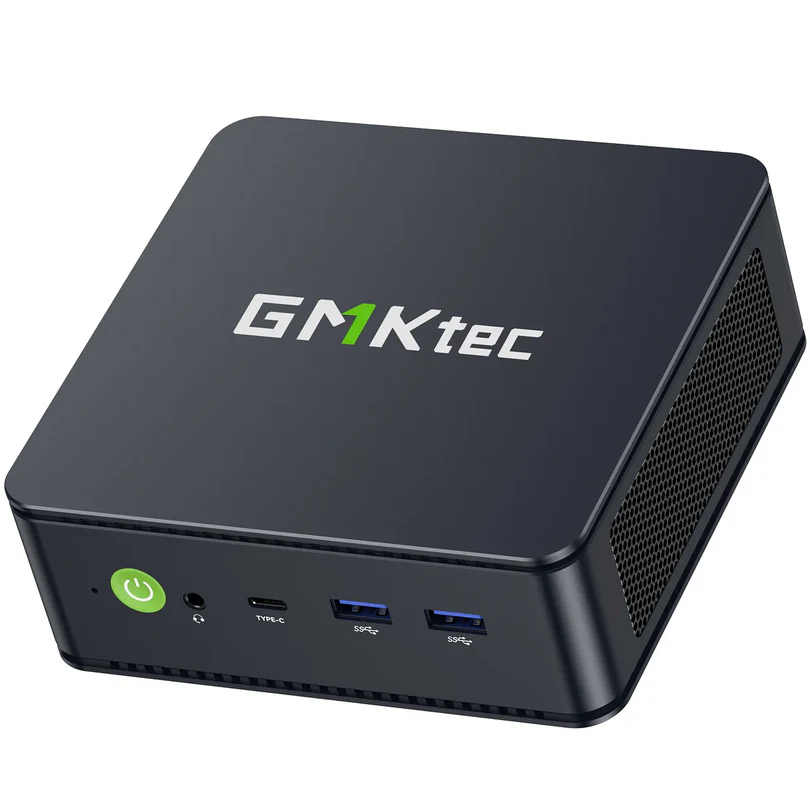

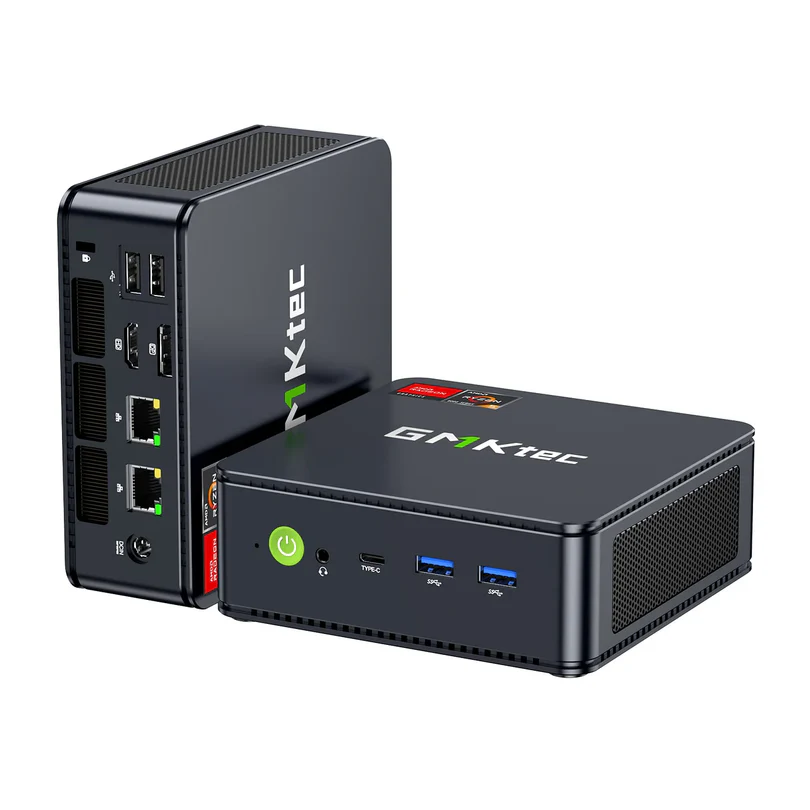

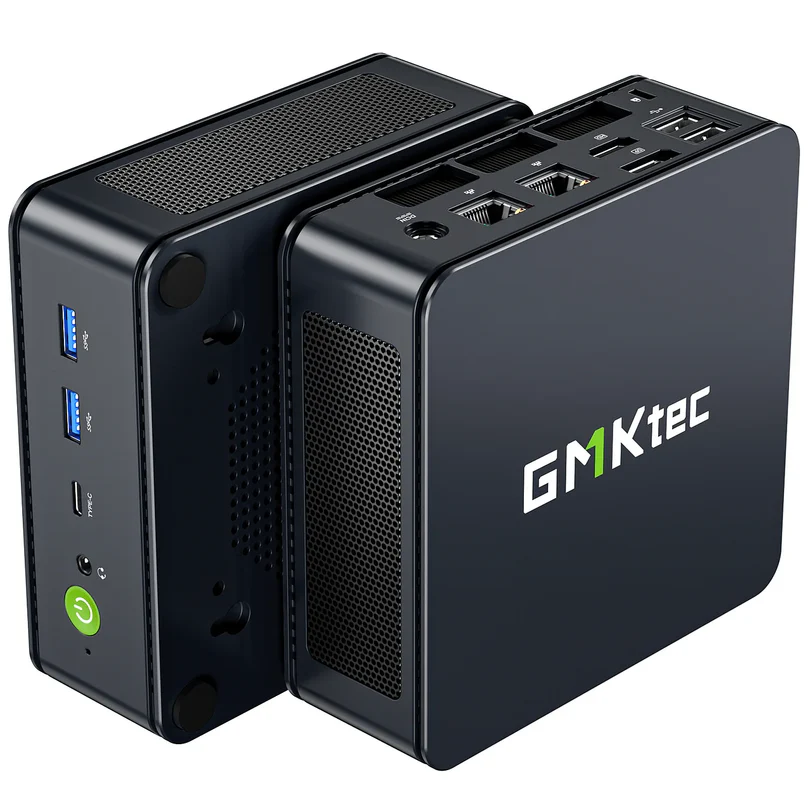

GMKtec NucBox M5 Ultra, AMD Ryzen 7 7730U Barebone Mini PC with GMKtec
Power in your palm. This mini PC is built for people who need real performance but have limited space. It uses the latest Ryzen 7 7730U processor, Radeon graphics and fast SSD slots, so you can run office suites, stream 4K video, edit photos or play casual games without compromise. If you have struggled with slow tiny boxes, GMKtec gives you a clear upgrade path.
Key Features
- AMD Ryzen 7 7730U, 8 cores, 16 threads, up to 4.5 GHz boost.
- Integrated AMD Radeon graphics with 8 cores, up to 2000 MHz.
- Two SO-DIMM slots, up to 64 GB DDR4 memory.
- Two M.2 2280 slots, 512 GB PCIe 3.0 SSD pre-installed.
- Triple video output: HDMI 2.0, DisplayPort 1.4, USB-C with 4K/60 Hz support.
- Wi-Fi 6E (up to 2.4 Gbps) and Bluetooth 5.2 for wireless connectivity.
- Dual 2.5 G Ethernet ports for reliable wired networking.
- USB-C PD 100 W, two USB-A 3.2 Gen2, two USB-A 2.0 for peripherals.
- Built-in coin cell battery for safe shutdown during power loss.
Specifications
| Model |
GMKtec NucBox M5 Ultra |
| CPU Model |
AMD Ryzen™ 7 7730U |
| CPU |
AMD Ryzen™ 7000 Series Processor, 8 Cores, 16 Threads, TSMC 7nm process,
Base Frequency 2.0GHz, Max Boost Frequency up to 4.5GHz, 4MB L2 Cache, 16MB L3 Cache
|
| CPU Socket / Package |
FP6 Package, TSMC 7nm FinFET |
| GPU |
AMD Radeon™ Graphics, 8 Cores, up to 2000MHz |
| Memory (RAM) |
2 × SO-DIMM Slots, 16GB / 32GB configurations, Supports up to 64GB |
| Storage (ROM) |
2 × M.2 2280 SSD Slots, 512GB PCIe 3.0 SSD pre-installed |
| Storage Expansion |
Supports up to 8TB per SSD
Maximum total storage capacity: up to 16TB |
| Graphics Output |
Triple display output via HDMI + DisplayPort + USB-C, supports up to 8K resolution via DisplayPort |
| Network |
Wi-Fi 6E (RZ616, up to 2.4 Gbps)
Bluetooth 5.2
Dual 2.5G Ethernet LAN |
| Power |
Built-in coin cell battery
DC Power Adapter 19V / 3.42A |

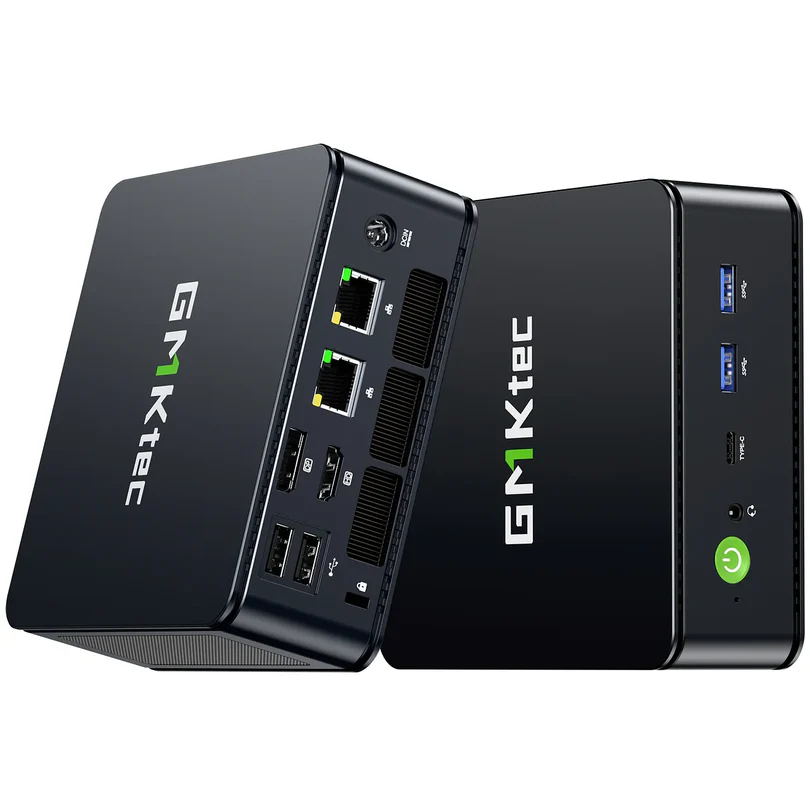

| External Ports |
USB-A: 2 × USB 3.2 Gen2 (10Gbps) + 2 × USB 2.0
USB-C: 1 × Type-C (USB 3.2 Gen2, PD 100W, DisplayPort 1.4, up to 4K@60Hz)
HDMI: 1 × HDMI 2.0 (up to 4K@60Hz)
DisplayPort: 1 × DisplayPort 1.4 (up to 8K@60Hz)
Audio: 1 × 3.5mm CTIA Audio Jack
LAN: 2 × RJ45 2.5G Ethernet
Power: 1 × DC IN (5.5/2.5mm)
Reset: 1 × Reset Button |
| Operating System |
Windows 11 Pro |
| Language Support |
14 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic |
| Chassis Dimensions |
128.8 × 127 × 47.8 mm |
| Weight |
528 g |
| Color |
Rust Color |
| Working Temperature |
0°C to 40°C |
| Warranty |
1-Year Limited Warranty |
| Certifications |
CCC, CE, FCC, RoHS, MIC, CEC, China Energy Label, UL Report |
| Packaging List |
User Manual
Warranty Card
Power Adapter
VESA Mount Bracket
HDMI Cable |
