Haltian Thingsee Global IoT Gateway LTE Cat M1 2G Wirepas Mesh Connectivity

Imagine a city full of sensors that never lose connection, no matter where they sit. The Haltian Thingsee Global IoT Gateway LTE Cat M1 2G Wirepas Mesh Connectivity is that reliable bridge. It links dozens of low-power devices to the cloud, turning raw data into real-time insight. If you struggle with spotty networks, costly cabling, or limited range, this gateway removes those barriers and lets you focus on the value of your data.

Haltian Thingsee Global IoT Gateway LTE Cat M1 2G Wirepas Mesh Connectivity

Large-scale IoT projects often fail because the connection layer is weak. When sensors cannot reach a server, alerts are missed and decisions are delayed. This matters to you because downtime costs money and erodes trust. The gateway solves the problem by providing LTE Cat M1 and 2G back-haul while creating a Wirepas mesh that reaches every corner of a building or outdoor site. Plug it in, insert the SIM, and the network builds itself.

Benefits

• Instant cloud connectivity saves time and reduces installation cost.
• Mesh technology extends range, so you can cover large areas with few gateways.
• Low power consumption lets battery-operated sensors run for years.

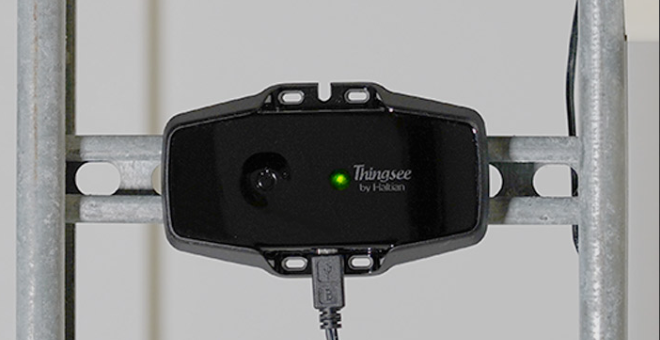

• Built-in LED status gives quick visual feedback on network health.
• Global LTE bands ensure reliable service in many countries.

Usages

Use the gateway in smart-city lighting to report lamp status and energy use. Deploy it in agricultural fields to gather soil moisture and weather data without digging trenches. Install it in warehouses to monitor temperature, humidity, and asset movement. It also fits industrial plants where machines need remote diagnostics and predictive maintenance alerts.

Key Features

• LTE Cat M1 (bands 2,3,4,5,8,12,13,20,28) for low-cost cellular back-haul.
• 2G GPRS/EGPRS fallback on 850/900/1800/1900 MHz bands.
• Wirepas nRF52832 2.4 GHz mesh radio with 5-25 m indoor range.
• Micro-SIM slot includes managed SIM subscription.
• Micro-USB power connector supports 2 A input.
• LED status indicator and power button for easy monitoring.
• IP40 rating protects against dust and light splashes.
• Operating temperature from 0 C to +40 C and humidity up to 90 % RH.

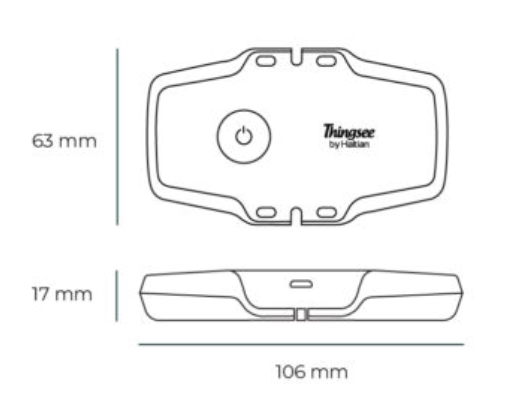

• Compact size 105.8 mm 16.5 mm 62.8 mm, weight only 43 g.
