Imagine a night when a stranger tries to enter your property and you have no way to see them. The Hanwha ANV-L6023R gives you clear vision day or night, inside or out. It is a wired dome camera that records in full HD and alerts you instantly. If you worry about blind spots, low light, or weather damage, this camera solves those problems so you can feel safe.

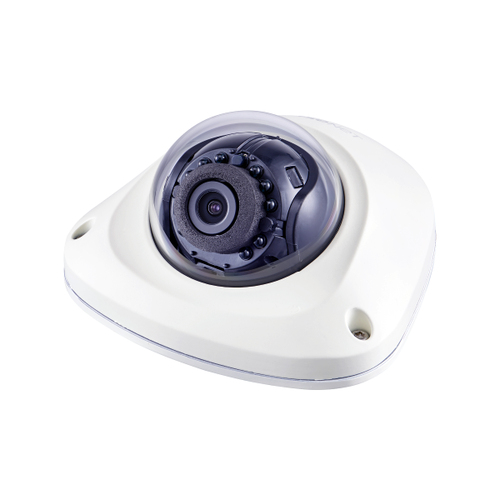

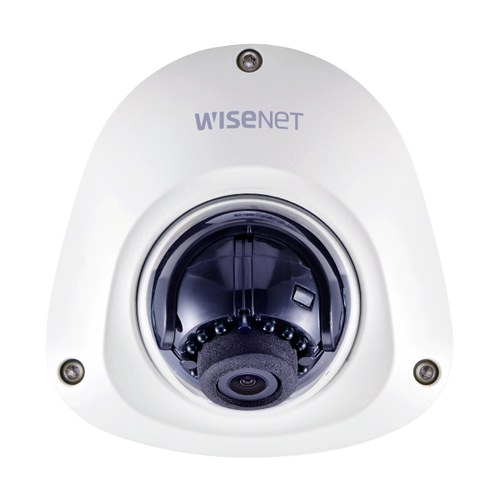

Hanwha ANV-L6023R Indoor Outdoor IP Security Camera Wired Dome Ceiling 120dB
Many homes and businesses lose security footage because cameras cannot handle bright sunlight and deep shadows together. That loss means you miss important details when an incident occurs. The ANV-L6023R uses a 120 dB dynamic range and Wide Dynamic Range (WDR) to balance light, so every face and plate is visible. It also works in total darkness with infrared LEDs, giving you reliable video 24 hours a day.
Usages of Hanwha
Install this camera on a ceiling in a store to watch customers and deter theft. Mount it near a front door to capture every visitor, even in rain or snow. Use it in a warehouse to monitor aisles and equipment. It also fits well in a home hallway or garage, providing clear images of cars and pets. The PoE option lets you power it with a single cable, simplifying installation.
Benefits
- Clear images in bright sun and dark night.
- Weather-proof housing protects against rain and dust.
- Built-in audio records sound for better evidence.
- Privacy masking lets you hide sensitive areas.
- Active tampering alarm notifies you of interference.
Key Features
- 120 dB dynamic range with WDR.
- Full HD 1920 1080 resolution at 30 fps.
- Infrared night vision up to 15 m.
- IP66 and IK10 rating for harsh environments.
- 120 diagonal field of view for wide coverage.
- Six privacy masking zones.
- PoE and DC power options.
- 512 MB RAM and 256 MB flash storage.
- Supports up to 128 GB SD card.
- H.264 and H.265 video compression.
Specifications
| Performance |
| Dynamic range |
120 dB |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
| IK code |
IK10 |
| International Protection (IP) code |
IP66 |
| Housing material |
Aluminium |
| Product colour |
White |
| Form factor |
Dome |
| Camera |
| Number of Privacy masking areas |
6 |
| Camera shutter speed |
1/5 - 1/12000 s |
| White balance |
ATW, AWC, Indoor, Manual, Outdoor |
| Tilt angle range |
0 - 67° |
| Lens viewing angle, diagonal |
115° |
| Lens viewing angle, vertical |
50° |
| Lens viewing angle, horizontal |
94.8° |
| Field of view (FOV) angle |
94.8° |
| Minimum illumination |
0 lx |
| Image sensor |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Sensor type |
CMOS |
| Lens system |
| Fixed focal length |
3.6 mm |
| Identify distance |
3.5 m |
| Maximum aperture number |
2 |
| Recognize distance |
7.1 m |
| Observe distance |
14.1 m |
| Detect distance |
35.3 m |
| Night vision |
| Infra-red wavelength |
850 nm |
| LED type |
IR |
| Night vision distance |
15 m |
| Night vision |
Yes |
| Video |
| Back Light Compensation (BLC) |
Yes |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Flip & mirror |
Yes |
| Privacy masking |
Yes |
| Noise reduction technology |
Smart Super Noise Reduction (SSNR) |
| Noise reduction |
Yes |
| Frame rate |
30 fps |
| Supported graphics resolutions |
640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Video compression formats |
H.264, H.265 |
| Video formats supported |
H.264, H.265 |
| Total megapixels |
2 MP |
| Maximum resolution |
1920 x 1080 pixels |
| Audio |
| Audio formats supported |
G.711, G.711u, G.726 |
| Network |
| Streaming method |
Multicast, Unicast |
| Number of users |
6 user(s) |
| Supported network protocols |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Networking standards |
IEEE 802.1x, IEEE 802.3af |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| RAM capacity |
512 MB |
| Flash memory |
256 MB |
| Maximum memory card size |
128 GB |
| Compatible memory cards |
SD, SDHC, SDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
| Composite video out |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Active tampering alarm |
Yes |
| Alert notification type |
E-mail |
| Intelligent Video Surveillance (IVS) system features |
Defocus |
| Network access storage (NAS) |
Yes |
| Security algorithms |
EAP-LEAP, EAP-PEAP, EAP-TLS, MSCHAPv2 |
| Video motion detection |
Yes |
| Power |
| Power consumption (max) |
6.7 W |
| Power consumption (typical) |
5 W |
| Power source type |
DC, PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-50 - 60 °C |
| Operating temperature (T-T) |
-30 - 55 °C |
| Weight & dimensions |
| Weight |
295 g |
| Height |
100 mm |
| Depth |
52 mm |
| Width |
98.3 mm |
| Supplier features |
| Manufacturer |
Hanwha |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
1920 x 1080 pixels |
| Technical details |
| Audio input |
1 |
