Imagine never wondering if a room is empty or if someone is moving around after hours. The Hanwha QND-7012R Indoor Wired Dome IP security Camera gives you clear, reliable vision wherever you need it. It is built for homes, offices, and small businesses that need a discreet camera that works day and night. If you have struggled with blurry footage, blind spots, or complicated setups, this camera solves those issues with simple wiring and smart features.

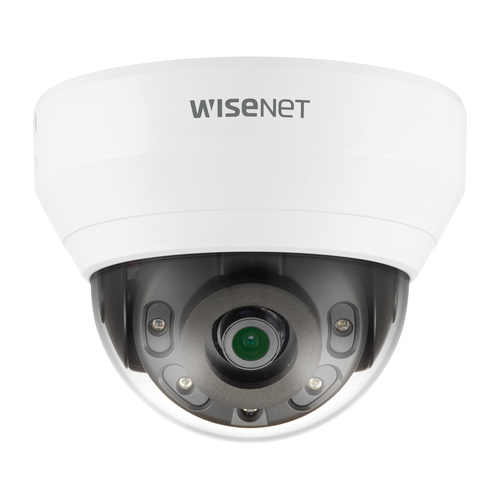

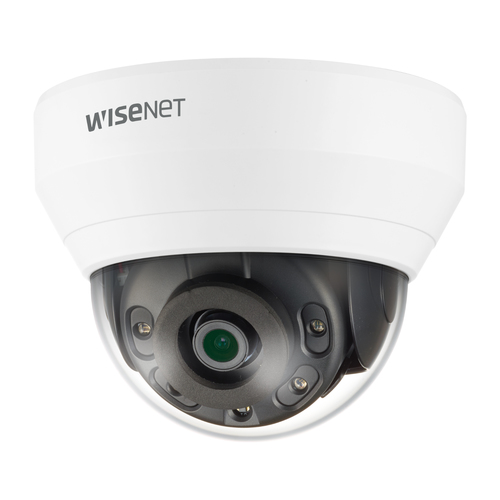

Hanwha QND-7012R Indoor Wired Dome IP security Camera Ceiling/Wall White
This camera removes the guesswork of indoor monitoring. Poor lighting and uneven illumination often hide important details, leaving you unsure of what really happened. The problem matters because missed details can mean lost evidence or unnecessary worry. The QND-7012R answers with built-in day/night mode, Wide Dynamic Range, and infrared vision that keep the picture clear from bright windows to dark corners. A wired PoE connection means you get power and video over a single cable, so installation stays quick and tidy.
Benefits
- Crystal-clear 4 MP images let you read faces and license plates without strain.
- Night vision up to 20 m keeps you safe even in total darkness.
- Built-in microphone captures sound, so you hear whats happening as well as see it.
- PoE power reduces cables and makes mounting on ceiling or wall easy.
- Motion detection sends alerts only when something moves, cutting down false alarms.
Usages
Place the dome in a retail store to watch aisles and cash registers without drawing attention. Mount it on a office ceiling to monitor conference rooms and entryways for after-hours security. Use it in a small clinic to keep an eye on waiting areas while respecting patient privacy with masking features. The white dome blends with most interiors, making it suitable for homes, schools, and coworking spaces where a subtle look is important.
Key Features
- 4 MP CMOS sensor with 122 diagonal view.
- Wide Dynamic Range (WDR) balances bright and dark areas.
- Day/night mode with IR cut-off filter.
- Infrared LEDs provide clear night vision up to 20 m.
- Pan (0-350) and tilt (0-67) control for flexible positioning.
- 30 fps video streaming in H.264, H.265, or MJPEG.
- Built-in microphone and G.711/G.726 audio codecs.
- PoE power consumption 5.1 W typical, 7.9 W max.
- MicroSD slot supports up to 128 GB for local storage.
- HTTPS encryption and IP filtering for secure remote access.
Specifications
| Performance |
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor |
| Type |
IP security camera |
| Design |
| Housing material |
Plastic |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
| Camera shutter speed |
1/5 - 1/12000 s |
| Camera shutter type |
Electronic |
| White balance |
ATW, AWC, Indoor, Manual, Outdoor |
| Pan range |
0 - 350° |
| Tilt angle range |
0 - 67° |
| Lens viewing angle, diagonal |
122° |
| Lens viewing angle, vertical |
59.7° |
| Lens viewing angle, horizontal |
107.5° |
| Angle of rotation |
355° |
| Minimum illumination |
0 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Optical sensor size |
25.4 / 3 mm (1 / 3") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Fixed focal length |
2.8 mm |
| Identify distance |
3.8 m |
| Maximum aperture number |
2 |
| Fixed focus |
Yes |
| Recognize distance |
7.5 m |
| Observe distance |
15 m |
| Detect distance |
37.5 m |
| Number of lenses |
1 |
| Night vision |
| LED type |
IR |
| Night vision distance |
20 m |
| Night vision |
Yes |
| Video |
| Back Light Compensation (BLC) |
Yes |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Flip & mirror |
Yes |
| Privacy masking |
Yes |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Video compression formats |
H.264, H.265, M-JPEG |
| Total megapixels |
4 MP |
| Maximum resolution |
2560 x 1440 pixels |
| Audio |
| Voice codecs |
G.711, G.711ulaw, G.726 |
| Built-in microphone |
Yes |
| Sample rate |
8 kHz |
| Network |
| Streaming method |
Multicast, Unicast |
| Supported network protocols |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Networking standards |
IEEE 802.1x, IEEE 802.3af |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Internal memory |
512 MB |
| Flash memory |
256 MB |
| Maximum memory card size |
128 GB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
| Composite video out |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Intelligent Video Surveillance (IVS) system features |
Defocus |
| Video motion detection |
Yes |
| Power |
| DC output voltage |
12 |
| Power consumption (Power over Ethernet (PoE)) |
7.9 W |
| Power consumption (max) |
7.1 W |
| Power consumption (typical) |
5.1 W |
| Power source type |
DC, PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-30 - 60 °C |
| Operating temperature (T-T) |
-10 - 55 °C |
| Weight & dimensions |
| Weight |
255 g |
| Diameter |
11 cm |
| Height |
86 mm |
| Supplier features |
| Manufacturer |
Hanwha |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
2560 x 1440 pixels |
