Finding a camera that can watch every corner of a room without missing detail is hard. When you cannot see who is at the door or what is happening in a hallway, you feel unsafe and you may lose valuable evidence. The Hanwha QND-7082R Indoor Wired Dome IP security Camera Ceiling/Wall White solves this problem. It gives clear video, night vision and easy wiring so you can protect your home or business with confidence.

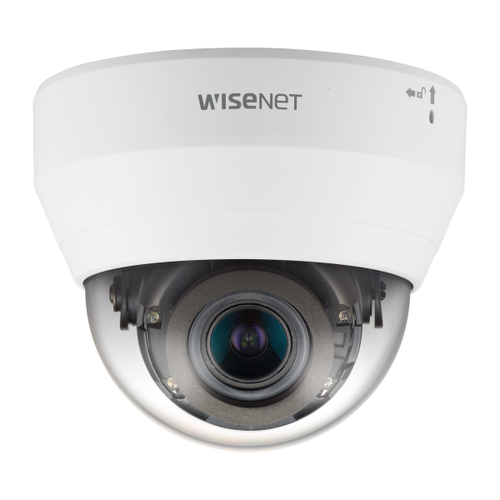

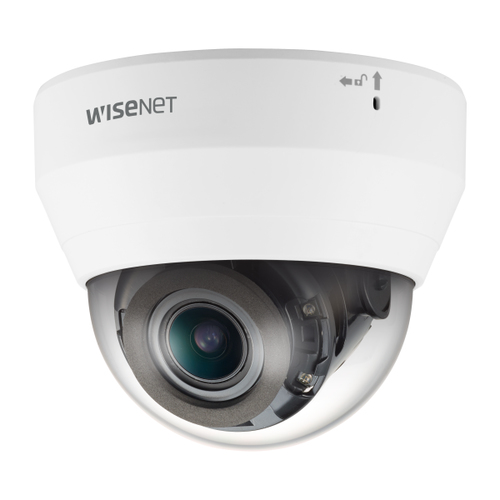

Hanwha QND-7082R Indoor Wired Dome IP security Camera Ceiling/Wall White with Hanwha
You need a camera that works all day and night, and that can be placed on a ceiling or a wall. This product is a dome-shaped IP camera made by Hanwha. It records in high resolution and sends video over a wired network. If you worry about blind spots, low light or complicated installation, this camera gives you a simple, reliable answer.
Usages
The camera fits in a family home to watch the living room, kitchen or front door. It works in an office to monitor workspaces, meeting rooms and entryways. Retail stores can use it to keep an eye on aisles and cash registers. Schools can install it in hallways or classrooms for safety. Any indoor area that needs constant visual monitoring can benefit from this dome camera.
Benefits
- Clear video day and night helps you see faces and details.
- Easy wired setup reduces Wi-Fi interference and keeps the feed stable.
- Wide viewing angle covers more area with fewer cameras.
- Built-in alarm I/O lets the camera trigger lights or sirens.
- Privacy masking lets you block zones you do not want to record.
Key Features
- 4 MP sensor with 2560 1440 resolution.
- 115.7 diagonal lens provides a broad view.
- Night vision up to 20 m with IR LEDs.
- WDR and BLC handle bright and dark spots in the same frame.
- Pan 0-350 and tilt 0-67 for flexible positioning.
- PoE power reduces cabling and simplifies installation.
- MicroSD slot supports up to 128 GB for local storage.
- H.264, H.265 and MJPEG compression saves bandwidth.
- Motion detection and video masking for smart alerts.
- Supports up to 20 users and multiple network protocols.
Specifications
| Performance |
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor |
| Type |
IP security camera |
| Design |
| Housing material |
Plastic |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
| Pan range |
0 - 350° |
| Tilt angle range |
0 - 67° |
| Lens viewing angle, diagonal |
115.7° |
| Lens viewing angle, vertical |
52.3° |
| Lens viewing angle, horizontal |
98.6° |
| Angle of rotation |
355° |
| Minimum illumination |
0 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Optical sensor size |
25.4 / 3 mm (1 / 3") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Identify distance |
3 m |
| Maximum aperture number |
2.9 |
| Minimum aperture number |
1.6 |
| Focal length range |
3.2 - 10 mm |
| Recognize distance |
6 m |
| Observe distance |
11 m |
| Detect distance |
27 m |
| Number of lenses |
1 |
| Night vision |
| LED type |
IR |
| Night vision distance |
20 m |
| Night vision |
Yes |
| Video |
| Back Light Compensation (BLC) |
Yes |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Privacy masking |
Yes |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Video compression formats |
H.264, H.265, M-JPEG |
| Total megapixels |
4 MP |
| Maximum resolution |
2560 x 1440 pixels |
| Audio |
| Voice codecs |
G.711Mu, G.711a, G.723, G.726 |
| Audio output channels |
1.0 channels |
| Audio input channels |
1.0 channels |
| Network |
| Quality of Service (QoS) support |
Yes |
| Number of users |
20 user(s) |
| Supported network protocols |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Networking standards |
IEEE 802.1x, IEEE 802.3af |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Internal memory |
512 MB |
| Flash memory |
256 MB |
| Maximum memory card size |
128 GB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Security |
| IP address filtering |
Yes |
| Intelligent Video Surveillance (IVS) system features |
Defocus |
| Video motion detection |
Yes |
| Power |
| DC output voltage |
12 |
| Power consumption (Power over Ethernet (PoE)) |
8.6 W |
| Power consumption (max) |
7.6 W |
| Power source type |
DC, PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-30 - 60 °C |
| Operating temperature (T-T) |
-10 - 55 °C |
| Weight & dimensions |
| Weight |
320 g |
| Diameter |
12 cm |
| Height |
98.8 mm |
| Supplier features |
| Manufacturer |
Hanwha |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
2560 x 1440 pixels |
