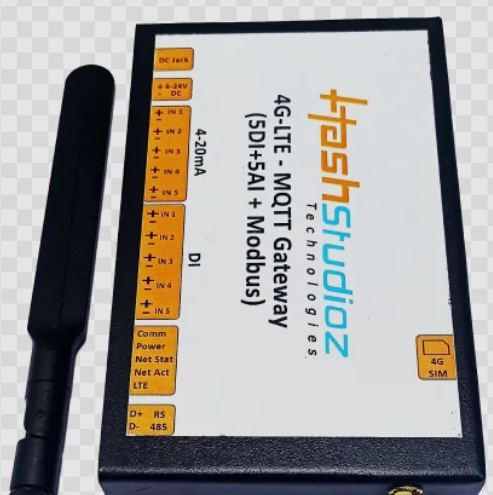

Hash Studioz 4G LTE RS485 Modbus Gateway with 10 Digital Inputs Industrial IoT

Imagine a factory floor where every sensor talks to the cloud without a single cable. The Hash Studioz 4G LTE RS485 Modbus Gateway with 10 Digital Inputs Industrial IoT makes that vision real. It collects data from Modbus devices, turns it into JSON, and sends it over a 4G LTE link. If you struggle with slow, unreliable wired networks or need remote monitoring in harsh environments, this gateway solves the problem and keeps your production line online.

Hash Studioz 4G LTE RS485 Modbus Gateway with 10 Digital Inputs Industrial IoT

Many industrial sites cannot afford expensive fiber or Ethernet upgrades. The lack of reliable communication leads to missed alarms, delayed decisions, and lost revenue. This gateway removes the bottleneck by using a cellular 4G LTE connection that works wherever a signal exists. It bridges RS485 Modbus devices to the cloud, encrypts the traffic, and offers plug-and-play installation. The result is fast, secure data delivery that lets you act on machine status from anywhere.

Benefits

• Remote monitoring lets you see equipment health without being on site.
• Cellular backup ensures data keeps flowing even if the main network fails.
• Built-in encryption protects your industrial data from hackers.
• 10 digital inputs let you connect many sensors and alarms in one unit.
• Simple screw-terminal wiring saves time during installation.

Usages

Use this gateway in a water treatment plant to report pump status to a central dashboard. Deploy it in a wind farm to collect turbine sensor data and send alerts when wind speed exceeds limits. Install it in a warehouse to monitor temperature and humidity sensors, then trigger ventilation automatically. It also works for oil & gas pipelines, where remote leak detection points need instant reporting to control rooms.

Key Features

• Operating voltage 6-30 V DC for flexible power options.
• Supports Modbus RTU protocol over RS485 two-wire bus.
• Data format is JSON for easy integration with cloud services.
• Baud rates selectable from 9600 to 115200 bps.
• WEP, TKIP, and AES encryption for secure communication.
• MicroSIM slot provides 4G LTE data connectivity.

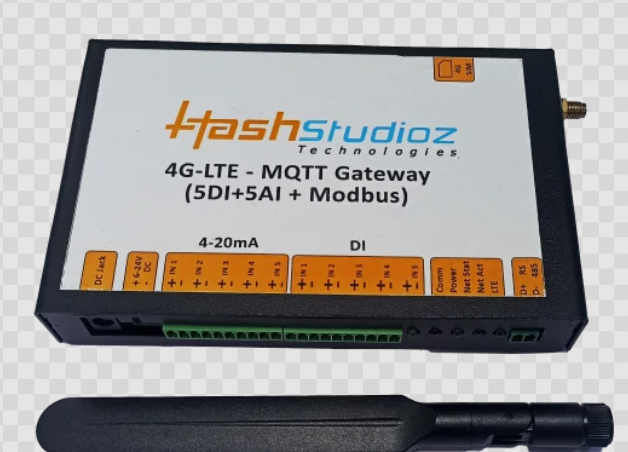

• External antenna option for stronger signal in remote sites.
• Metal enclosure with 750 V isolation for rugged industrial use.
• LED indicators show power, SIM status, network activity, and data publishing.
• Operating temperature range -6 C to 60 C and humidity 5-95 % RH.

Specifications
