Hash Studioz LoRaWAN IoT Development Kit v3 Gateway Sensor Kit

Imagine you could test LoRaWAN devices without buying separate hardware for each step. The Hash Studioz LoRaWAN IoT Development Kit v3 Gateway Sensor Kit gives you a complete, ready-to-use platform for building, testing, and deploying IoT solutions. Many makers struggle with fragmented parts, unclear wiring, and missing software support. This kit solves that by bundling a powerful gateway, sensor modules, and development boards in one box, so you can start coding and collecting data right away.

Hash Studioz LoRaWAN IoT Development Kit v3 Gateway Sensor Kit

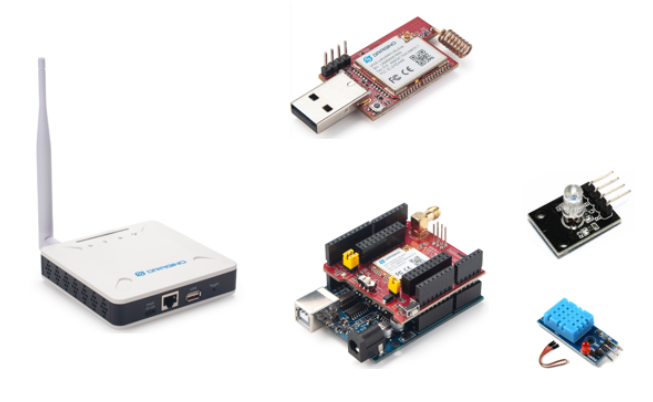

Prototypers often waste time connecting a gateway, a sensor, and a USB adapter that do not speak the same language. The result is missed data, unstable connections, and delayed projects. This matters because every hour of debugging costs money and slows product launch. The kit provides a single, integrated solution: a multi-channel LoRaWAN gateway, a low-power sensor board, and a USB adapter that all share the same firmware and API. You get reliable long-range communication, easy Wi-Fi access, and ready-made code examples, so you can focus on the real problem you want to solve.

Usages of Hash

Use the kit to monitor soil moisture and temperature in a small farm, sending data over several kilometers to a cloud dashboard. Deploy the sensor in a warehouse to track humidity and alert you when conditions go out of range. Attach the gateway to a bike to create a low-cost asset-tracking system for a delivery fleet. Connect the USB adapter to a laptop for classroom labs where students learn how LoRaWAN networks work. The same hardware can also be used for indoor air quality projects or prototype smart lighting control.

Benefits

• All-in-one package saves you time and money on buying separate parts.
• Long-range LoRaWAN communication reaches up to several kilometers, ideal for remote sites.
• Low power consumption lets the sensor run for months on a single battery.
• Built-in Wi-Fi and Ethernet make network setup simple and fast.
• Clear documentation and sample code help you get a working prototype in hours.

Key Features

• Quad-core Cortex-A7 1.2 GHz processor in the LPS8v2 gateway.
• 512 MB RAM and 4 GB eMMC storage for firmware and data logging.
• Multi-channel LoRaWAN radio with 27 dBm output power and -140 dBm sensitivity.
• Wi-Fi 802.11 b/g/n and a 10 M/100 M Ethernet port for flexible network options.
• LA66 LoRaWAN shield and USB adapter with 256 KB flash and 64 KB RAM each.
• Temperature & humidity sensor covering -40 C to +80 C and 0-99.9 % RH.
• Discrete RGB LED with high brightness for visual status indicators.
• Operating temperature range from -20 C to 70 C for gateway, -40 C to 85 C for shields.
• Power input 5 V DC, with low sleep current (5 A) and transmit current of 125 mA at 20 dBm.
• Battery support up to 8500 mAh for long-term field deployments.

Specifications
