Many people worry about theft or vandalism when they leave a building unattended. If a camera is missing or gives a blurry picture, you cannot see what really happened. This creates doubt, wasted time, and higher insurance costs. The Hikvision DS-2CD2583G2-IS Outdoor IP Security Dome Camera Wired Ceiling White gives you clear video, night vision and strong protection so you can watch every corner with confidence.

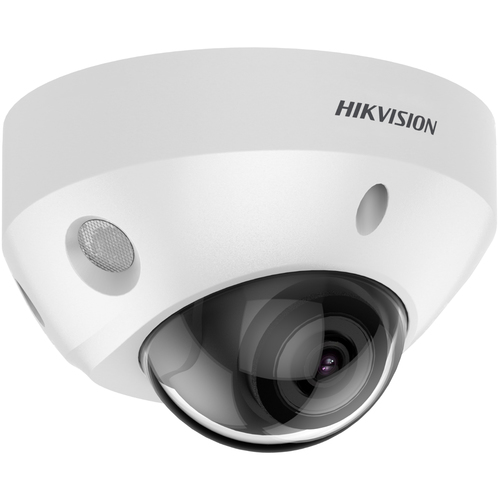

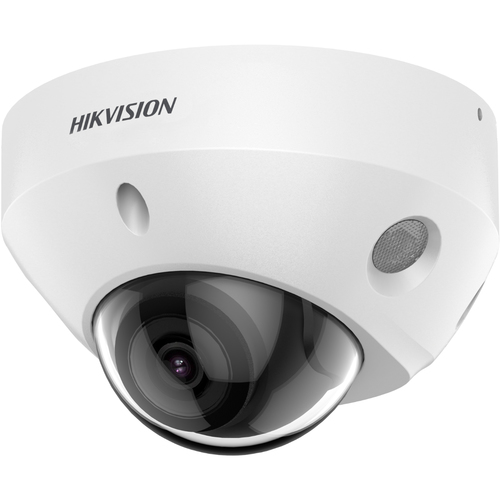

Hikvision DS-2CD2583G2-IS Outdoor IP Security Dome Camera Wired Ceiling White with Hikvision
You need a camera that works in rain, dust and low light. This dome camera is built for outdoor use and mounts on a ceiling or wall. It solves the problem of missing footage by delivering 8 MP resolution, 30 fps and a 124.8 wide view. With Hikvision technology you get reliable motion alerts and easy remote access.
Usages
Install it at the entrance of a store to catch shoplifters. Place it on a parking garage roof to monitor cars day and night. Use it on a school playground to watch children during recess. It also works well for warehouses, factories or any outdoor area that needs constant supervision.
Benefits
- Clear 8 MP images let you read faces and license plates.
- 30 m night vision shows activity even in total darkness.
- IP67 rating protects the camera from rain and dust.
- Built-in microphone records sound for better evidence.
- PoE power simplifies wiring and reduces installation cost.
Key Features
- 8 MP CMOS sensor with 3840 2160 resolution.
- Wide Dynamic Range (WDR) balances bright and dark areas.
- Infra-red cut filter for true-color day images.
- 30 m IR night vision using 850 nm LEDs.
- IP67 waterproof and IK10 vandal-proof housing.
- Pan-tilt control up to 360 rotation and 75 tilt.
- H.265+ video compression saves bandwidth.
- 3D noise reduction for clean footage.
- Motion detection with intrusion and line-crossing alerts.
- MicroSD slot supports up to 256 GB storage.
- HTTPS encryption and password protection keep data safe.
- Power over Ethernet (PoE) consumes only 8 W.
Specifications
| Performance |
| Number of languages |
33 |
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
| IK code |
IK10 |
| International Protection (IP) code |
IP67 |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
| Camera shutter speed |
1/3 - 1/100000 s |
| Pan range |
-30 - 30° |
| Tilt angle range |
0 - 75° |
| Lens viewing angle, diagonal |
124.8° |
| Lens viewing angle, vertical |
58.4° |
| Lens viewing angle, horizontal |
106.4° |
| Angle of rotation |
360° |
| Minimum illumination |
0 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Fixed focal length |
2.8 mm |
| Identify distance |
9 m |
| Maximum aperture number |
1.6 |
| Recognize distance |
18 m |
| Observe distance |
35 m |
| Detect distance |
88 m |
| Number of lenses |
1 |
| Night vision |
| Infra-red wavelength |
850 nm |
| LED type |
IR |
| Night vision distance |
30 m |
| Night vision |
Yes |
| Video |
| Back Light Compensation (BLC) |
Yes |
| Bit rate |
32 Kbps - 16 Mbps |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) |
Yes |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
Yes |
| Region of Interest (ROI) encoding |
Yes |
| Noise reduction technology |
3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Video compression formats |
H.264, H.264+, H.265, H.265+, M-JPEG |
| Total megapixels |
8 MP |
| Maximum resolution |
3840 x 2160 pixels |
| Audio |
| Voice codecs |
AAC, G.711alaw, G.711ulaw, G.722.1, G.726, PCM |
| Built-in microphone |
Yes |
| Sample rate |
48 kHz |
| Audio formats supported |
MP3 |
| Audio output channels |
1.0 channels |
| Audio input channels |
1.0 channels |
| Network |
| Quality of Service (QoS) support |
Yes |
| Number of users |
32 user(s) |
| Supported network protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE |
| Networking standards |
IEEE 802.1x, IEEE 802.3af |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Maximum memory card size |
256 GB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Anti-flicker |
Yes |
| HTTPS encryption |
Yes |
| Heartbeat |
Yes |
| IP address filtering |
Yes |
| Video motion detection |
Yes |
| Password protection |
Yes |
| Management features |
| Behavior analysis |
Intrusion detection, Line crossing detection |
| Reset button |
Yes |
| Web-based management |
Yes |
| Power |
| DC output voltage |
12 |
| Power consumption (Power over Ethernet (PoE)) |
8 W |
| Power consumption (max) |
6.5 W |
| Power source type |
DC, PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-30 - 60 °C |
| Operating temperature (T-T) |
-30 - 60 °C |
| Weight & dimensions |
| Weight |
400 g |
| Diameter |
11.4 cm |
| Height |
72.6 mm |
| Packaging data |
| Package weight |
635 g |
| Package height |
108 mm |
| Package depth |
134 mm |
| Package width |
134 mm |
| Supplier features |
| Manufacturer |
Hikvision |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
3840 x 2160 pixels |
