Stop worrying about empty corners and night-time intruders. The Hikvision DS-2CE78H0T-IT3FS Outdoor Wired CCTV Security Camera Ceiling/Wall is a tough, weather-proof camera that watches your property 24 hours a day. If you have missed a break-in because your old camera could not see in the dark or was damaged by rain, this camera gives you clear, reliable video when you need it most.

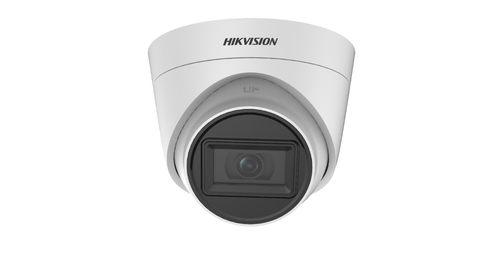

Hikvision DS-2CE78H0T-IT3FS Outdoor Wired CCTV Security Camera Ceiling/Wall
Many outdoor cameras struggle with harsh weather, low light and wide-angle coverage. When a camera cannot capture a clear picture, you lose evidence and peace of mind. This Hikvision model solves those problems with an IP67 sealed housing, infrared night vision up to 40 meters, and a 110.7 diagonal view that reduces blind spots. The result is a simple, wired solution that delivers sharp video day and night, so you can protect your home or business without hassle.
Benefits
- Clear images in bright sun and total darkness thanks to IR LEDs and WDR.
- Weather-proof design keeps the camera working in rain, snow or dust.
- Wide 110.7 view captures more area, reducing the number of cameras you need.
- Easy wired installation saves time and avoids Wi-Fi reliability issues.
- Built-in microphone lets you hear sounds as well as see them.
Usages
Use this camera on a shop front to watch customers and deter theft. Mount it on a warehouse ceiling to monitor loading docks and keep an eye on inventory. Install it on a residential wall to protect your driveway and garden at night. It also works well in parking lots, school yards, and any outdoor area where you need reliable, round-the-clock surveillance.
Key Features
- IP67 rating for complete protection against water and dust.
- 5 MP CMOS sensor delivering up to 2560 1944 pixel resolution.
- 110.7 diagonal, 85.5 horizontal and 63.7 vertical viewing angles.
- Infrared night vision up to 40 meters with automatic IR cut filter.
- Digital Wide Dynamic Range (DWDR) and Back Light Compensation for balanced images.
- 30 fps frame rate for smooth video playback.
- Pan 0-360 and tilt 0-75 for flexible positioning.
- Built-in microphone for audio capture.
- 12 V DC power supply with low 3.7 W consumption.
- Supports both NTSC and PAL video formats.
Specifications
| Performance |
| Languages support |
English |
| Number of languages |
1 |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
CCTV security camera |
| Design |
| International Protection (IP) code |
IP67 |
| Housing material |
Metal, Plastic |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Turret |
| Camera |
| Camera shutter speed |
1/25 (1/30) - 1/50000 s |
| White balance |
Auto, Manual |
| Pan range |
0 - 360° |
| Tilt angle range |
0 - 75° |
| Lens viewing angle, diagonal |
110.7° |
| Lens viewing angle, vertical |
63.7° |
| Lens viewing angle, horizontal |
85.5° |
| Angle of rotation |
360° |
| Minimum illumination |
0 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Fixed focal length |
2.8 mm |
| Number of lenses |
1 |
| Night vision |
| LED type |
IR |
| Night vision distance |
40 m |
| Night vision |
Yes |
| Video |
| Back Light Compensation (BLC) |
Yes |
| Digital Wide Dynamic Range (DWDR) |
Yes |
| Highlight Compensation (HLC) |
Yes |
| Image quality adjustment |
Brightness, Mirror, Sharpness |
| Gain control type |
Auto |
| Noise reduction technology |
2D noise reduction |
| Noise reduction |
Yes |
| Analog signal format system |
NTSC, PAL |
| Frame rate |
30 fps |
| Supported video modes |
1080p |
| Total megapixels |
5 MP |
| Maximum resolution |
2560 x 1944 pixels |
| Audio |
| Built-in microphone |
Yes |
| Network |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
No |
| Storage |
| Built-in HDD |
No |
| Power |
| DC output voltage |
12 |
| Power consumption (max) |
3.7 W |
| Power source type |
DC |
| Operational conditions |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
-40 - 60 °C |
| Weight & dimensions |
| Weight |
300 g |
| Diameter |
11 cm |
| Height |
91 mm |
| Supplier features |
| Manufacturer |
Hikvision |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
2560 x 1944 pixels |
