Product Code: CCEL-383
MPN #: 305401171

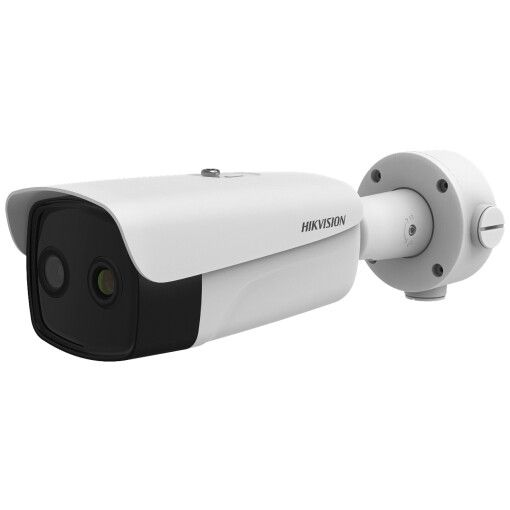

Imagine trying to spot a fever-ish person in a crowded hallway at night. Traditional cameras miss the heat signature, leaving you blind to a key health risk. The Hikvision DS-2TD2636B-15/P Hi-Res 15mm Thermal&Optical Bullet IP Security Camera combines thermal imaging and high-resolution optics so you can see people and their temperature at the same time. It solves the problem of hidden health threats and low-light blind spots, giving you clear, actionable video wherever you need it.
Many businesses and public places need to monitor both security and health at once. Missing a temperature rise can lead to illness spreading, while missing a break-in can cause loss. This camera addresses both concerns by delivering a clear visual image and an accurate thermal reading in one device. The built-in fever screening alerts you the moment a person exceeds the set temperature, and the 4 MP optical sensor records crisp colour video day or night. With IP connectivity you can watch live streams and receive alerts on any device, keeping safety simple.
| Category | Specification |
|---|---|
| Product Name | Hikvision DeepinView Fever Screening Thermal & Optical Network Bullet Camera |
| Model / Part Number | DS-2TD2636B-15/P / 305401171 |
| Device Type | Thermal / network surveillance camera – fixed – indoor |
| Camera Type | Colour Day & Night, NTSC/PAL |
| Image Sensor | Optical: 4 MP PS CMOS 1/2.7″ Thermal: Uncooled VOx FPA 384×288 |
| Maximum Resolution | Optical: 2688×1520 Thermal: 384×288 |
| Frame Rate (Max) | 30 fps |
| Minimum Illumination | Optical: 0.0089 lux (colour), 0.0018 lux (B&W), F1.6, AGC on |
| Lens Type | Fixed focal |
| Focal Length | Optical: 6 mm Thermal: 15 mm |
| Lens Iris | Optical: F/1.6 Thermal: f/1.0 |
| Shutter Speed / Exposure Range | 1 s – 1/100,000 s |
| IR LEDs / Distance | Yes, up to 50 m |
| Video Formats / Compression | MJPEG, H.264, H.265 |
| Digital Video Capture Resolutions | 1280×720, 640×480, 320×240, 352×288, 176×144, 704×576, 176×120, 1920×1080, 2688×1520 |
| Audio | Supported – PCM, G.726, G.722.1, MP2L2, G.711a, G.711u |
| Audio Ports | Audio line-in / microphone – 3.5 mm jack |
| Interfaces | Ethernet 10/100 BASE-TX (RJ-45), Composite video (BNC), RS-485 control |
| Alarm I/O | 2 inputs, 2 outputs |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, PPPoE, IGMP, QoS |
| Memory Card Support | microSD / microSDHC / microSDXC |
| Power Supply / Consumption | DC 12 V / PoE Class 3, 9.5 W |
| Dimensions (WxDxH) | 11.81 cm × 37.61 cm × 11.91 cm |
| Weight | 1.82 kg |
| Operating Temperature | 10 °C – 35 °C |
| Operating Humidity | 95 % RH |
| Environmental Rating | IP66 (weather-resistant) |
| Features | Fever screening & temperature detection, Alarm function, Smart Capture, 3D DNR, surge protection, infrared-cut filter, Voltage Transient Protection, ISAPI support |
