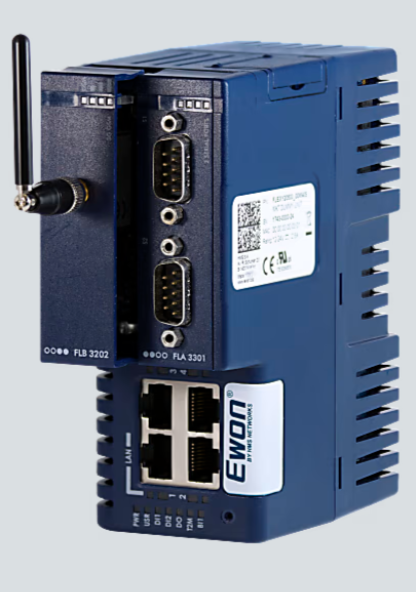

HMS Networks Ewon Flexy 205 Industrial VPN Gateway for IIoT Data Monitoring

Imagine never losing sight of your factory data, even when you are miles away. The HMS Networks Ewon Flexy 205 Industrial VPN Gateway for IIoT Data Monitoring is a compact device that connects machines to the cloud securely. Many plant managers struggle with unreliable remote access and costly downtime. This gateway solves those problems by giving you a safe, always-on link to your equipment, so you can see real-time data and act fast.

HMS Networks Ewon Flexy 205 Industrial VPN Gateway for IIoT Data Monitoring

The main issue is insecure or broken remote connections that prevent you from monitoring critical processes. When you cannot reach a PLC, a small fault can become a big loss. This gateway creates a protected VPN tunnel, encrypts every packet, and works with many industrial protocols. The result is a reliable, secure path from the shop floor to your dashboard, without needing extra software or complex setup.

Usages of HMS

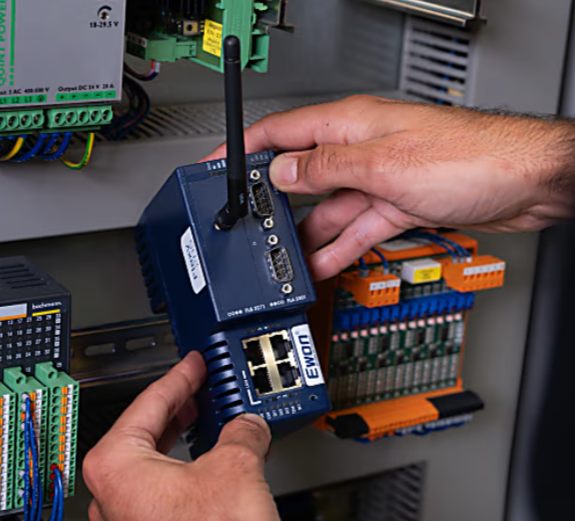

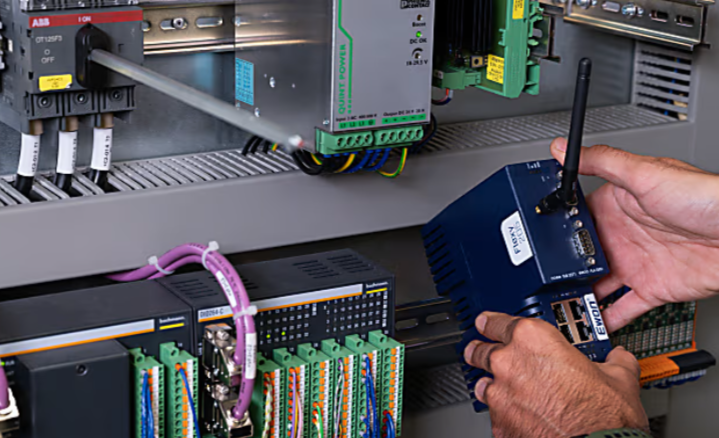

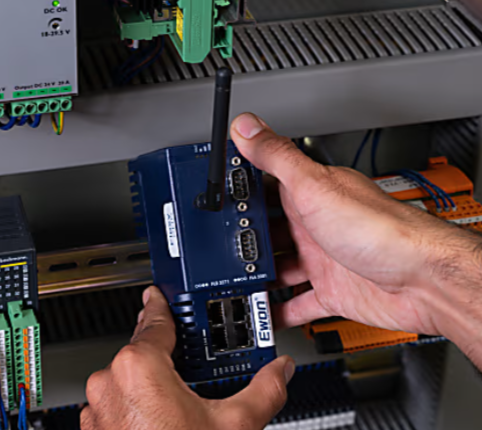

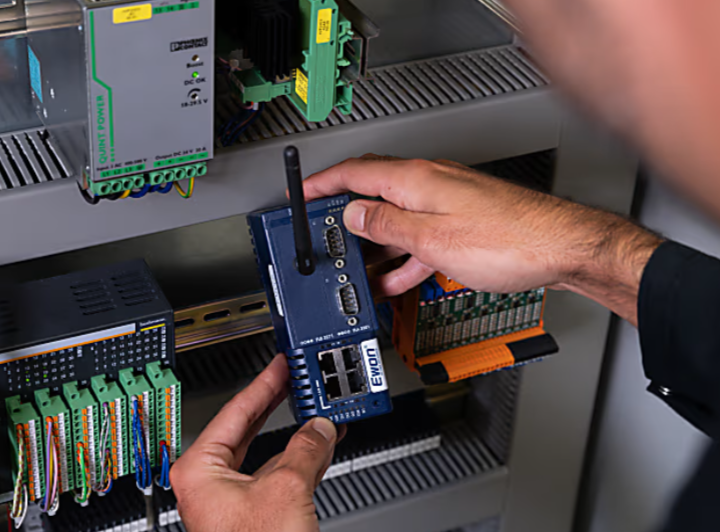

You can mount the Flexy 205 on a DIN rail next to any PLC and watch temperature, pressure, or motor speed from a phone or PC. It fits in remote oil wells to send sensor data back to headquarters. It works in food processing plants to log batch records and alert you if a parameter drifts. It also serves smart building managers who need to read HVAC data and control lights from the cloud.

Benefits

• Secure remote access saves you from costly downtime.
• Easy web-based setup means no extra programming skills are required.
• Built-in data logging lets you store millions of timestamps for later analysis.
• Supports many protocols, so you can connect to most PLC brands without adapters.
• Compact design fits tight spaces on the factory floor.

Key Features

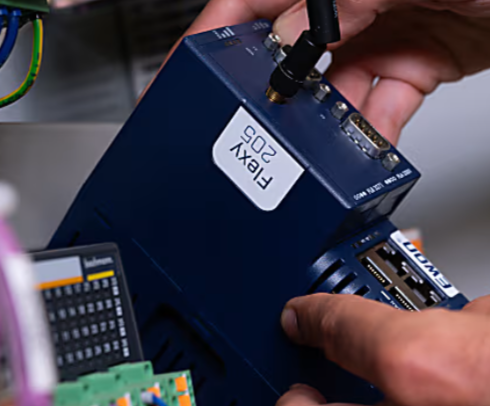

• Four RJ45 Ethernet ports (10/100 Mb) for reliable network links.
• Two isolated digital inputs and one MOSFET digital output for simple I/O.
• OpenVPN (SSL UDP/TCP) with end-to-end SSL/TLS encryption.
• OPC UA, Modbus RTU/TCP, EtherNet/IP, PROFIBUS, MPI and more for data acquisition.
• OPC UA, MQTT, SNMP, HTTPS for publishing data to cloud services.
• IP filtering, NAT, port forwarding, DHCP client/server for network flexibility.
• Web-based configuration with wizards - no extra software needed.
• Battery backup ensures the gateway stays online during power loss.
• DIN-rail and wall-mount options for easy installation.
• Operating temperature -25 C to +60 C and humidity up to 95 %.
• CE, UL, FCC, UKCA and other certifications for global compliance.
• Three-year warranty for peace of mind.
