Running a warehouse or a production line means you must print labels fast and without errors. When a printer stalls or prints blurry barcodes, shipments get delayed and inventory becomes hard to track. The Honeywell PM45 Compact, 203x203 DPI 350mm/sec Direct thermal Printer solves this by delivering reliable, high-speed printing that keeps your workflow moving.

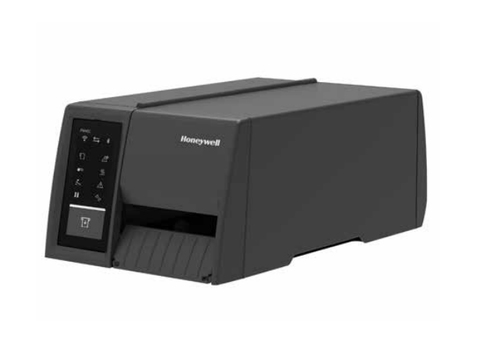

Honeywell PM45 Compact, 203x203 DPI 350mm/sec Direct thermal Printer with Honeywell
Print at the speed of your line, not slower. The Honeywell PM45 Compact is a direct-thermal printer built for industrial use. It creates clear 203 203 dpi barcodes and text at 350 mm per second. If you struggle with missed scans or frequent maintenance, this machine gives you the accuracy and uptime you need. Honeywells smart software lets you change label layouts without a technician. It also handles a wide range of media, from narrow receipt rolls to larger 11.4 cm labels, so you can print everything from receipts to shipping tags with one device.
Key Features
- Direct thermal technology eliminates ink costs.
- Print registration accuracy of 0.5 mm.
- Touch LCD display for quick setup.
- Two USB 2.0 ports and one RS-232 port.
- Bluetooth 5.0, Wi-Fi 5 (802.11ac) and Ethernet support.
- Built-in 1D and 2D barcode generation.
- 512 MB flash memory stores label templates.
- Tool-free platen roller replacement.
Specifications
| Printing |
| Maximum printing width |
10.8 cm |
| Printing colours |
Black |
| Print speed |
350 mm/sec |
| Number of printable dots |
8 dot |
| Maximum resolution |
203 x 203 DPI |
| Colour |
No |
| Print technology |
Direct thermal |
| Paper handling |
| Core diameter |
7.62 cm |
| Maximum label width |
11.4 cm |
| Maximum roll diameter |
21.3 cm |
| Ports & interfaces |
| RS-232 ports |
1 |
| USB 2.0 ports quantity |
2 |
| USB port |
Yes |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired & Wireless |
| Performance |
| Image formats supported |
BMP, GIF, PCX, PNG |
| Built-in barcodes |
1D, 2D |
| Flash memory |
512 MB |
| Internal memory |
256 MB |
| Page description languages |
DP, DPL, IPL, XML, ZPL II |
| Design |
| Control type |
Touch |
| Display |
LCD |
| Built-in display |
Yes |
| Product colour |
Black |
| Power |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| System requirements |
| Linux operating systems supported |
Yes |
| Mobile operating systems supported |
Android, iOS |
| Windows operating systems supported |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
5 - 40 °C |
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
20 - 85% |
| Weight & dimensions |
| Weight |
12.6 kg |
| Height |
181 mm |
| Depth |
432 mm |
| Width |
253 mm |
| Technical details |
| Compliance certificates |
CE, RoHS |
| Sustainability certificates |
ENERGY STAR |
| Other features |
| Maximum resolution |
203 x 203 DPI |
