Imagine a line that never stops because a label printer jams or prints blurry codes. The Honeywell PM45 Compact, 203x203 DPI, 350mm/sec Thermal transfer Printer is built to stop that frustration. It prints clear bar-codes, text and images fast enough for busy factories. If you need reliable tags for inventory, shipping or compliance, this printer gives you the speed and accuracy you cannot afford to lose.

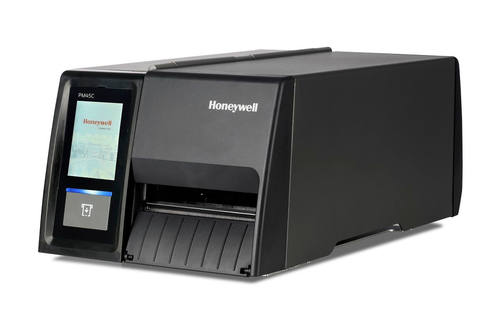

Honeywell PM45 Compact, 203x203 DPI, 350mm/sec Thermal transfer Printer
Many businesses struggle with slow, error-prone labeling that slows production and raises costs. When labels are unreadable, shipments are delayed and stock counts become inaccurate. The PM45 solves this by delivering 350 mm per second print speed and a tight 0.5 mm registration. It prints crisp 203 203 dpi images on a range of media, so you get reliable data every time without re-printing.
Key Features
- Thermal transfer technology for long-lasting prints.
- Maximum label width 11.4 cm and roll diameter 21.3 cm for large batches.
- USB 2.0 and RS-232 ports for flexible connectivity.
- Ethernet LAN support for wired network integration.
- 512 MB flash memory stores label templates locally.
- Supports 1D and 2D barcodes, plus PNG, BMP, GIF, PCX images.
- Touch LCD display for easy on-site adjustments.
- Operating temperature range 5 - 40 C for most indoor settings.
Specifications
| Printing |
| Maximum print length |
4.8 m |
| Margin depth settings |
Fixed |
| Maximum printing width |
10.8 cm |
| Printing colours |
Black |
| Print speed |
350 mm/sec |
| Print speed |
350 mm/sec |
| Print speed |
350 mm/sec |
| Number of printable dots |
8 dot |
| Maximum resolution |
203 x 203 DPI |
| Colour |
No |
| Print technology |
Thermal transfer |
| Paper handling |
| Core diameter |
7.62 cm |
| Maximum label width |
11.4 cm |
| Maximum roll diameter |
21.3 cm |
| Ports & interfaces |
| RS-232 ports |
1 |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired |
| Performance |
| Image formats supported |
PNG, BMP, GIF, PCX |
| Built-in barcodes |
1D, 2D |
| Flash memory |
512 MB |
| Internal memory |
256 MB |
| Page description languages |
DP, DPL, IPL, XML, ZPL II |
| Design |
| Control type |
Touch |
| Display |
LCD |
| Built-in display |
Yes |
| Product colour |
Black |
| Power |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (standby) |
9.6 W |
| System requirements |
| Linux operating systems supported |
Yes |
| Mobile operating systems supported |
Android, iOS |
| Windows operating systems supported |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
5 - 40 °C |
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
20 - 85% |
| Weight & dimensions |
| Weight |
12.6 kg |
| Height |
181 mm |
| Depth |
432 mm |
| Width |
253 mm |
| Technical details |
| Compliance certificates |
CE, RoHS |
| Sustainability certificates |
ENERGY STAR |
| Other features |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese,
Korean, Portuguese, Russian, Thai
|
| Maximum resolution |
203 x 203 DPI |
| Supported network protocols |
TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/ LPD, Telnet/SSH, FTP/SFTP, BOOTP, DHCP,
HTTP/HTTPS, SNMPv1/2c/3, SNMP-MIBII supported – over UDP/IP (private enterprise MIB included),
SMTP Supports IPv4 and IPv6
|
