Power your most demanding applications

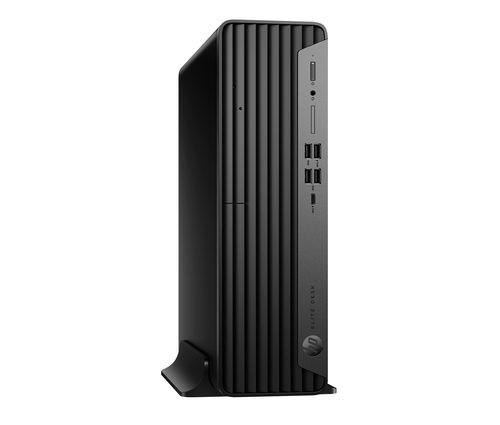

Step into the future with the highly secure and easy to manage HP Elite 805 SFF equipped with an AMD Ryzen™ 8000 series processor[2] and AMD RDNA™ 3 onboard graphics, and an NPU[3] that work together to balance workloads get the most out of cloud-based AI applications. Quickly work through multiple tasks with AI-enhanced power that takes over mundane tasks for you so you can focus on what matters most.
Specifications
| Processor |
| Processor cache type |
L3 |
| Processor cache |
16 MB |
| Processor frequency |
3.7 GHz |
| Processor boost frequency |
5 GHz |
| Processor threads |
12 |
| Processor cores |
6 |
| Processor model |
8500G |
| Processor generation |
AMD Ryzen 8000 Series |
| Processor family |
AMD Ryzen™ 5 |
| Processor manufacturer |
AMD |
| Memory |
| Memory clock speed |
5600 MHz |
| Memory slots |
4x DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
16 GB |
| Storage |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
AMD Radeon 740M |
| On-board graphics card family |
AMD Radeon Graphics |
| On-board GPU manufacturer |
AMD |
| On-board graphics card |
Yes |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Antenna type |
2x2 |
| WLAN controller model |
Realtek RTL8852BE |
| WLAN controller manufacturer |
Realtek |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
4 |
| Design |
| Country of origin |
Czech Republic |
| Introduction year |
2025 |
| Number of 3.5" bays |
1 |
| Chassis type |
SFF |
| Performance |
| Password protection type |
BIOS, Power on |
| Password protection |
Yes |
| Audio chip |
Realtek ALC3252 |
| Motherboard chipset |
AMD PRO 665 |
| Software |
| Pre-installed software |
HP Easy Clean |
| Operating system installed |
Windows 11 Pro |
| Brand-specific features |
| HP GTIN (EAN/UPC) |
199485302218 |
| HP segment |
Business |
| HP Management tools |
HP Image Assistant (download) |
| HP Security tools |
Microsoft 3rd Party UEFI CA Enable |
| Power |
| Power supply |
260 W |
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
10 - 35 °C |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
TCO |
| Sustainable technologies and materials |
Low halogen; 40% post-consumer recycled plastic; Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; Ocean-bound plastic in speaker enclosure and I/O strip; 10% ITE-derived closed loop plastic; 80 Plus® Platinum power supplies available |
| Weight & dimensions |
| Package weight |
7.72 kg |
| Package height |
228 mm |
| Package depth |
499 mm |
| Package width |
399 mm |
| Weight |
5.4 kg |
| Height |
338 mm |
| Depth |
308 mm |
| Width |
338 mm |
| Packaging content |
| Input device model |
HP 125 Wired Mouse |
| Keyboard connectivity |
Wired |
| Keyboard included |
Yes |
| Technical details |
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
| Other features |
| UNSPSC-code |
43211507 |
| Manufacturer warranty |
1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
| Operating temperature (T-T) |
10 - 35 °C |
