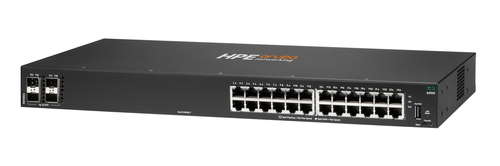

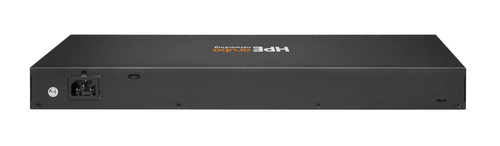

The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow’s unpredictable demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) to deliver a more consistent, more efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The CX 6000 Series is easy to deploy and use with flexible management choices, allowing the best fit for your business and network environment.
What is new supporting point:
Flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.
Simplify IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
Convenient built-in 1 GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices.
Compact and fanless 12-port PoE model for space-constrained deployments.
Ready for software defined networking with REST APIs.
Specifications
| Management features |
| Cloud-managed |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L3 |
| Switch type |
Managed |
| Ports & interfaces |
| SFP module slots quantity |
4 |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
12.38 MB |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Latency (1 Gbps) |
1.5 µs |
| Throughput |
41.6 Mpps |
| Throughput |
41.6 Mpps |
| Switching capacity |
56 Gbit/s |
| MAC address table |
8192 entries |
| Security |
| Authentication |
MAC-based authentication |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client |
| Multicast features |
| Multicast support |
Yes |
| Protocols |
| IPv6 FIB entries |
128 |
| IPv4 FIB entries |
256 |
| IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL) |
| Design |
| Form factor |
1U |
| Stackable |
No |
| Rack mounting |
Yes |
| Performance |
| Flash memory |
16384 MB |
| Internal memory |
8000 MB |
| Memory type |
DDR3-SDRAM |
| Processor frequency |
1016 MHz |
| Processor model |
ARM Cortex-A9 |
| Built-in processor |
Yes |
| Power |
| Power consumption (max) |
33 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
200 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage relative humidity (H-H) |
15 - 90% |
| Operating relative humidity (H-H) |
15 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
| Weight |
2.3 kg |
| Height |
44 mm |
| Depth |
201.2 mm |
| Width |
442.5 mm |
