The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer. Make your network ready for tomorrow’s unpredictable demands with a powerful Gen7 ASIC architecture to deliver fast, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs.
The HPE Aruba CX 6200F gives you 48 gigabit ports, 4 SFP+ uplinks and 740 W of PoE, so you can replace multiple legacy switches with one managed solution.

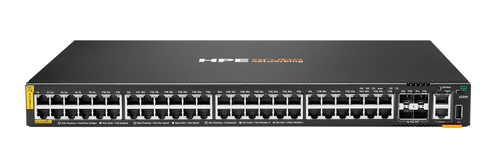

HPE Aruba CX 6200F 48G Class4 PoE 4SFP+ & 740W L3 Gigabit Managed Switch
The Aruba CX 6200F is a 1U, stackable, L3 managed switch designed for midsize campuses or branch offices. It supports VLANs, QoS, link aggregation and ACLs, giving you granular control over traffic. With 48 RJ-45 gigabit ports, four SFP+ slots and a 740 W PoE budget, it powers IP phones, cameras and Wi-Fi APs while delivering up to 176 Gbit/s switching capacity.
Specifications
| Management features |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L3 |
| Switch type |
Managed |
| Ports & interfaces |
| Console port |
RJ-45/USB Type-C |
| SFP+ module slots quantity |
4 |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Optical fiber |
| Transmission distance (max) |
10 km |
| Data transmission |
| Packet buffer memory |
8 MB |
| Jumbo frames support |
Yes |
| Latency (10 Gbps) |
1.46 µs |
| Latency (1 Gbps) |
2.28 µs |
| Throughput |
130.9 Mpps |
| Throughput |
130.9 Mpps |
| Switching capacity |
176 Gbit/s |
| MAC address table |
32768 entries |
| Security |
| Authentication |
MAC-based authentication, Web-based authentication |
| Authentication type |
RADIUS, TACACS+ |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Multicast features |
| Multicast support |
Yes |
| Design |
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
| Flash memory |
16384 MB |
| Internal memory |
8000 MB |
| Memory type |
DDR4-SDRAM |
| Processor frequency |
1800 MHz |
| Processor model |
ARM Cortex-A72 |
| Built-in processor |
Yes |
| Physical stacking (units) |
8 |
| Power |
| Power consumption (typical) |
76 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
200 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
740 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating altitude |
0 - 3048 m |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
| Height |
327 mm |
| Depth |
442 mm |
| Width |
43.9 mm |
