Imagine a data center that never loses power, even when the grid flickers. The HPE G2 R8000 8 kVA Online Double-Conversion UPS Rackmount is built to keep your servers, storage and network gear running without interruption. When a sudden outage hits, many businesses face data loss, hardware damage and costly downtime. This UPS gives you the protection you need to avoid those risks and keep operations smooth.

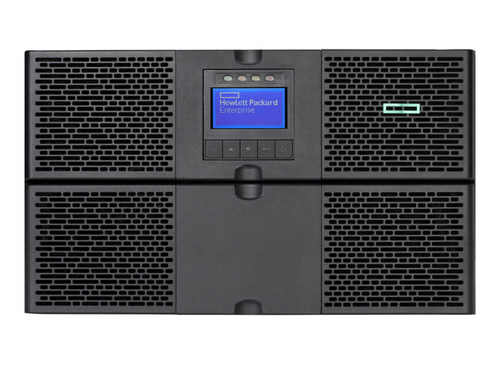

HPE G2 R8000 8 kVA Online Double-Conversion UPS Rackmount
The main problem it solves is the delay that occurs when power switches to battery. That delay can cause servers to reboot or shut down unexpectedly. For a user, every second of downtime can mean lost revenue and unhappy customers. This UPS uses true online double-conversion technology, so power is always filtered and regulated before it reaches your equipment. It eliminates transfer time, extends battery life by up to 50 percent, and lets you add extra runtime modules when you need more backup.
Usages of HPE
The unit fits into a standard 6U rack, making it ideal for small to medium data centers. It powers critical servers, high-performance storage arrays, and large network switches. It also works well in edge computing sites where space is limited but reliability is essential. If you run virtualization platforms such as HPE SimpliVity, the UPS can integrate with Eaton Intelligent Power Manager to protect virtual machines and extend their runtime during an outage.
Benefits
- Zero transfer time keeps all equipment online during power loss.
- Extended battery life reduces replacement costs and maintenance effort.
- Scalable runtime lets you add up to four extra modules for longer backup.
- Network management module provides remote monitoring from any browser.
- Integration with virtualization tools protects virtual workloads automatically.
Key Features
- 8 kVA / 7200 W continuous output power.
- True online double-conversion topology for clean sine wave output.
- HPE Enhanced Battery Management with three-stage charging.
- Six C19 AC outlets for server and networking connections.
- 1 GbE network management module with web interface.
- RS-232 and USB ports for local and remote control.
- Supports up to four Extended Runtime Modules.
- Input voltage range 200-250 V, 40/60 Hz.
- Output voltage regulation -10 % to +6 %.
- 6U rackmount form factor, black enclosure.
Specifications
| Features |
| Output voltage regulation |
-10 - 6% |
| Output operation voltage (max) |
240 V |
| Input frequency |
40/60 Hz |
| Input operation voltage (max) |
250 V |
| Input operation voltage (min) |
200 V |
| Waveform |
Sine |
| Output power |
7200 W |
| Output power capacity |
8 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| RS-232 ports |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB port |
Yes |
| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
C19 coupler |
| Battery |
| Battery recharge time |
24 h |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Rack capacity |
6U |
| Product colour |
Black |
| Form factor |
Rackmount |
| Operational conditions |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 40 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight |
89.7 kg |
| Height |
259.1 mm |
| Depth |
762 mm |
| Width |
439.4 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
