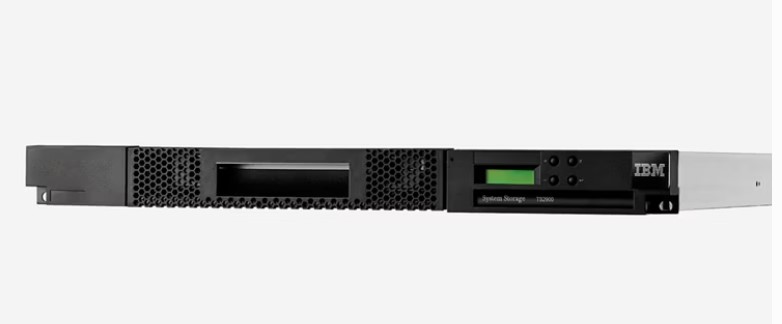

IBM TS2900 Tape Autoloader
Low-profile, entry-level IBM LTO tape storage for open system platforms.
As businesses continue to face challenges with data proliferation, storage and protection, cyberattacks are increasing in both frequency and severity. As a result, true air gap storage technology for primary and backup solutions is becoming increasingly important for disaster recovery and regulatory compliance. To address these challenges and better handle the growing data demands of modern tape use cases, enterprises need data solutions that incorporate the latest innovations in LTO technology.
The IBM TS2900 Tape Autoloader can be used in a rack system or on a desktop next to a server in an office environment. The autoloader’s convenient and easy-to-use features help reduce the workload of IT personnel and centralize datacenter backups. The solution is also designed to support the encryption of sensitive user data in combination with half-height LTO Ultrium 7, 8 and 9 technology. Offering a 6 Gbps SAS interface on LTO Ultrium 7 and 8 or a 12 Gbps SAS interface on LTO Ultrium 9, the IBM TS2900 Tape Autoloader is compatible with IBM Power® Systems, Intel and other open-system server platforms.
Save space with a slim 1U system designed for rack-mounted environments
The IBM TS2900 Tape Autoloader has capacity for nine data slots—a total storage capacity of 405 TB with 2.5:1 compression when using LTO Ultrium 9 cartridges. It also has a single input/output (I/O) station designed to provide undisturbed library operation when extracting or inserting data cartridges. The IBM TS2900 Tape Autoloader uses one half-height LTO Ultrium drive for generations 7, 8 or 9 and is shipped as a rack-mounted unit with an optional desktop conversion kit.
Deploy the latest generations of LTO Ultrium half-height technology
Half-height LTO Ultrium 9 Tape Drives are designed to read and write data at a transfer rate of up to 300 Mbps and can store up to 18 TB on a single cartridge—or 45 TB with 2.5:1 compression. LTO Ultrium 9 Tape Drives can also read and write data to LTO Ultrium 8 data cartridges, further supporting current investments in LTO Ultrium resources
Highlights
- Save space with a slim 1U system designed for rack-mounted environments
- Deploy the latest generations of LTO Ultrium half-height technology
- Benefit from the lowest entry price of any IBM half-height tape solution
- Simplify user access to data stored on tape cartridges with storage archive
Specifications:
| Wireless Features |
|
| WiFi Standards |
6.0GHz: 802.11ax
5.0GHz: 802.11a/n/ac/ax
2.4GHz: 802.11b/g/n/ax
|
| Wireless Mode (Transmit x Receive) |
2x2 in 6.0GHz
4x4 in 5.0GHz
2x2 in 2.4GHz
|
| Channelization |
5GHz: 20/40/80/160MHz
6GHz: 20/40/80/160MHz
|
| OFDM/OFDMA |
OFDM and OFDMA |
| BSS Coloring |
Yes |
| Multi-User MIMO |
Bidir and MU-MIMO |
| Target Wake Time (TWT) |
Yes |
| Maximum Theoretical Throughput |
AXE7800 7.8Gbps |
| Maximum Theoretical Throughput per Band |
6.0GHz: 2400Mbps
5.0GHz: 4800Mbps
2.4GHz: 600Mbps
|
| Antenna Gain |
Internal 4.4/6.3/3.1 dBi (2.4GHz/5GHz/6GHz) |
| Power over Ethernet (PoE) |
802.3bt/at |
| PoE Power Consumption |
27.64W |
| Centralized Management |
Insight App |
| Security |
Yes (all listed features) |
| Mesh |
Yes |
| Standards & Features |
|
| IEEE 802.11ax WiFi 6 standard |
Yes |
| WMM Wireless Multimedia Prioritization |
Yes |
| WDS Wireless Distribution System |
Yes |
| PoE IEEE 802.3af |
Yes |
| PoE IEEE 802.3at |
Yes, max throughput will reduce by 50% on 2.4GHz |
| PoE IEEE 802.3bt |
Yes |
| Physical Specifications |
|
| Dimensions |
266.6 x 268.3 x 55.5 mm (10.49 x 10.56 x 2.18 in) |
| Weight |
1050 g (2.31 lb) |
| Operating temperature |
0° to 40°C (32° to 104°F) |
