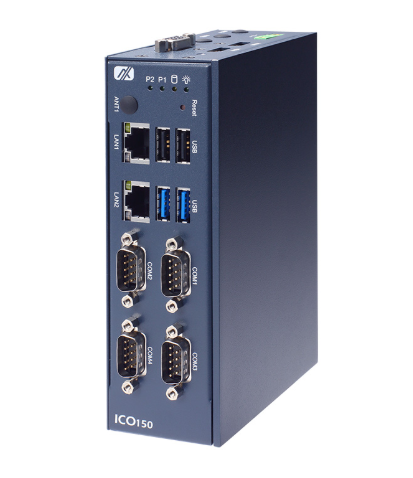

ICO150 DIN rail fanless embedded system front view with HDMI and dual LAN ports
ICO150 DIN rail fanless embedded system front view with HDMI and dual LAN ports
ICO150 embedded PC Intel Atom x7433RE showing 4 COM ports and USB interfaces

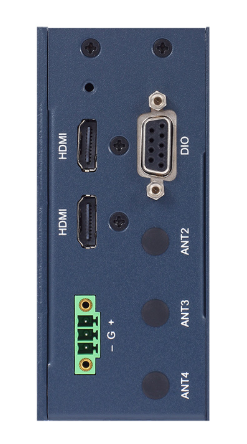

ICO150 compact embedded system rear panel with 2.5GbE LAN and power input

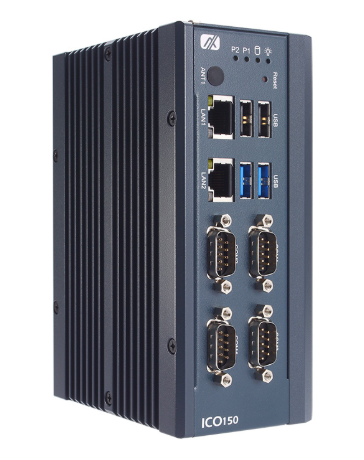

ICO150 fanless industrial computer side angle with DIN rail mounting design

Axiomtek ICO150 DIN Rail Fanless Embedded PC Intel x7433RE 4 COM 2.5GbE HDMI

UK Free Shipping UK Free Shipping over £249

Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: MNHO-225

MPN #: ICO150-x7433-AW

Many industrial controllers need a small, reliable computer that can run 24-hour without overheating. When a device gets too hot it can shut down, cause data loss, or require costly cooling fans. This problem hurts productivity and raises maintenance costs. The ICO150 DIN Rail Fanless Embedded PC Intel x7433RE 4 COM 2.5GbE HDMI removes the heat issue with a fan-less design, while delivering the processing power you need for edge applications.



Axiomtek ICO150 DIN Rail Fanless Embedded PC Intel x7433RE 4 COM 2.5GbE HDMI with ICO150

Meet the compact, rugged computer built for DIN-rail mounting. It runs on an Intel Atom x7433RE processor and offers four serial COM ports plus fast 2.5 GbE Ethernet. This industrial PC fan-less chassis stays cool in tight spaces, so you avoid downtime caused by cooling failures. If you need a stable platform for machine control, data acquisition, or remote monitoring, the ICO150 gives you the performance and reliability you expect.



Usages

The ICO150 fits easily into factory control panels, HVAC units, and transportation systems. Use it to run PLC interfaces, collect sensor data, or host a lightweight HMI. It works well in edge-computing gateways where space is limited and a fan-less design reduces vibration. The built-in HDMI output lets you attach a small display for on-site diagnostics or operator screens.



Benefits
    • Fan-less operation eliminates dust buildup and noise.
    • Four COM ports simplify connection to legacy equipment.
    • 2.5 GbE Ethernet provides fast, reliable network links.
    • Compact DIN-rail size saves valuable panel space.
    • Rugged aluminum and steel housing endures harsh environments.



Key Features
    • Intel Atom x7433RE, 1.5 GHz, 4-core, 9 W
    • Up to 16 GB DDR5-5600 SO-DIMM memory
    • 4 COM (RS-232/422/485) for serial devices
    • 2 USB 3.2 and 2 USB 2.0 ports
    • 2 RJ-45 2.5 GbE LAN with Intel I226-IT, TSN support
    • HDMI 1.4b output, 4K resolution, optional second HDMI
    • PCIe Mini Card slots for USB, SATA, or Wi-Fi expansion
    • M.2 B+M key 2242 slot for NVMe storage
    • TPM 2.0 security module
    • Wide input range 9-36 VDC, typical 12/24 V
    • IP30 rating, vibration resistance up to 3 Grms
    • Windows 11 IoT and Ubuntu 22.04 support



Specifications
Category Specification Details
CPU Intel Atom® x7433RE processor, 1.5 GHz/4C/9W
Chipset SoC integrated
System Memory 1 x DDR5-5600 SO-DIMM, up to 16 GB
COM 4 x COM (RS-232/422/485)
USB 2 x USB 3.2, 2 x USB 2.0
Ethernet 2 x RJ-45 2.5GbE LAN (Intel® I226-IT; TSN supported)
PoE N/A
CANbus N/A
Analog Input N/A
Digital I/O 1 x DIO (8-bit programmable DIO)
Display 1 x HDMI (1.4b, 4K); (2nd HDMI w/ FHD by option)
Expansion 1 x full-size PCIe Mini Card slot (USB signal) w/ SIM slot; 1 x half-size PCIe Mini Card slot (SATA or PCIe signal); 1 x M.2 B+M key 2242 (PCIe signal for NVMe)
Storage 1 x half-size PCIe Mini Card slot for mSATA (SATA or Wi-Fi selection); 1 x M.2 B+M key 2242 for NVMe
Others TPM 2.0
Power 1 x terminal block, 9 to 36 VDC, typical 12/24V
Watchdog Timer 255 levels, 1 to 255 sec.
Construction Extruded aluminum and heavy-duty steel, IP30
Operating Temp. AC: 0°C to +50°C (32°F to 122°F); AW: -40°C to +70°C (-40°F to 158°F)
Relative Humidity 10% to 95% relative humidity, non-condensing
Vibration 3 Grms, 5 to 500Hz, X/Y/Z direction; random, operating
Dimensions (WxDxH) AC: 48x110x155 mm (1.89"x4.33"x6.1"); AW: 65x110x155 mm (2.56"x4.33"x6.1")
Weight (net/gross) TBC
Certifications CE (EN 55032/EN 55024), FCC (FCC Part 15B), and UL
EOS Support Windows® 11 IoT, Ubuntu 22.04
Software Support Axiomtek EAPI
Mounting DIN-rail kit; Wall mount kit (optional)
