When you need to control liquid dosing, inaccurate flow meters can cause costly waste or product failure. Small errors add up, especially in pharmaceutical or food processing where exact amounts matter. The ICON TruFlo UltraFlo 5000 Ultrasonic Flow Meter Sensor solves this by giving you reliable, high-precision readings without moving parts, so you can trust every drop you measure.

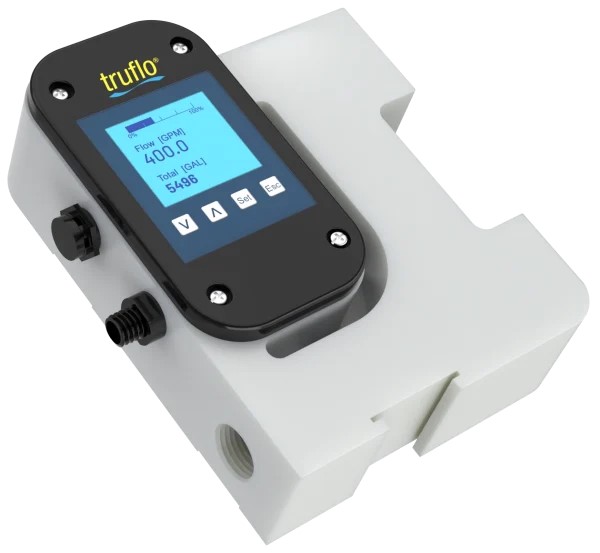

ICON TruFlo UltraFlo 5000 Ultrasonic Flow Meter Sensor with ICON
You want a flow sensor that never drifts and works in harsh environments. This device uses ultrasonic technology to measure flow rates from 0.005 to 6.3 GPM with 1 % accuracy. It fits directly into -inch, -inch, or 1-inch pipe and sends 4-20 mA or pulse signals to your controller. If you have been struggling with unreliable dosing, this sensor gives you the confidence to keep production running smoothly.
Benefits
The UltraFlo® 5000 Flow Meter Sensor utilizes ultrasonic technology to measure both conductive and non-conductive liquids and is an excellent choice for very corrosive liquids such as strong acids and alkalies. The UltraFlo® 5000 has no moving parts and can measure pulsating, dosing and metering flow applications. All parts that contact the liquid are made of corrosion-resistant Polysulfone. The UltraFlo® 5000 is characterized by its high measurement accuracy, repeatability and guaranteed long-life performance.
Key Features
- Simple to Install
- RS-485 Output, 4-20mA
- Display: Flow Rate + Totalizer
- 4-20mA Output + Pulse Relay
- IP67 Enclosure
- Negligible Pressure Drop
- Empty Pipe Alarm
Specifications
| General Specifications |
|
| Technology |
Ultrasonic (Sound Wave) |
| Accuracy |
±1.0% |
| Measuring Range (½") |
0.005 – 0.8 GPM (0.02 – 3.0 LPM) |
| Measuring Range (¾") |
0.02 – 1.6 GPM (0.09 – 6.0 LPM) |
| Measuring Range (1") |
0.08 – 6.3 GPM (0.3 – 24 LPM) |
| Maximum Pressure |
100 PSI (7 Bar), Non-Shock |
| Medium Temperature Range |
14 to 176°F (-10 to 80°C) |
| Protection Class |
NEMA 4X |
| Wetted Material |
Polyethylene (PE) |
| Pressure Drop |
Negligible (Full-Port Design) |
| Pulses per Second |
250 Pulses/sec |
| Flow Types |
Dosing |
| Electrical Specifications |
|
| Power Supply |
24 VDC |
| Electrical Connection |
M12 Quick Connect |
| Output Signals |
4-20mA + Pulse Relay |
| Display |
Bright LCD (Flow, Quantity, Bar Graph, Lighted) |
| Alarm Features |
Empty Pipe Alarm |
| Mechanical Specifications |
|
| Process Connection |
½" |
| Dimensions (L×W×H) |
168–171 × 147 × 50 mm |
| Weight |
1.4 – 1.6 lbs |
| Standards & Approvals |
|
| Compliance |
CE |
