Tired of screens that blur, flicker, or break when the environment gets tough? The iiyama ProLite TF1634MC-B8X, 1920 x 1080 pixels 25 ms Full HD 15.6" LED Monitor is a sturdy, touch-enabled display that lets you work, shop or play without worrying about dust, water or accidental hits. It is perfect for kiosks, retail tables and any place where a reliable interactive screen is a must.

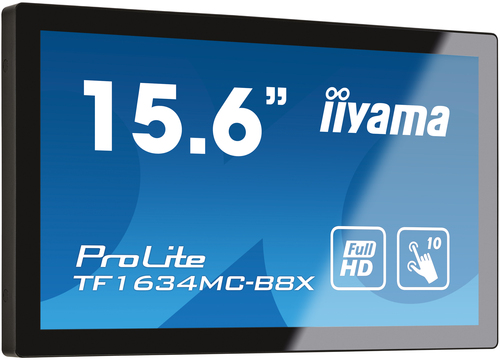

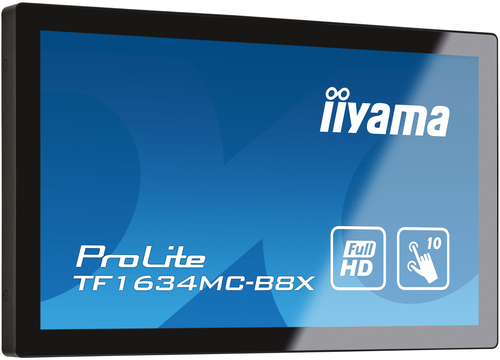

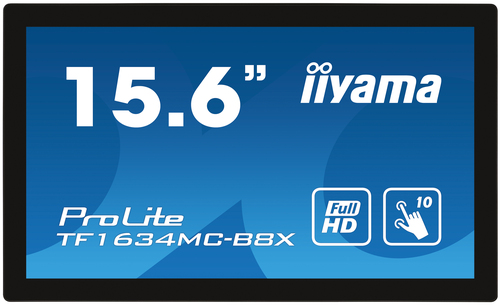

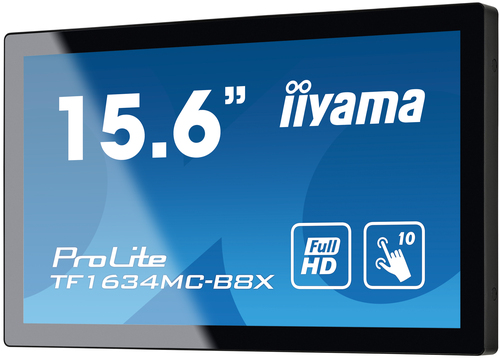

iiyama ProLite TF1634MC-B8X, 1920 x 1080 pixels 25 ms Full HD 15.6" LED Monitor
Many businesses struggle with screens that cannot survive harsh public spaces. A broken screen means lost sales and costly repairs. This problem matters because downtime directly hurts revenue and brand trust. The iiyama ProLite TF1634MC-B8X solves it with an IP65-rated, edge-to-edge glass design, projective capacitive touch and Full HD clarity, giving you a durable, vibrant and responsive interface that stays on the job.
Usages of iiyama
The monitor works well in retail kiosks where customers browse product info. It fits in museums for interactive exhibits, in hospitals for patient check-in stations, and in factories for machine-control panels. It also serves as a compact office display for multi-user collaboration or a teaching aid in classrooms. Anywhere you need a touch screen that can handle dust, water and constant use, this iiyama unit is ready.
Benefits
- Clear Full HD images make details easy to read, improving customer decisions.
- Touch-through-glass response feels natural, reducing learning time for users.
- IP65 protection keeps the screen safe from spills and dust, lowering maintenance costs.
- Lightweight (2 kg) and VESA-mountable, so installation is quick and flexible.
- 10-point multi-touch lets several people interact at once, perfect for collaborative tasks.
Key Features
- 15.6-inch IPS panel with 1920 1080 resolution.
- Projective capacitive touch technology built into edge-to-edge glass.
- 25 ms gray-to-gray response time for smooth motion.
- 450 cd/m brightness for bright indoor environments.
- 178 horizontal and vertical viewing angles.
- IP65 rating - fully dust and water resistant.
- 10 simultaneous touch points, multi-user support.

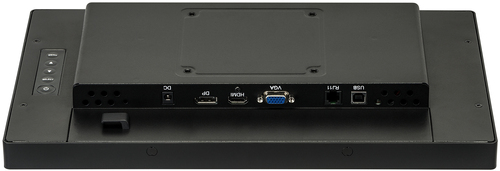

- HDMI, DisplayPort and VGA inputs plus USB touch port.

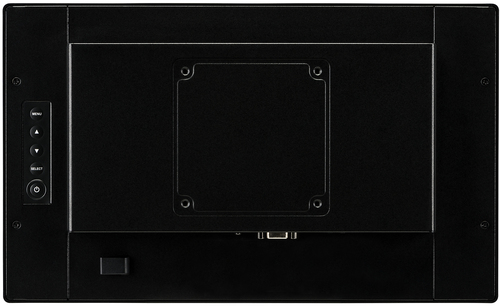

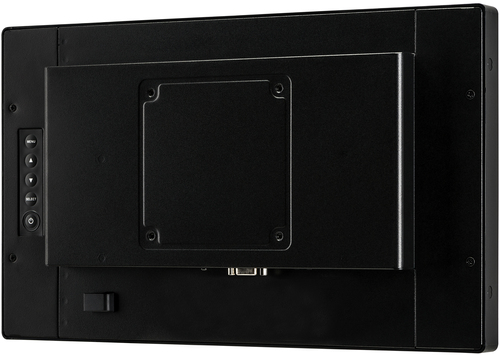

- VESA 100 100 mm mounting interface.
- External 12 V power supply with low standby consumption.
Specifications
| Display |
| Surface hardness |
7H |
| Display diagonal (metric) |
39.5 cm |
| Viewable size, vertical |
19.4 cm |
| Viewable size, horizontal |
34.4 cm |
| Horizontal scan range |
30 - 84 kHz |
| Pixel pitch |
0.179 x 0.179 mm |
| Display number of colours |
16.2 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (typical) |
700:1 |
| Screen shape |
Flat |
| Response time measurement type |
GTG (Gray to Gray) |
| Response time |
25 ms |
| Display brightness |
450 cd/m² |
| Display brightness (typical) |
450 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen type |
Multi-user |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6") |
| Performance |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
| Built-in microphone |
No |
| Built-in camera |
No |
| Design |
| Glass thickness |
2.4 mm |
| Front bezel colour |
Black |
| Product colour |
Black |
| Ports & interfaces |
| HDCP |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Touch port |
Yes |
| Ergonomics |
| Number of OSD languages |
7 |
| On Screen Display (OSD) |
Yes |
| Wall mountable |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
391713 |
| Power supply type |
External |
| AC adapter output voltage |
12 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (typical) |
18 W |
| Energy consumption (SDR) per 1000 hours |
12 kWh |
| Energy efficiency class (SDR) |
F |
| Weight & dimensions |
| Weight (without stand) |
2 kg |
| Height (without stand) |
230.5 mm |
| Depth (without stand) |
46 mm |
| Width (without stand) |
381 mm |
| Weight (with stand) |
2 kg |
| Height (with stand) |
230.5 mm |
| Depth (with stand) |
46 mm |
| Width (with stand) |
381 mm |
| Packaging data |
| Package weight |
3.9 kg |
| Package height |
365 mm |
| Package depth |
455 mm |
| Package width |
455 mm |
| Packaging content |
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB |
| Sustainability |
| Sustainability certificates |
ErP |
| Other features |
| Compliance certificates |
CE, REACH, RoHS, WEEE |
| Display viewable area (HxV) |
344.2 x 193.5 mm |
| Package weight |
3.9 kg |
| Placement supported |
Horizontal/Vertical |
| International Protection (IP) code |
IP65 |
